Plan 69609AM
Unique Dogtrot House Plan
Heated S.F.
2,204
Beds
3 - 4
Baths
2.5 - 3.5
Stories
2
Cars
2
Floor Plan

Plan 69609AM

Main Level
slide image 0

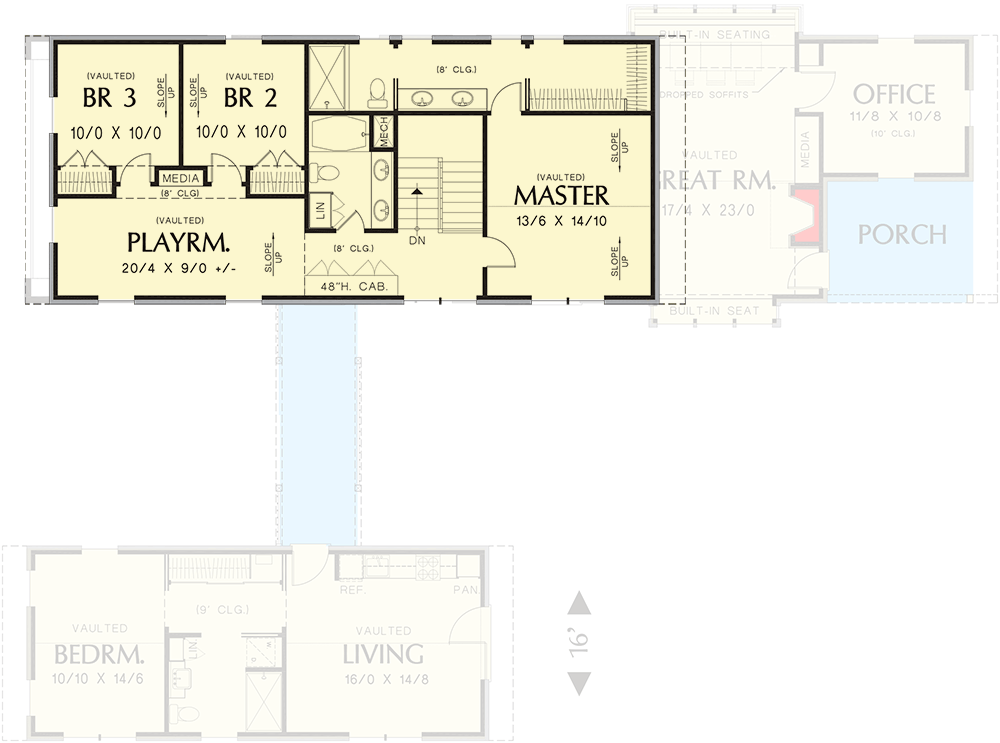

2nd Floor
slide image 1

Plan 69609AM

1-800-854-7852

1-262-521-4596

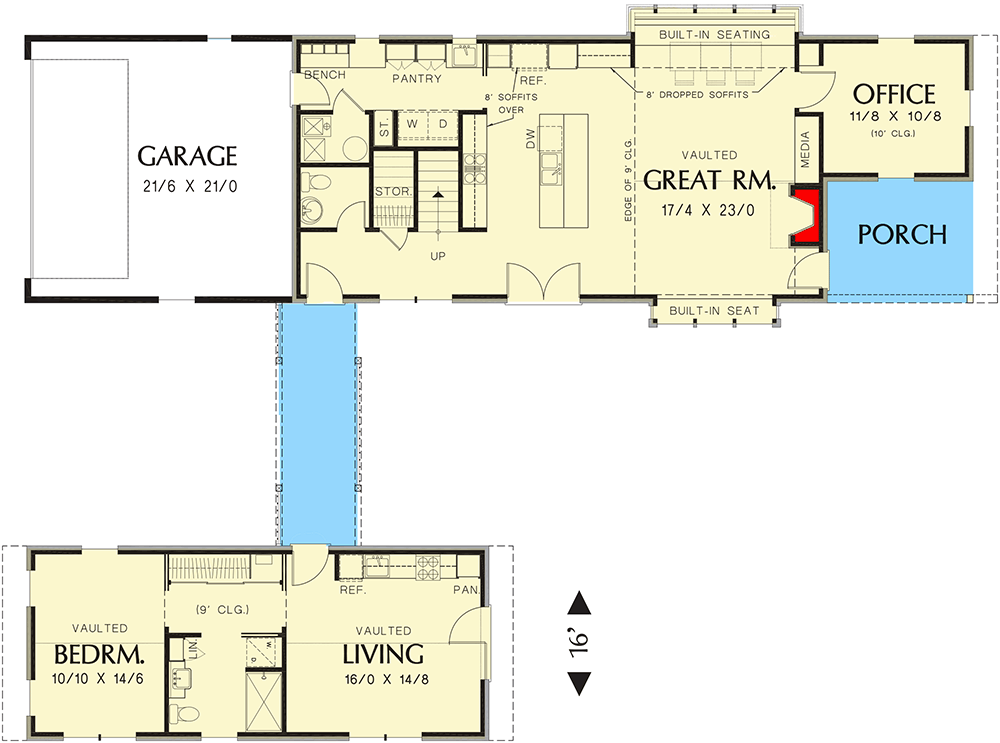

Main Level
floor plan image Main Level

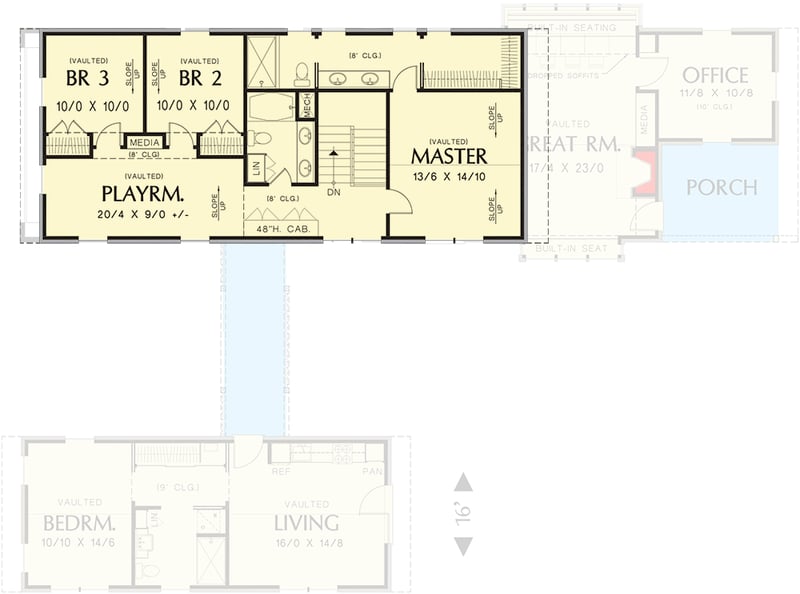

2nd Floor
floor plan image 2nd Floor
Plan Details
  • A covered mid-section connects the main living quarters from the smaller living unit in this dog trot house plan. The additional living could provide you with extra income if used as a rental or as a yet to land the perfect job, or when it's time to help an elderly parent there's quarters for a boomerang kid or in-laws.
  • Inside the large main living space, each function is given its own space through varying ceiling heights. The long built-in banquette seating for the dining space provides for flexible seating arrangements. The large island in the open kitchen also has seating.
  • The office locate off the main activity space giving you a quiet space to enjoy.
  • In the utility corridor between the garage and the kitchen you'll find a built-in bench with storage for each household member, generous pantry cabinets, along with a laundry sink and washer and dryer.
  • There is easy access to the outdoor living areas with doors right off the kitchen and a covered porch off the great room.
  • Upstairs there are two bedrooms located off an activities room, a place for kids to play, watch TV and do hobbies. To the rear is the vaulted master suite with a large walk-in closet and double vanities.
  • Related Plan: Get a more traditional dogtrot house with house plan 92318MX.
What's Included

  • Exterior Elevations: In addition to the front exterior, your drawing set will include drawings of the rear and sides of your house as well. These drawings give notes on exterior materials and finishes. Particular attention is given to cornice detail, brick and stone accents, or other finish items that make your home unique.
  • Foundation Plan: The foundation page dimensions, concrete walls, footings, pads, posts, beams, bearing walls, and any stepped foundation information along with any retaining wall info (schematic only). A typical wall section for the home is also usually included on this page (if not, it is elsewhere in your plan set, as space allows). If your plan features a poured concrete slab rather than a basement or crawlspace, the foundation page shows footings and details for the slab, and includes plumbing locations.
  • Floor Plan(s): Exterior and interior wall framing, and windows/doors are dimensioned. Room sizes are indicated and any beams, posts and structural bearing points are called out. The floor plans include an electrical legend, and electrical fittings, lights and outlets are shown. Floor Plans will also indicate cross–section details (provided on the sections page) and show any special framing details applicable to the design. Cabinet elevations are included for kitchen and bathrooms; some designs feature cabinet elevations for design–related built–ins too.
  • Building Sections: Building sections show changes in floor, ceiling, or roof height, and the relationship of one level to another. Our section pages also show how the stairs are calculated (if there are some!) and depict roof and foundation members. We try and draw sections to show the most useful information — choosing locations where there are elements you or your contractor might need clarification on.
  • IMPORTANT NOTE:  Sections and elevations depict the standard foundation only.
  • Roof Plan: Roof framing or truss directions are shown, slope directions are indicated and structural members are sized and called out if applicable. The gravity loads used to calculate the rafters, beams and posts are indicated , and we also show gutters, downspouts, and any roof venting required for your home.
  • Notes and Details Page(s): Your home comes detailed to meet the requirements of the latest adopted version of the ‘International Residential Code’, and our notes and details pages outline all the elements applicable to the design of your home. Compliance with further standards may need to be incorporated into your plan set, depending on the requirements of your building department — these are usually done locally.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,204 sq. ft.

1st Floor

1,169 sq. ft.

2nd Floor

1,035 sq. ft.

Apartment

608 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

80' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Dogtrot House Plans

Square Footage Breakdown

Total Heated Area

2,204 sq. ft.

1st Floor

1,169 sq. ft.

2nd Floor

1,035 sq. ft.

Apartment

608 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

2 or 3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

80' 0"

Max Ridge Height

26' 4"

Garage

Type

Attached

Area

484 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Bonus Room

Butler Walk-in Pantry

Home Office

In-Law Suite

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Dogtrot House Plans
