Plan 66121WE
Unique Mediterranean Design
Heated S.F.
4,198
Beds
2 - 4
Baths
4.5+
Stories
2
Cars
2
Floor Plan

Plan 66121WE

Main Level
slide image 0
2nd Floor
slide image 1

Plan 66121WE

1-800-854-7852

1-262-521-4596

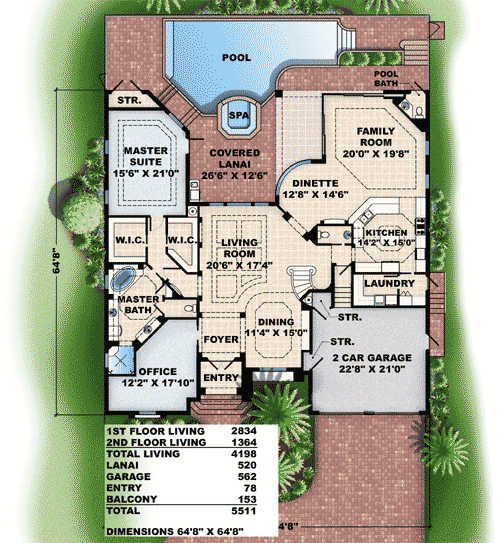

Main Level
floor plan image Main Level

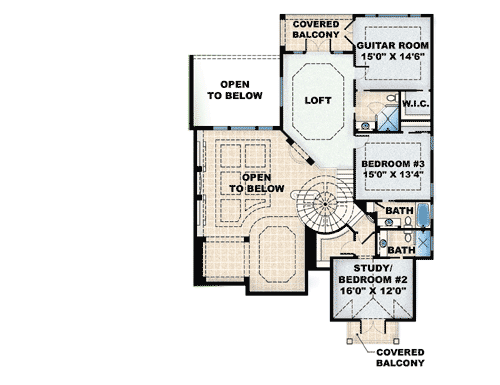

2nd Floor
floor plan image 2nd Floor
Plan Details
  • An unusual floor plan with special ceiling treatments throughout, give this Mediterranean home its flair.
  • A 16'2" high foyer leads to both the living and dining rooms with tray ceilings.
  • Work from home in peace in the secluded first floor office that offers front-facing views.
  • Family and friends will congregate in the informal area that is all open.
  • An elaborate curved staircase leads you up to a landing where another study could become bedroom 2.
  • Climb to the upper level where you will find a loft that opens to a balcony and two additional bedrooms, each with its own bath.
What's Included
Elevations - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Material Labels
  • Floor-to-Floor Heights
  • Roof Slope Indicators
Floor Plans - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Door and Window Sizes
  • Completely Dimensioned Floor Plan
  • Room Labels and Interior Room Sizes
Electrical Layouts
  • Building Section Markers
  • All Electrical Outlets, Fixtures, and Switching
Foundation Plan - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor and Deck Joist Size and Spacing
  • Electrical Locations (if applicable)

Roof Design Plan - Drawn at 1/8″ to 1/4″ = 1′-0″scale, and Includes:
  • All Beam and Header Heights and Locations
  • All Hips, Gables, Ridges, and Valleys
  • Building Section Markers
Building Sections - Drawn at 1/8″ to 1/4″ = 1′-0″ Scale, and Includes:
  • Floor Joist Size and Spacing
  • Floor-to-Floor Heights
  • Non-Typical Plate Heights Indicated
Typical Wall Sections - Drawn at 1/8″ to 1/2″ = 1′-0″ Scale, and Includes:
  • All Labels Indicating Wall Construction
  • Foundation Wall Thickness and Reinforcing
  • Insulation Type and Thickness
Miscellaneous Notes and Details
  • Miscellaneous General Notes
  • Stairway details (if applicable)
We do provide a slab plan, however, the structural foundation plan is to be provided by the structural engineer selected by your builder or yourself. This is done because our slab plan cannot anticipate the variations in soil, footings and other conditions per your specific site. We provide the design of the roof as well, however, the truss layouts need to be provided by a truss engineer or your lumber company. Your builder can provide these contacts for you.  Please keep in mind that these are additional expenses outside of the cost of the original plan that you purchase from us.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,198 sq. ft.

1st Floor

2,834 sq. ft.

2nd Floor

1,364 sq. ft.

Entry

78 sq. ft.

Balcony / Veranda

153 sq. ft.

Lanai

520 sq. ft.

Beds/Baths

Bedrooms

2, 3, or 4

Full bathrooms

4

Half bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Optional Type(s)

2x6

Dimensions

Width

64' 8"

Depth

64' 8"

Max Ridge Height

35' 2"

Garage

Type

Attached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Second Floor

10'

Room

Ceiling Type

Height

Family Room

Tray

10' 8''

Master Bedroom

Tray

12' 0''

Foyer

Flat

16' 2''

Master Bath

Tray

11' 0''

Dining Room

Tray

17' 2''

Lanai

Flat

21' 4''

All Bedrooms

Flat

10' 0''

Loft

Tray

10' 0''

Kitchen

Tray

10' 8''

Living Room

Tray

21' 4''

Entry

Flat

21' 4''

Roof Details

Primary Pitch

6 on 12

Framing Type

Truss

Architectural Style

Florida

Mediterranean

Special Features

Home Office

Laundry - Main Level

Library/Study

Loft

Master Suite - 1st Floor

Plan Collections
