Plan 23592JD
Unique Shingle Style House Plan
Heated S.F.
4,447
Beds
4 - 5
Baths
4
Stories
2
Cars
3
Floor Plan

Plan 23592JD

Main Level
slide image 0
2nd Floor
slide image 1

Plan 23592JD

1-800-854-7852

1-262-521-4596

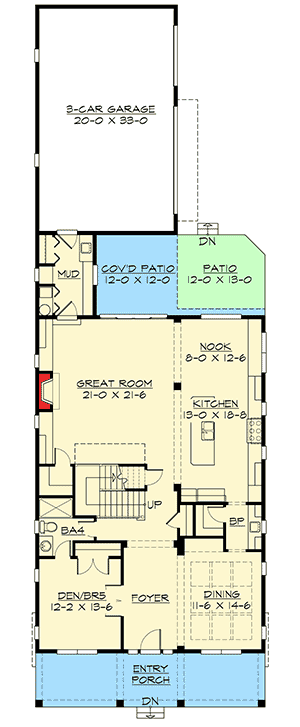

Main Level
floor plan image Main Level

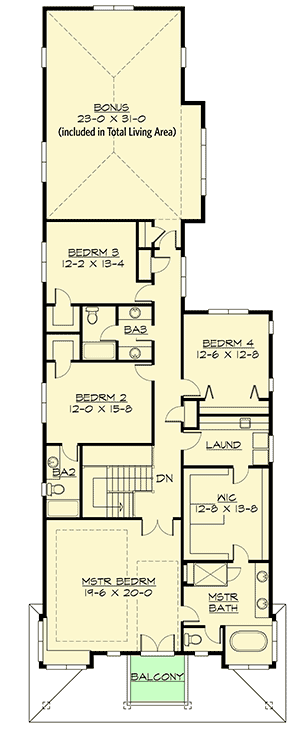

2nd Floor
floor plan image 2nd Floor
Plan Details

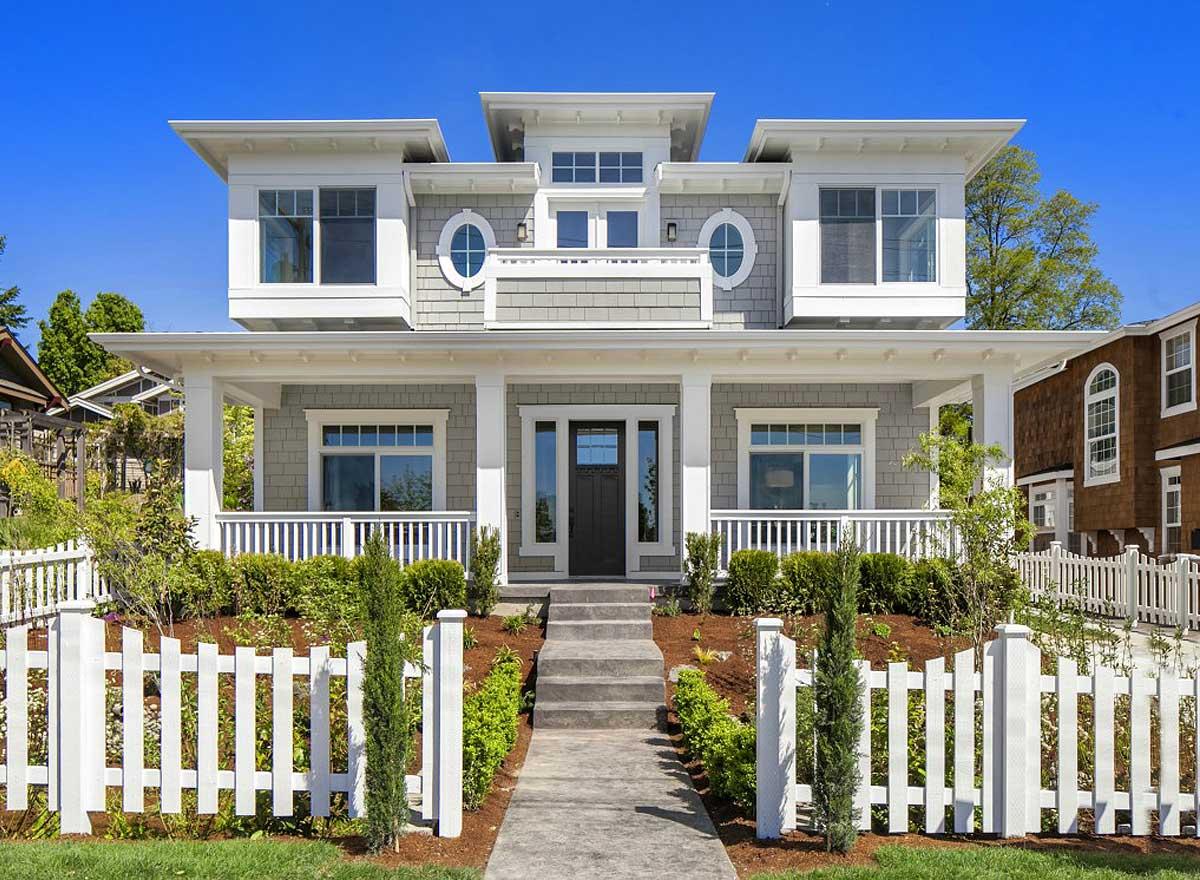

  • With a charming and distinctive exterior, the inside of this Shingle style house plan deserves special mention too.

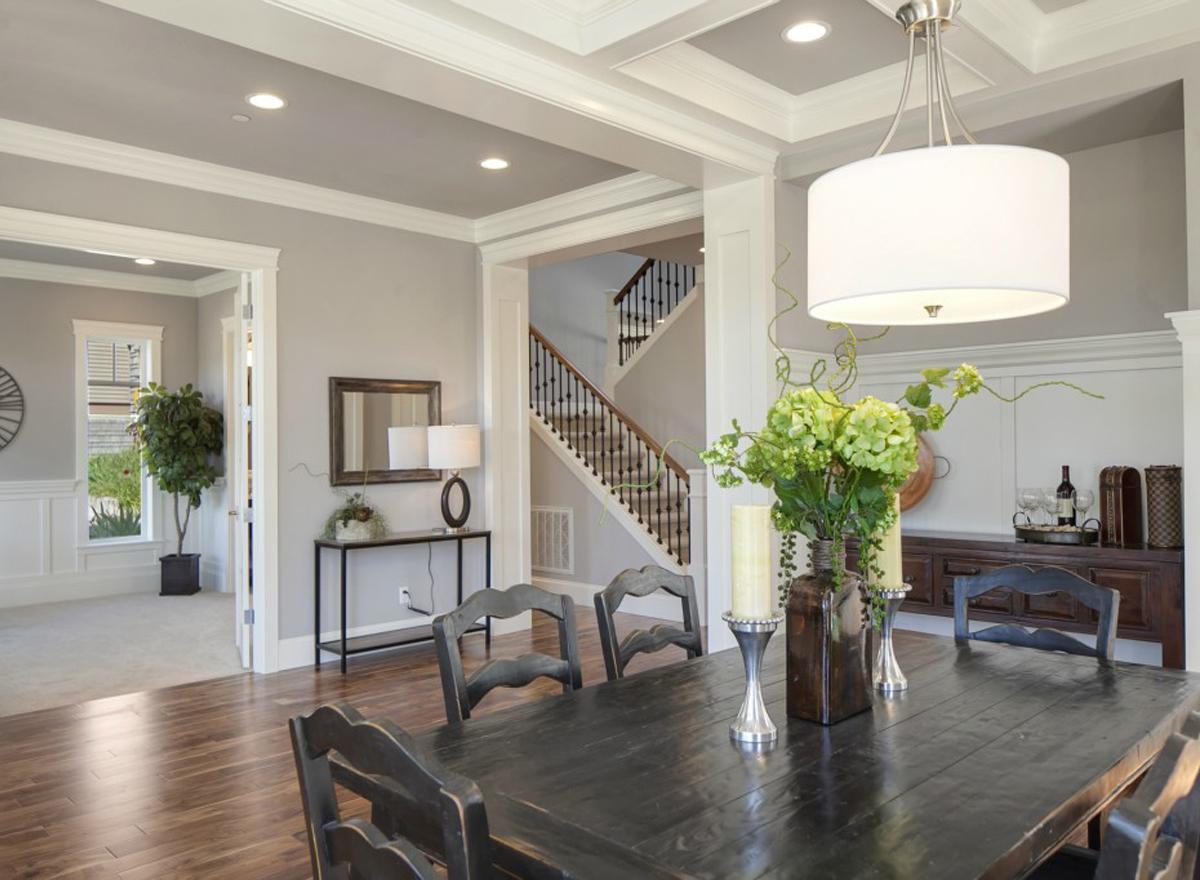

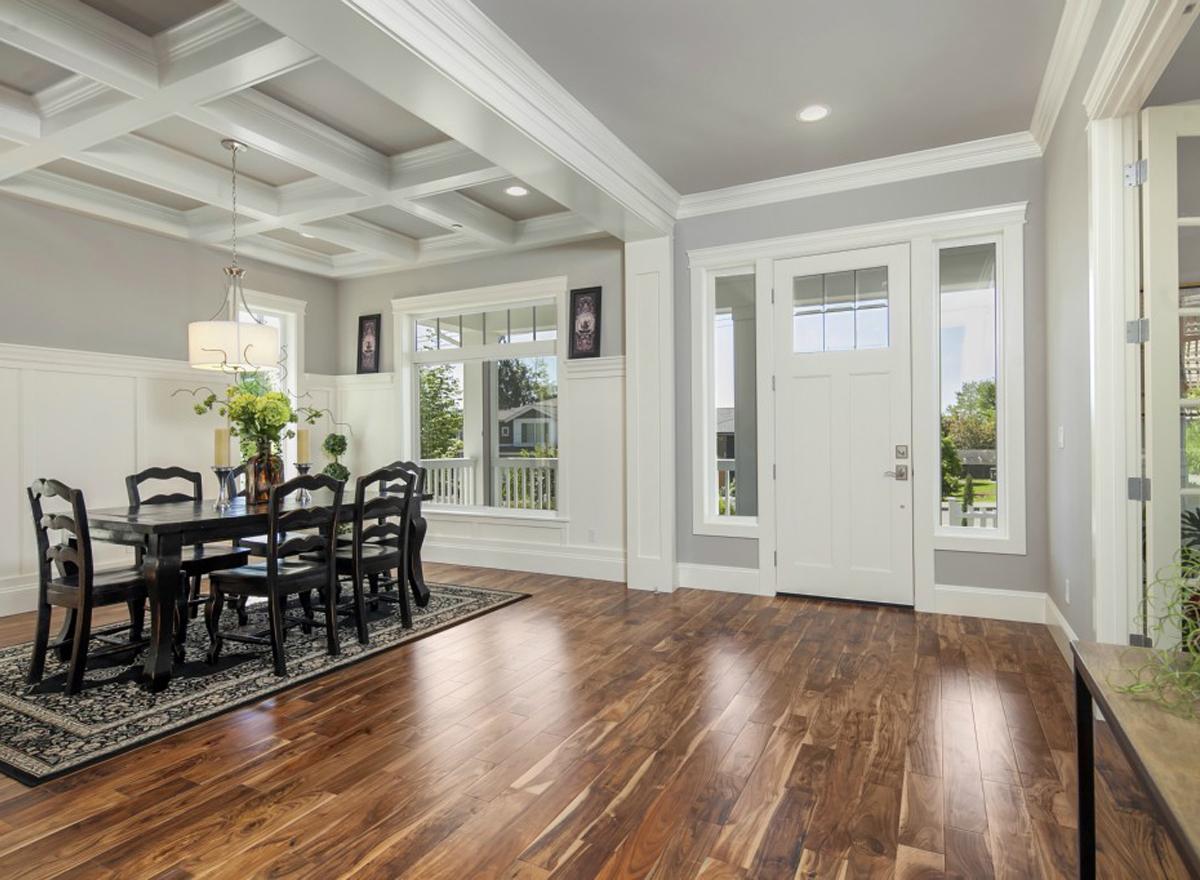

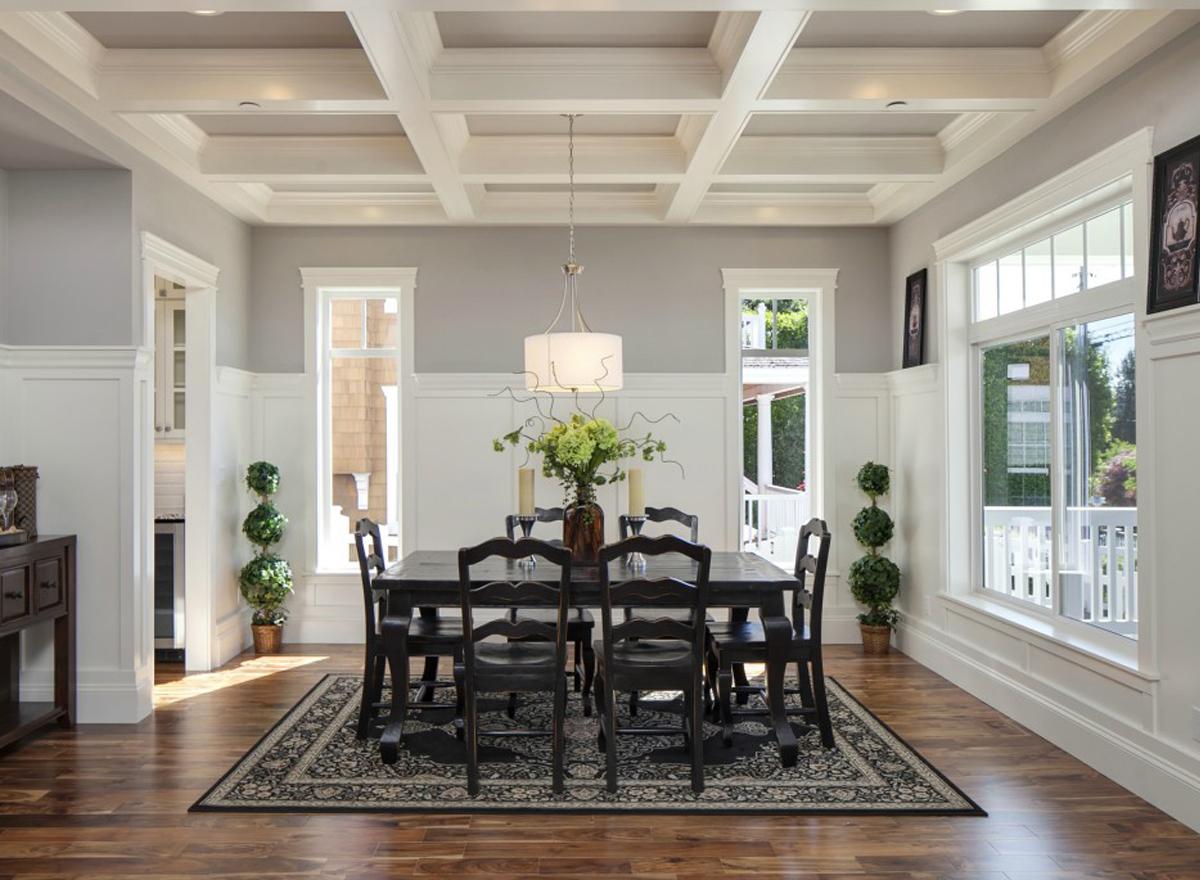

  • The gorgeous formal dining room has a stunning coffered ceiling and is wide open to the foyer, making it feel even larger.

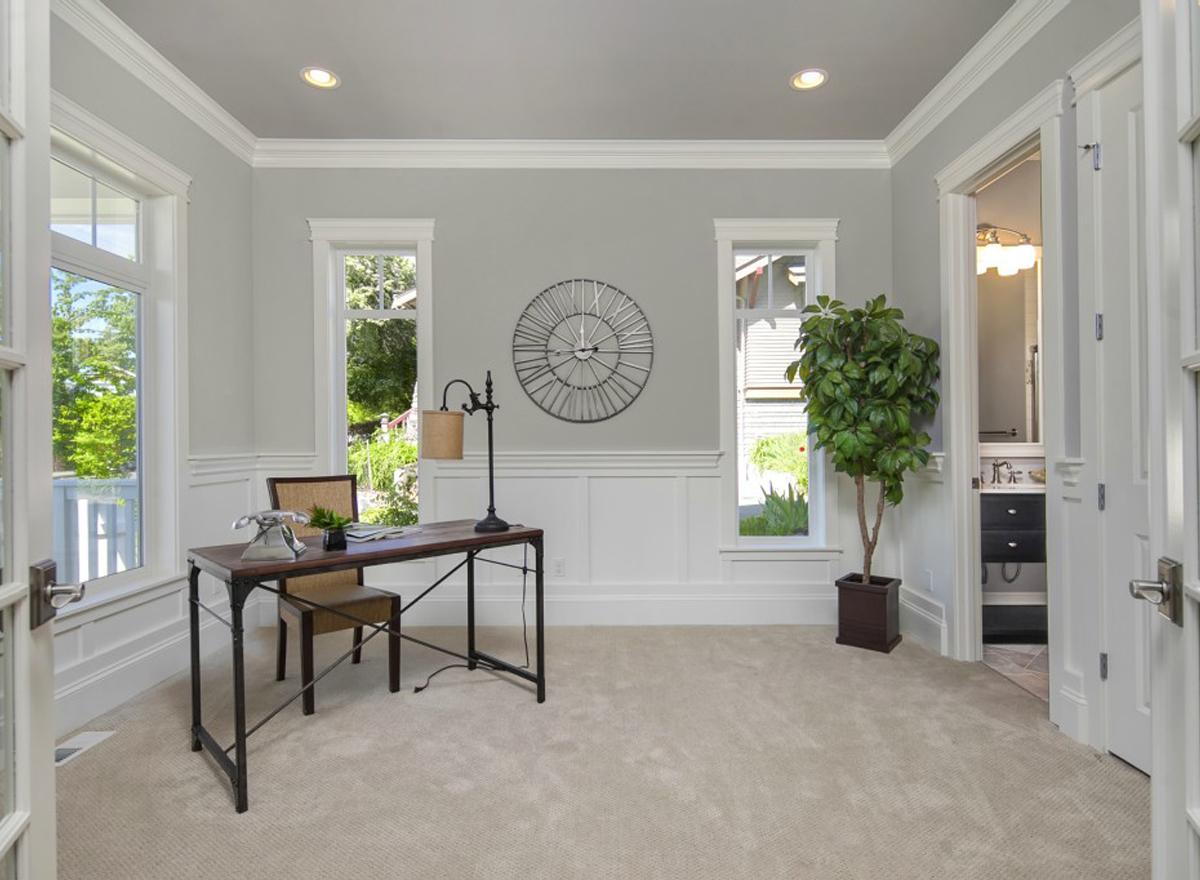

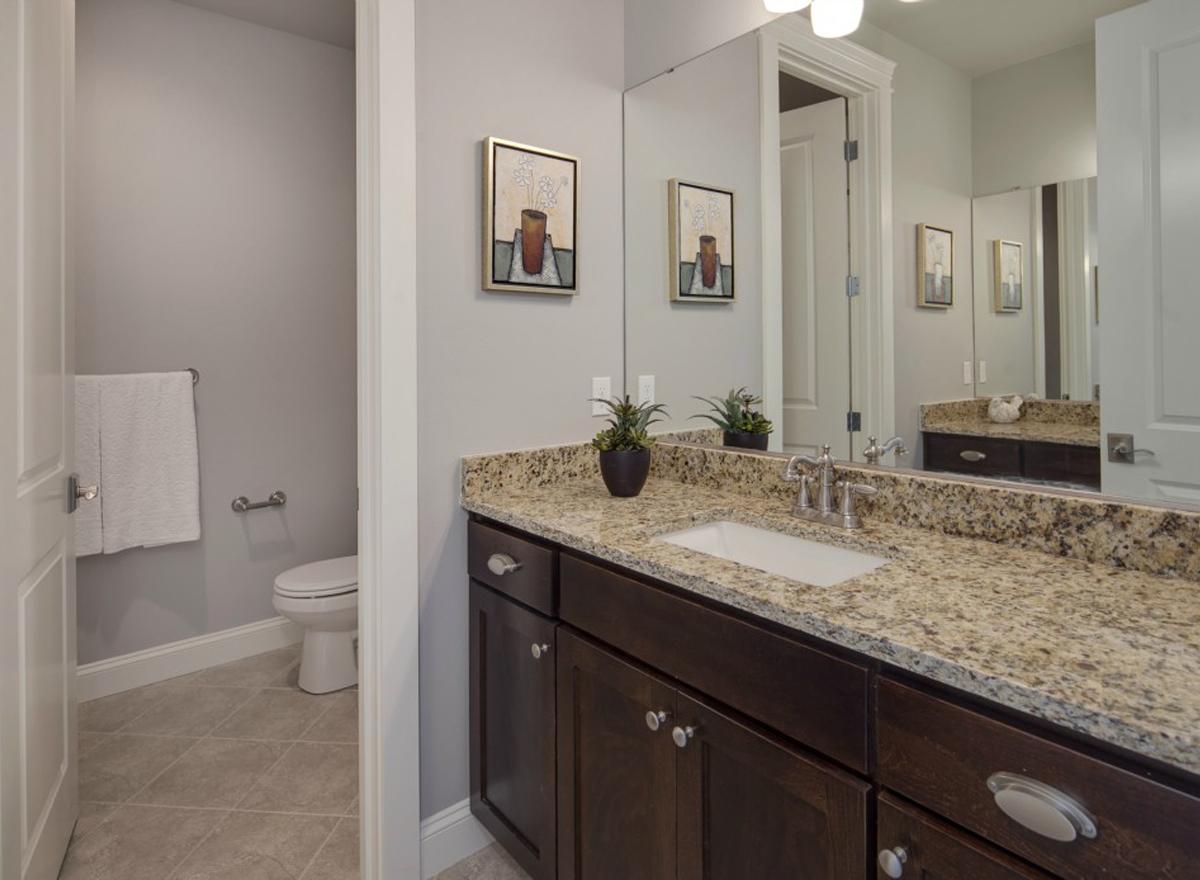

  • Use the den as a fifth bedroom if desired, as it comes with a closet and direct access to a bathroom.

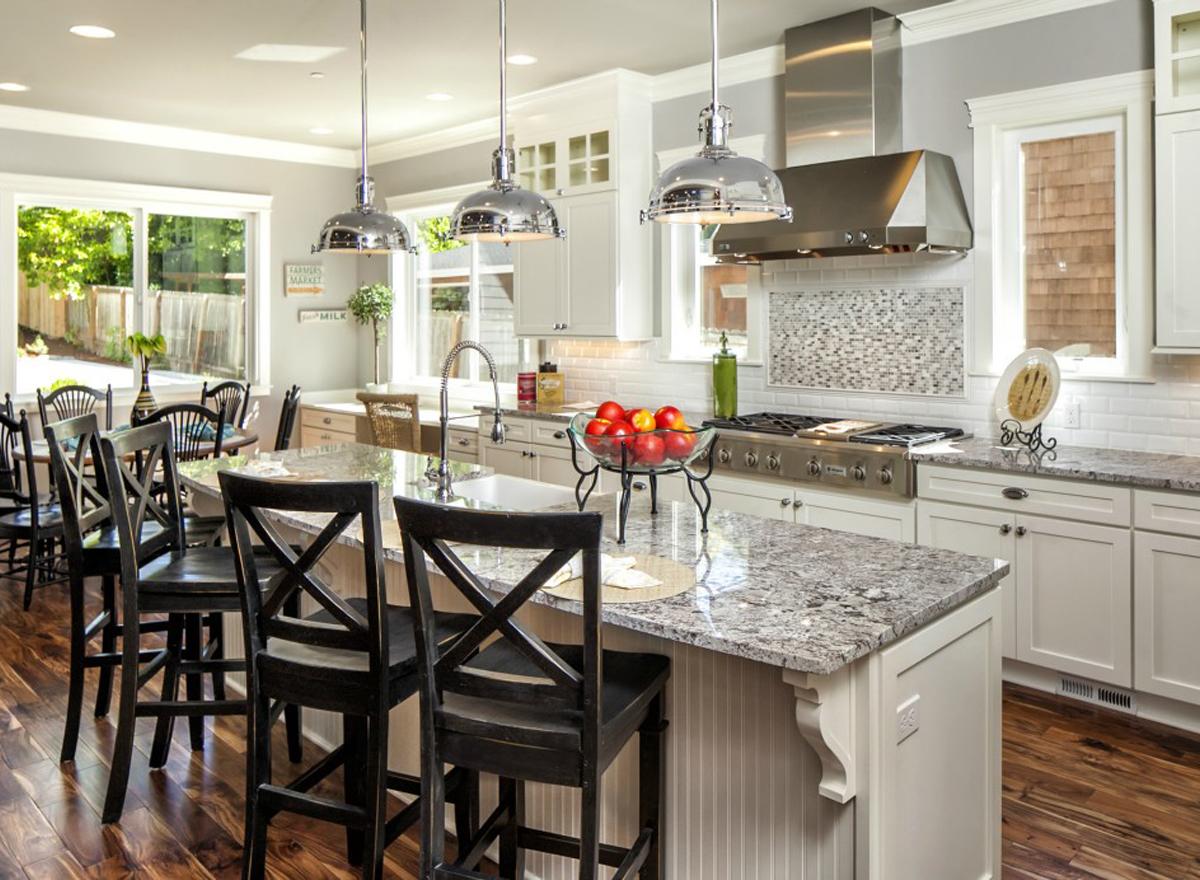

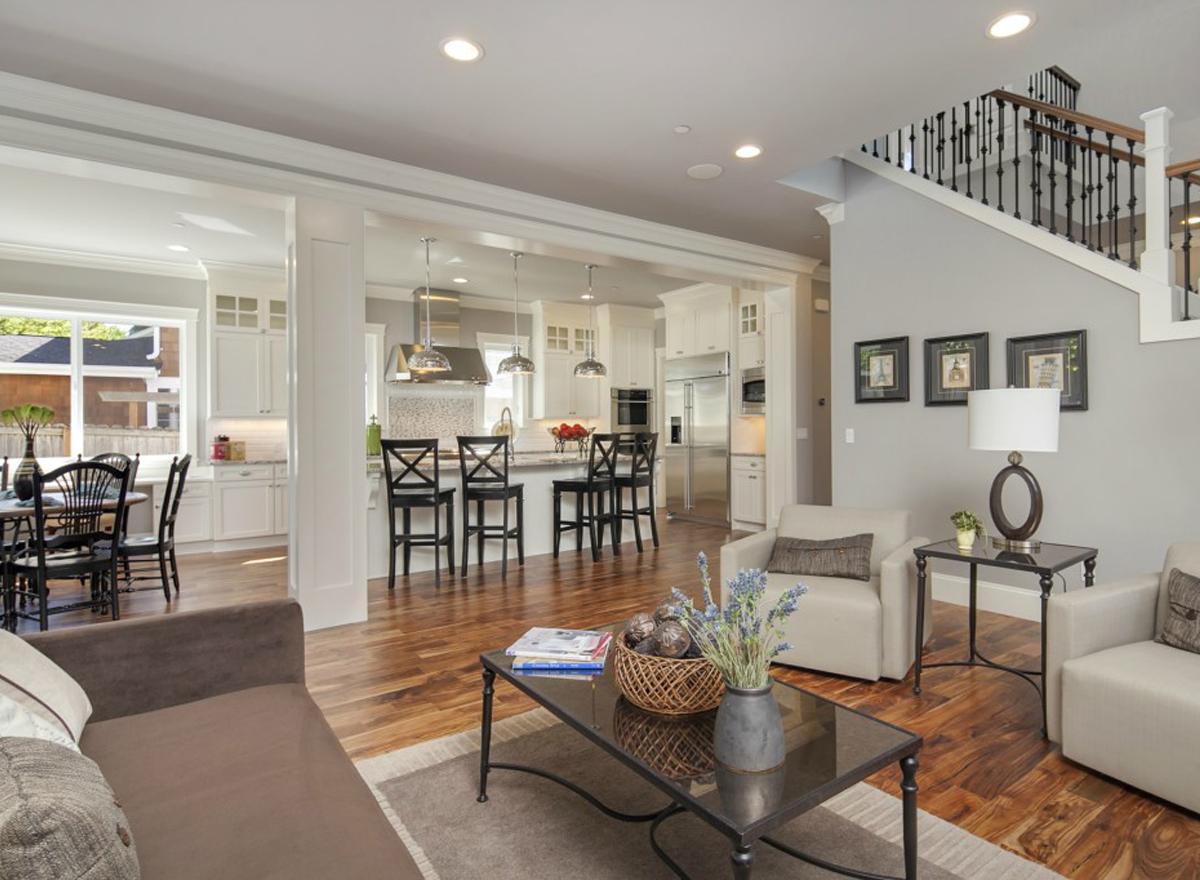

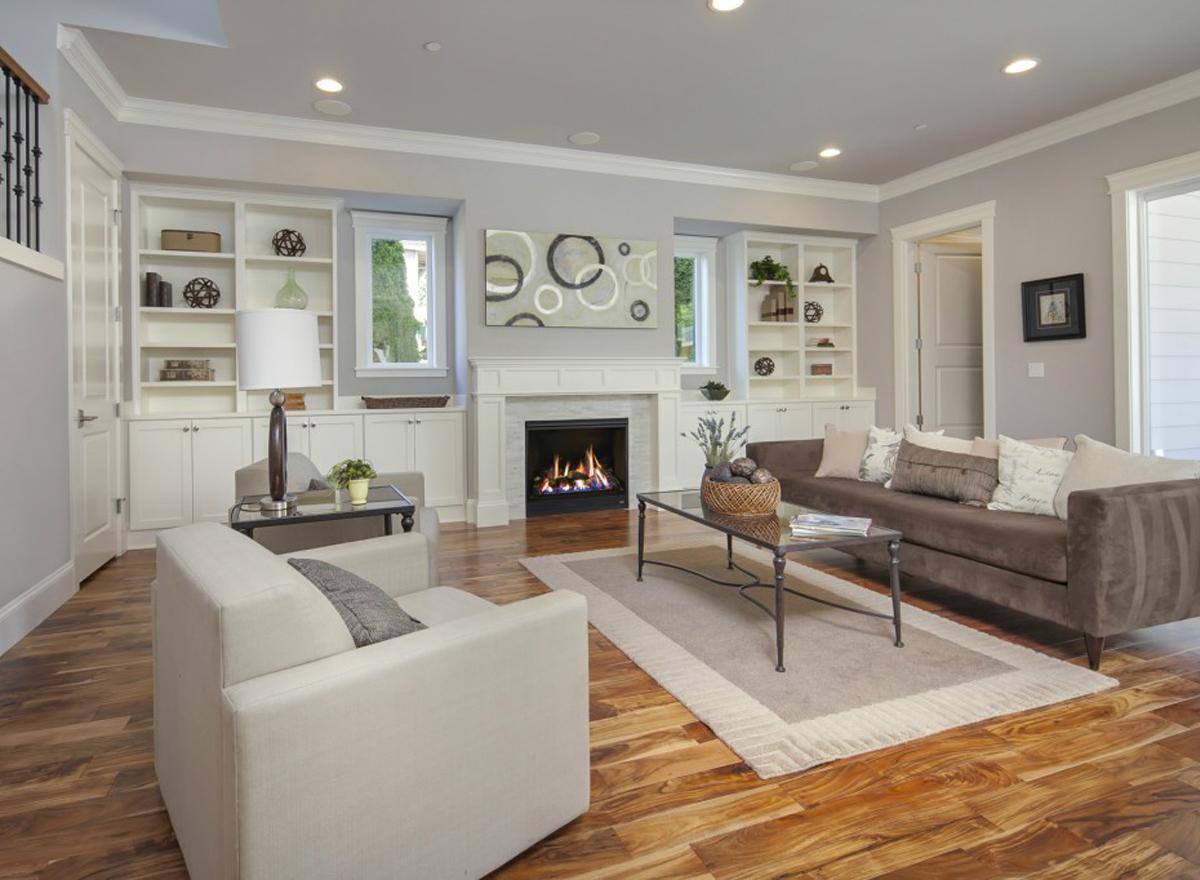

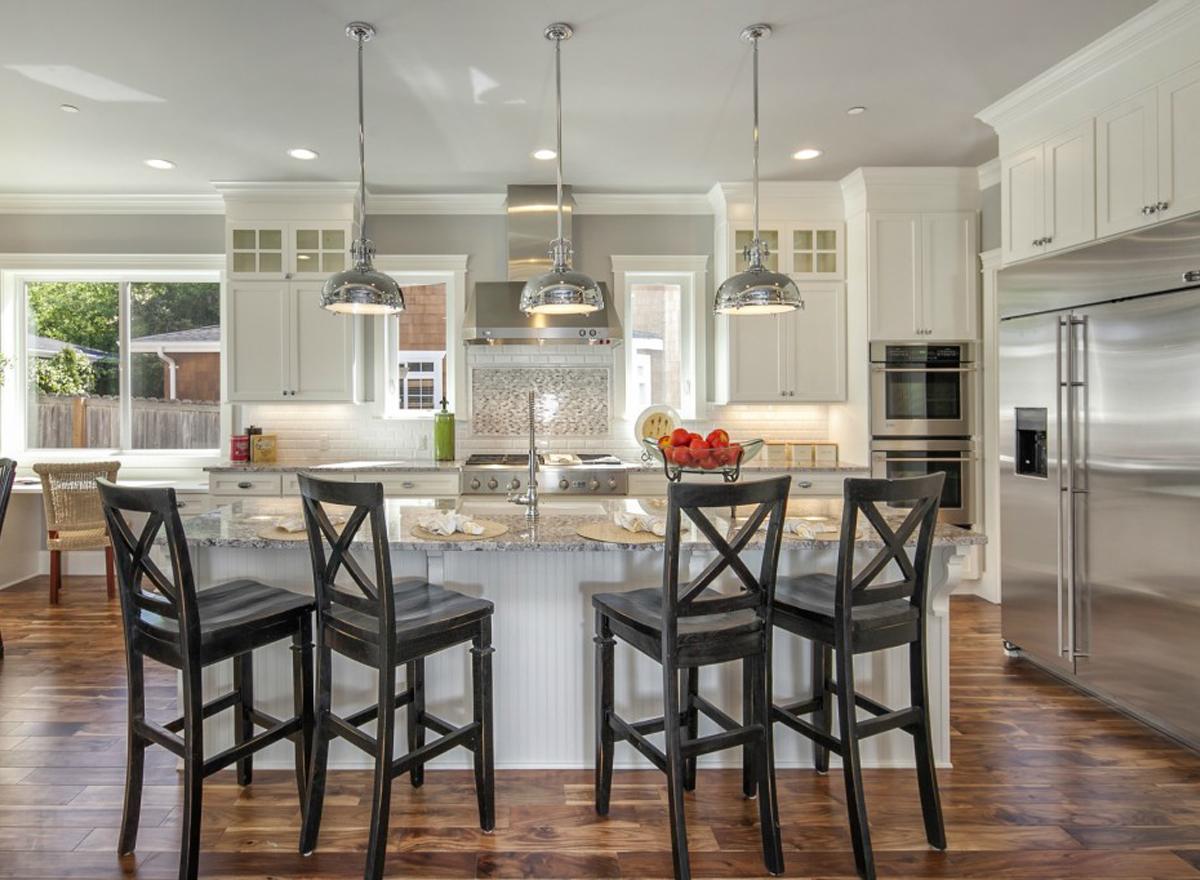

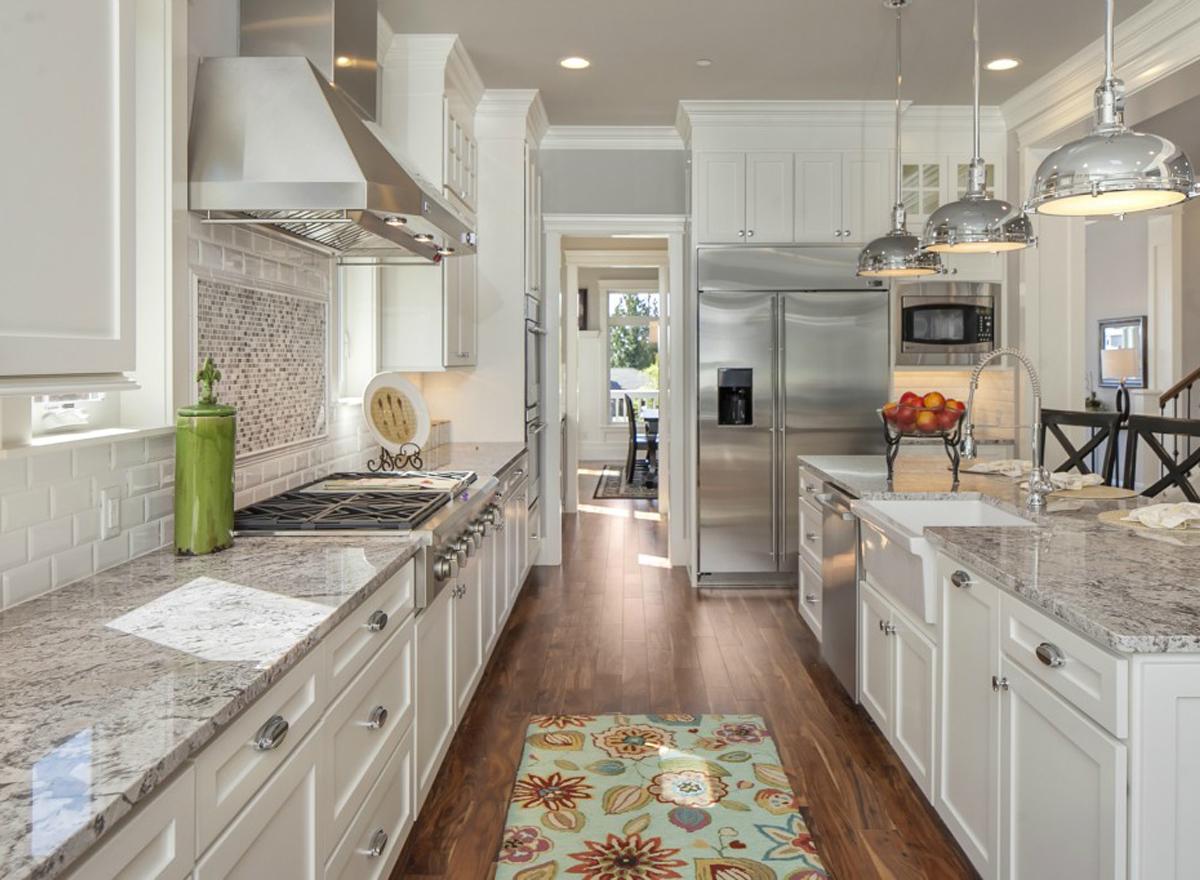

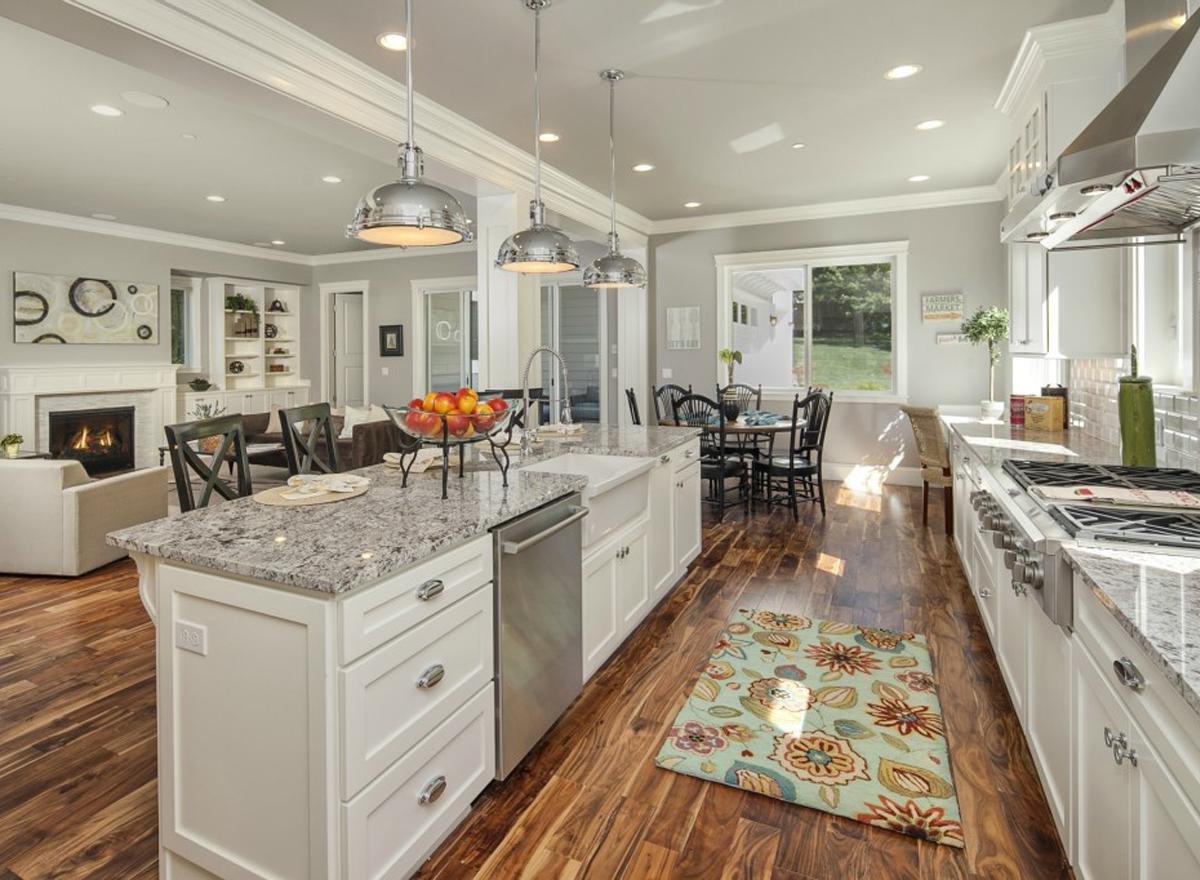

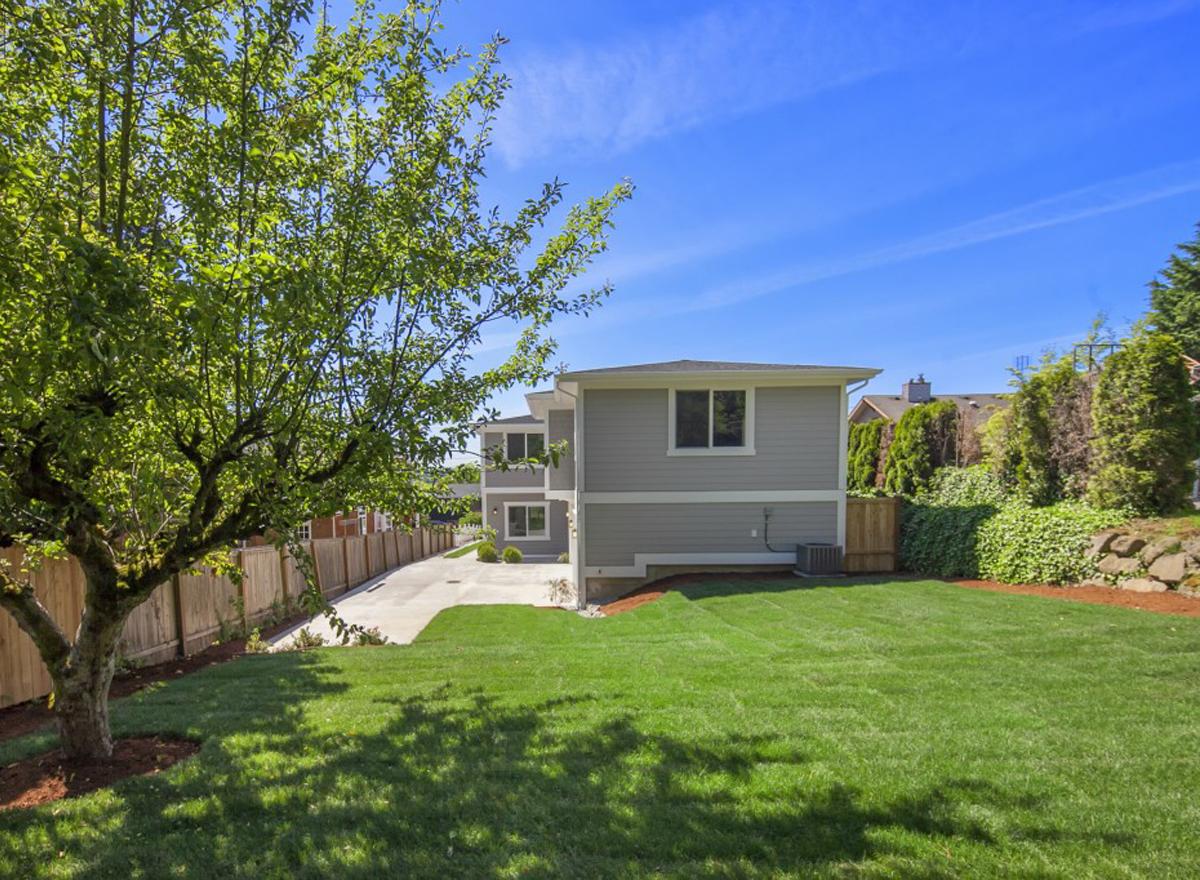

  • The main hub of the house is the informal area in back where the open layout flows from kitchen to nook to great room.

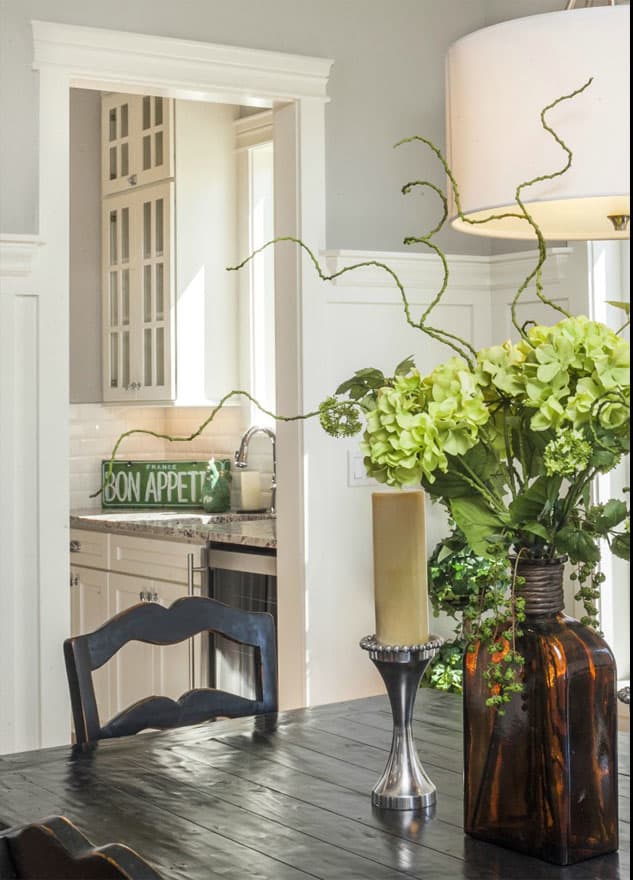

  • Entertain easily with both a butlers pantry and a walk-in storage pantry.

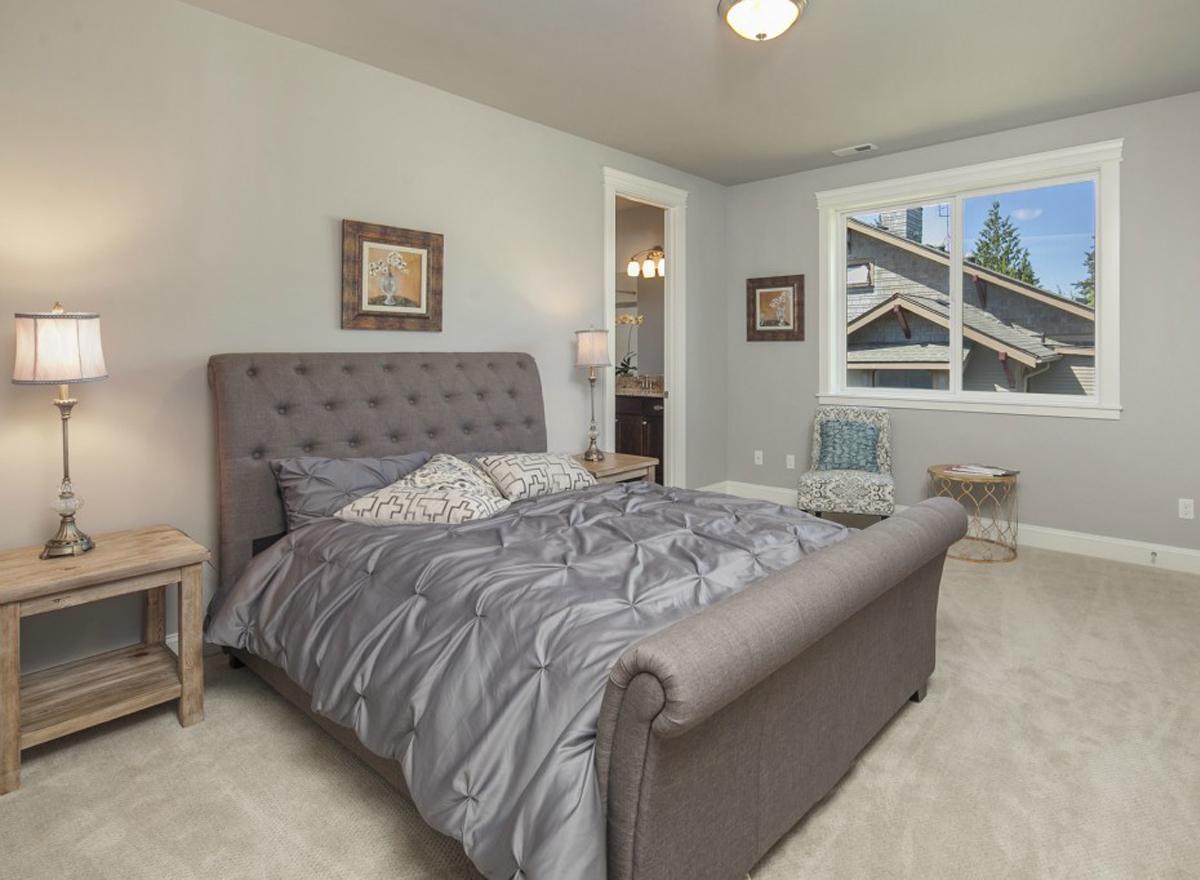

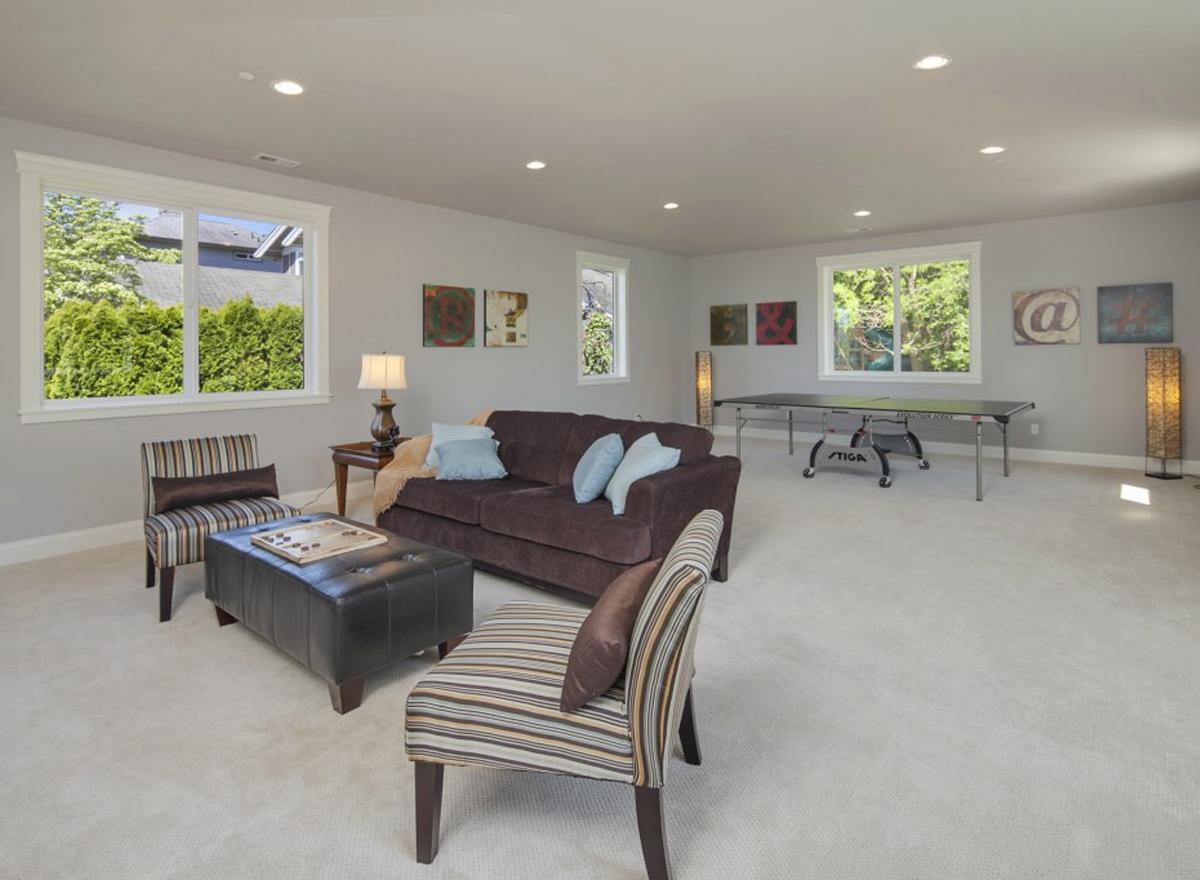

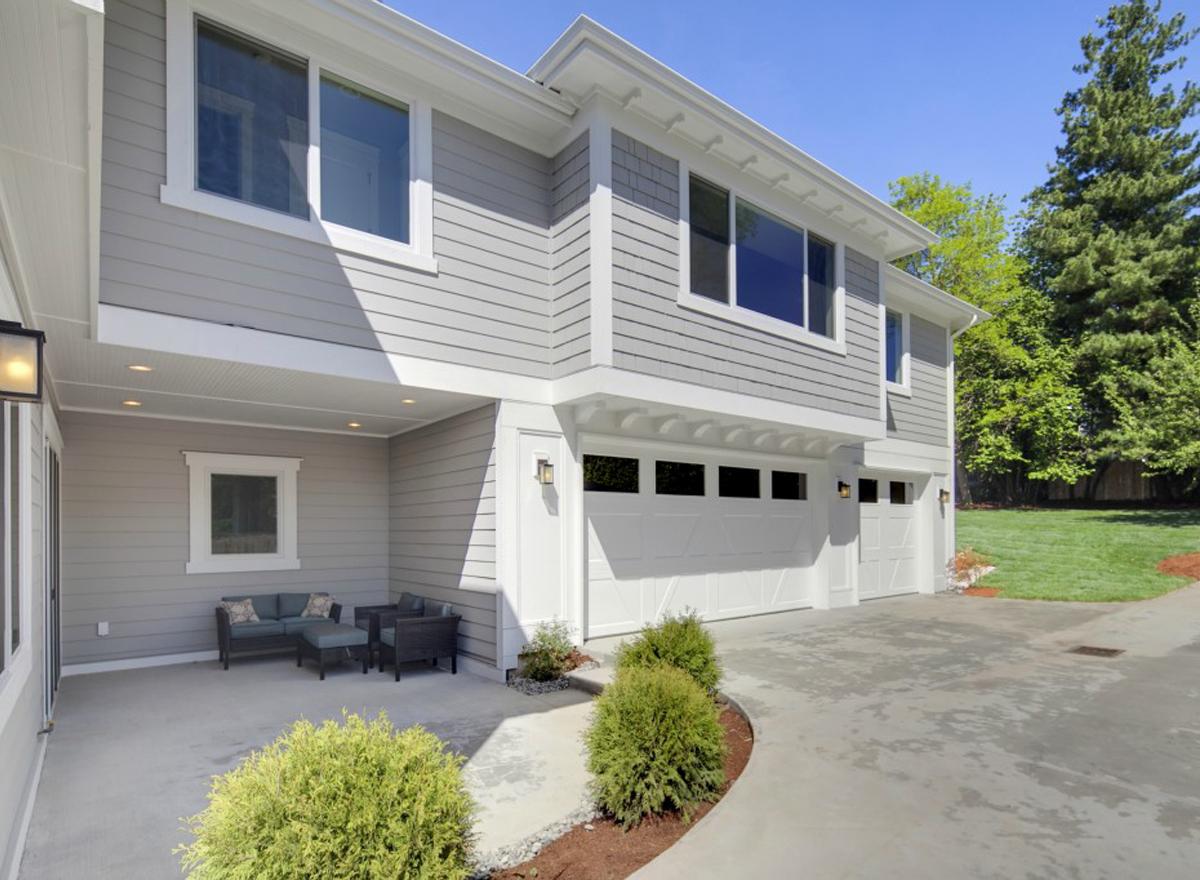

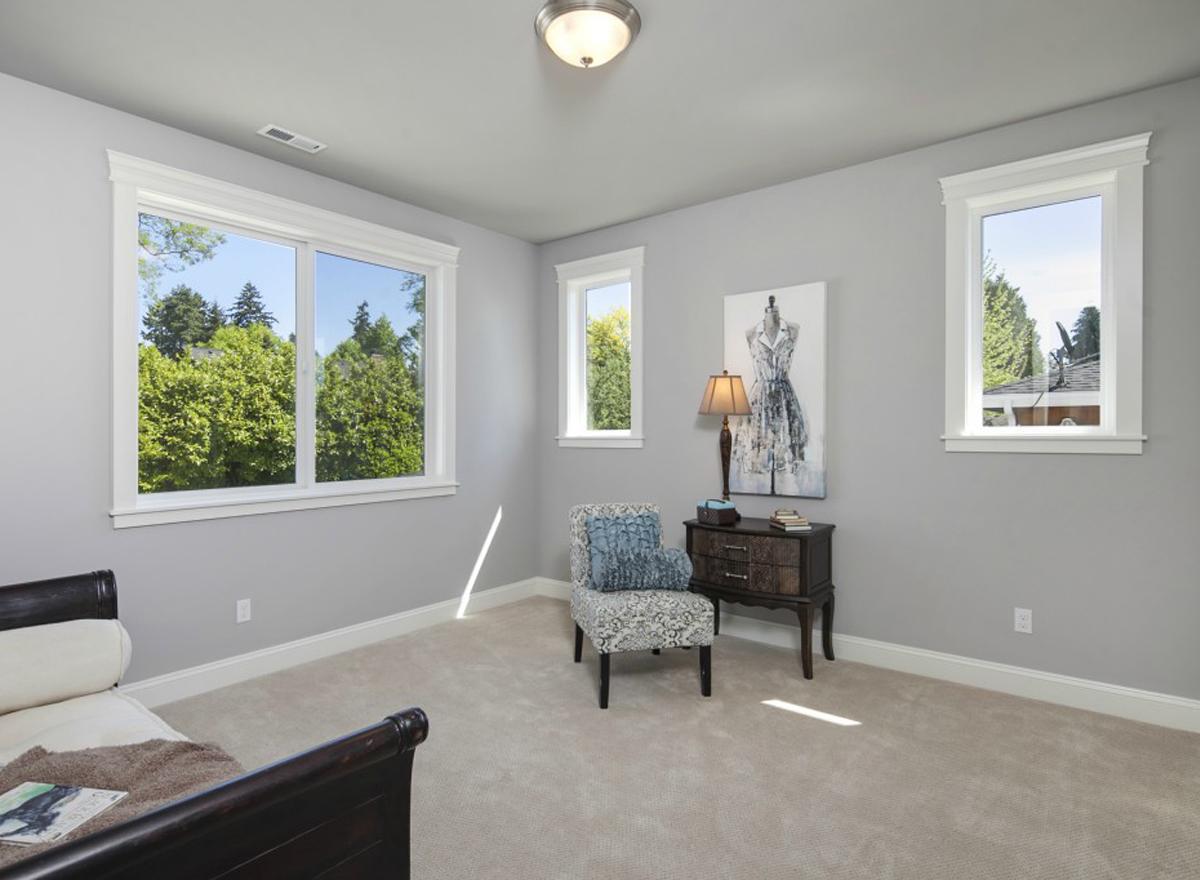

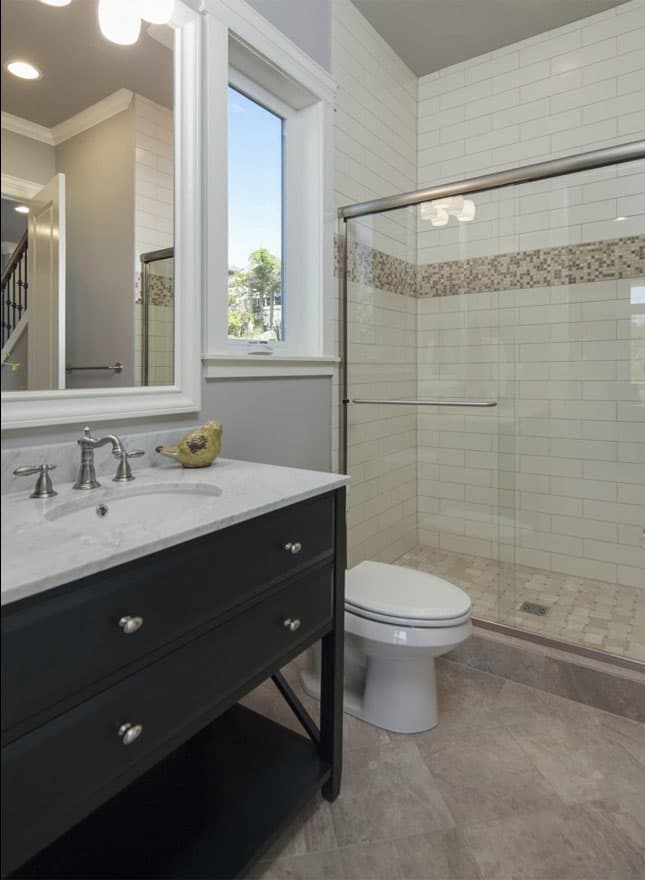

  • Four big bedrooms on the upper floor share the second floor laundry room and huge bonus space over the 3 car garage.

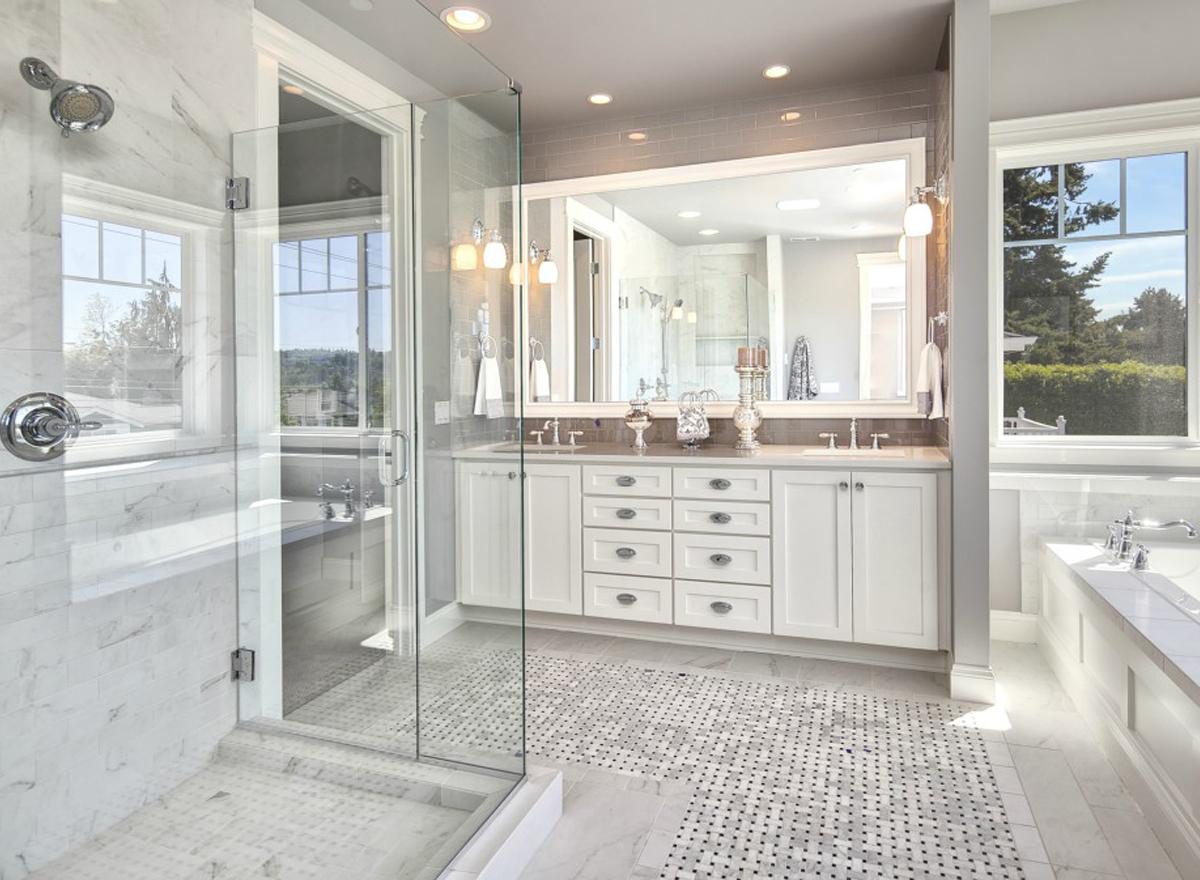

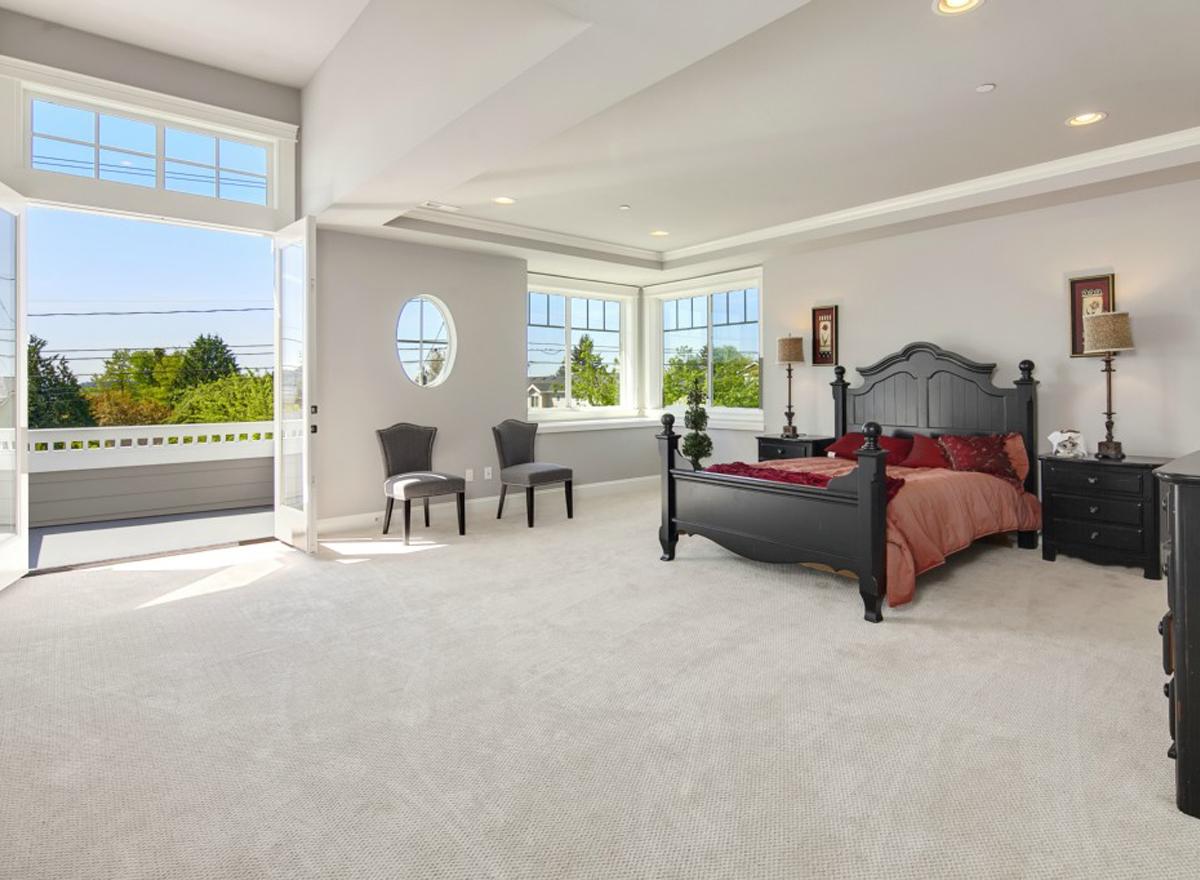

  • Homeowners get a luxurious master suite with a front-facing balcony, tray ceiling and enormous walk-in closet divided into his and her sections.
  • Related Plans: Get a smaller version with a different floor plan and 2 car garage with house plan 23595JD (3,655 sq. ft.) and a different exterior with house plan 23594JD (3,784 square feet). Remove the garage and bonus room with house plan 23596JD (3,190 sq. ft.).
  • NOTE: Additional fees apply when building in the State of Washington. Contact us for more information.
What's Included
  • Cover Sheet - The cover sheet includes the general notes and building code information, design standards and structural materials specifications required to construct your home.
  • Schedule Sheet - The schedule sheet includes the roof and foundation ventilation schedules, insulation and vapor barrier specifications, and exhaust fan ventilation schedule.
  • Detail Sheet - The detail sheet shows building components at large scale as required to explain construction of footings, foundation walls, concrete slabs, framed floors and walls, posts, beams, insulation, eaves, roofs, vents, stairs, skylights, and connections.
  • Foundation Plan Sheet - The foundation plan sheet shows the layout of the crawl space, walk-out basement or slab foundation. The foundation plan includes all necessary notes, dimensions, concrete walls, footing pads, posts, beams, bearing walls, crawlspace vents, footing schedule, steel reinforcing, and structural information. If you require a different foundation type, please contact us for modifications to your plan.
  • Floor Plan Sheet - Floor plans are horizontal cuts through each floor level of the home, usually at 5' above the floor. The floor plan shows the location of interior and exterior walls, doors, windows, stairs, closets, cabinets, flooring, appliances, plumbing fixtures, fireplaces, posts and beams. Floor plans also indicate vaulted, coffered, or box beam ceilings, cased openings and areas with ceiling soffits.
  • Roof Framing Plan Sheet - The roof framing plan shows the geometry of the hips, ridges, valleys, dormers, roof pitches, wall and plate heights, and overhangs. The plan also shows all individual roof framing members, trusses, rafters, beams, skylights, roof vents, gutters, downspouts, skylights, bearing walls under framing members, and point loads.

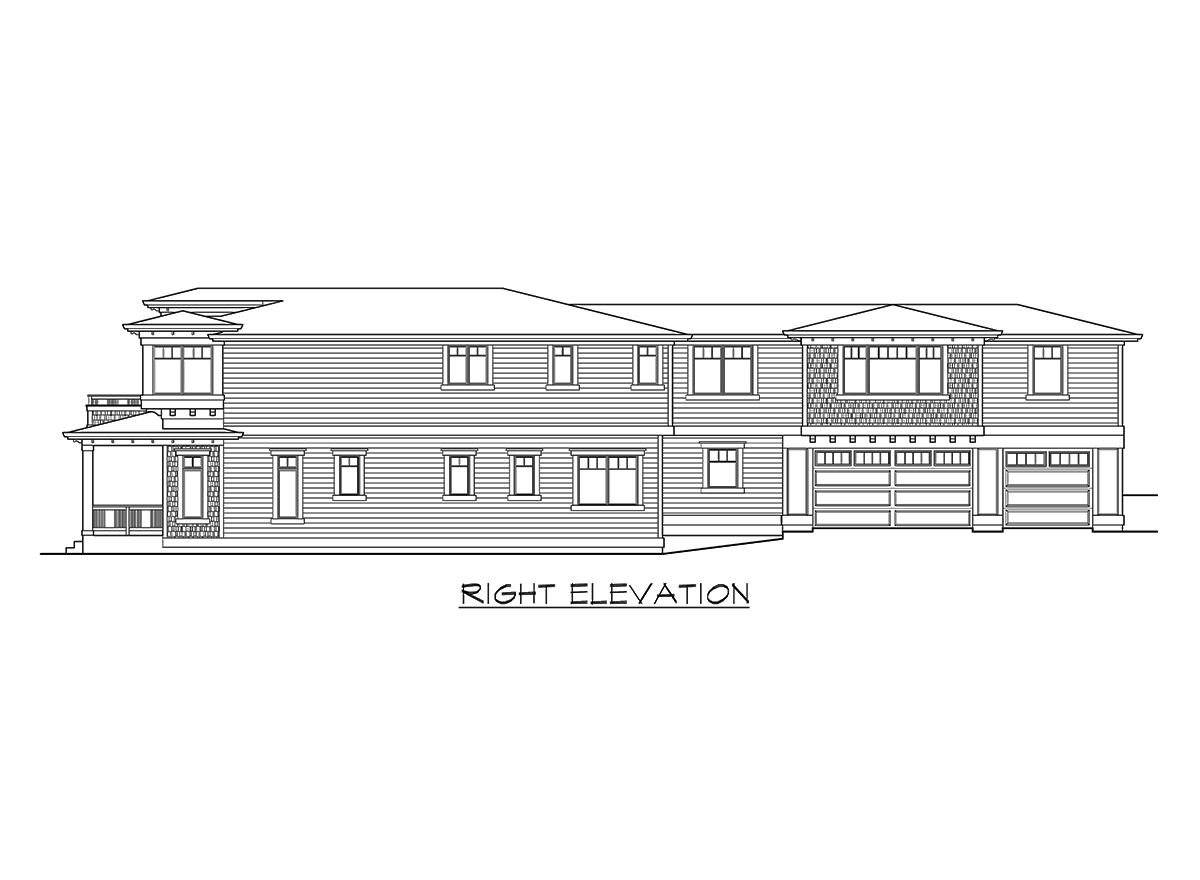

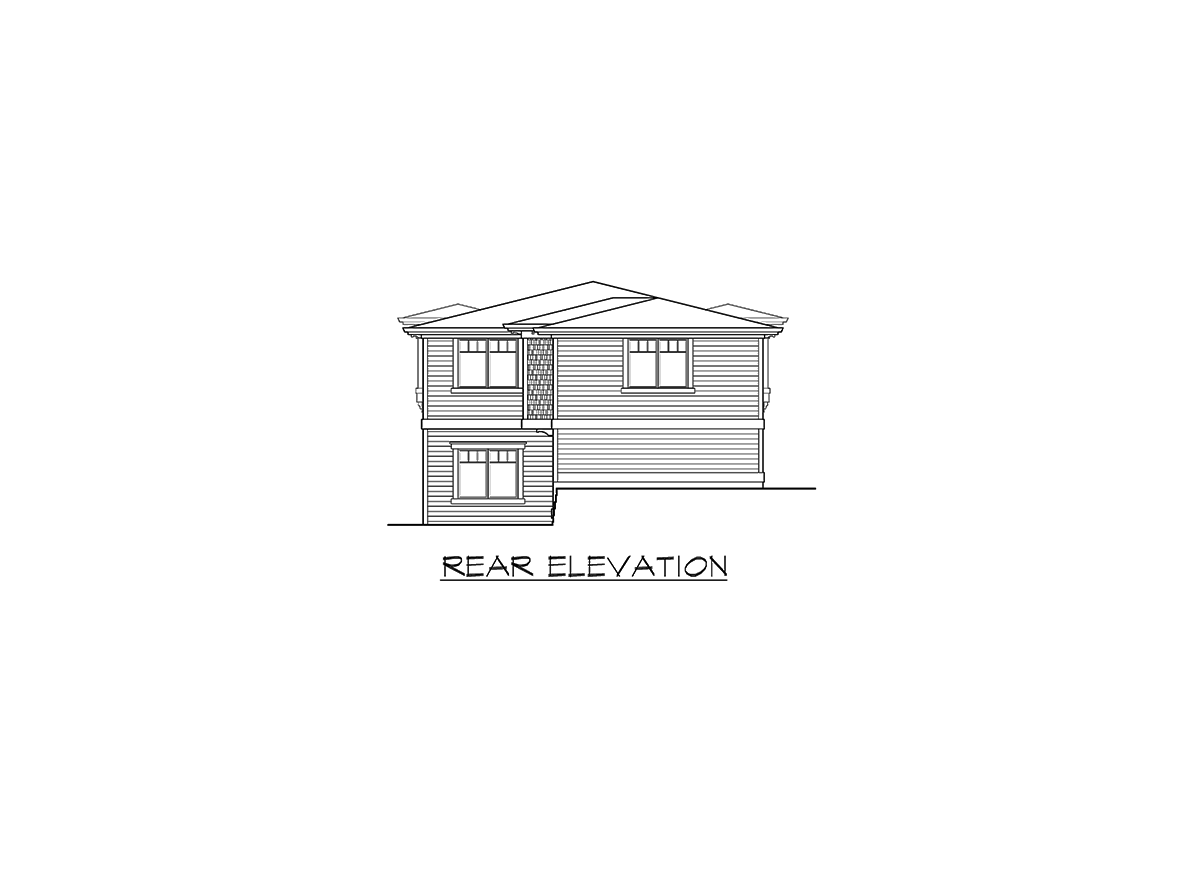

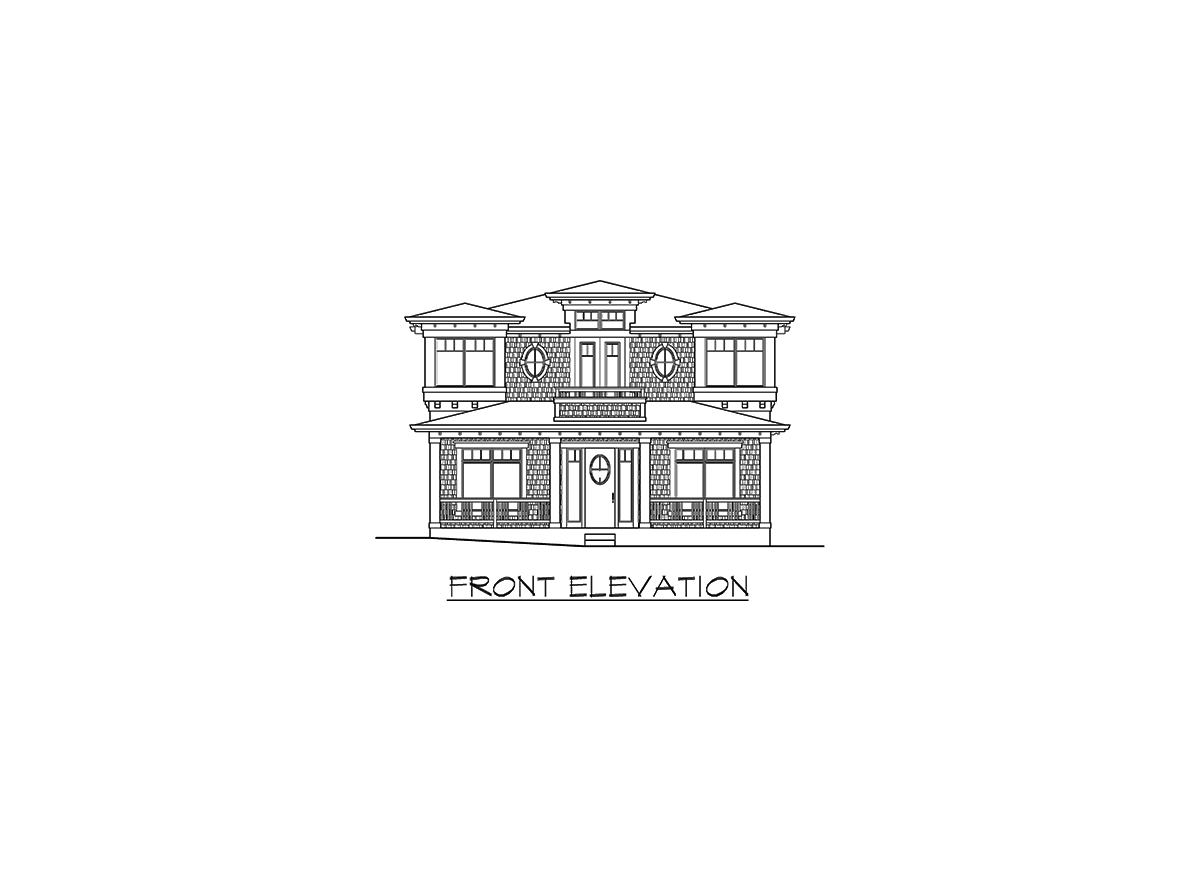

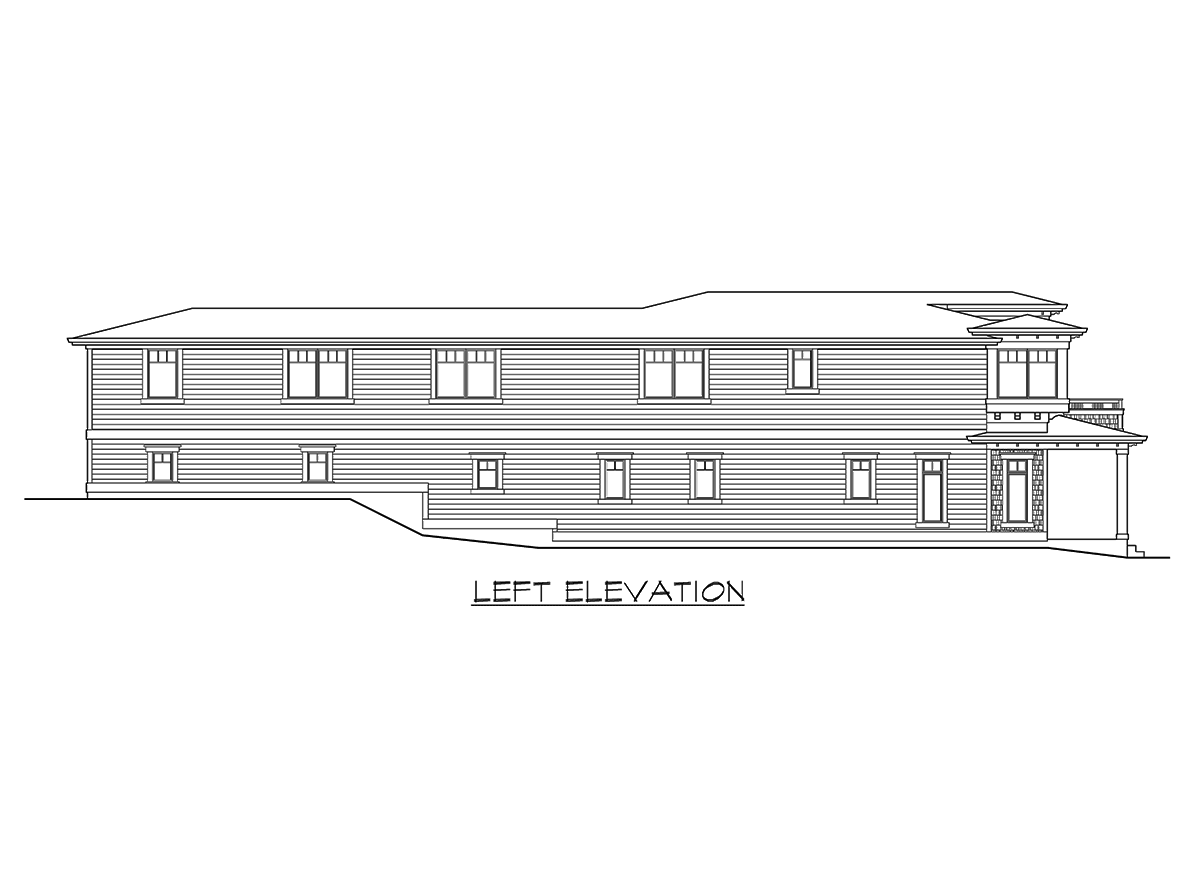

  • Elevation Sheet - Exterior elevations show all four sides of the house, describing the roofing, siding, and trim materials, doors, windows, roof pitches, skylights, gutters, chimneys, wall heights, finish grade and overall building height.
  • Building Section Sheet - Building sections are vertical cuts through the house from the roof to the foundation. The sections illustrate the construction sequence from bottom to top starting with excavation, proceeding up through the foundation, drainage, wall and floor framing, stair framing, roof framing, windows, doors, venting, and exterior and interior finishes. Wall plate heights for each floor are also delineated.
What's Not Included
  • Electrical Plan - handled by your subcontractor to match your individual needs
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

4,447 sq. ft.

1st Floor

1,812 sq. ft.

2nd Floor

2,635 sq. ft.

Covered Patio

144 sq. ft.

Beds/Baths

Bedrooms

4 or 5

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

34' 0"

Depth

104' 0"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

709 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

3.5 on 12

Framing Type

Truss

Architectural Style

Northwest

Shingle

Special Features

Bonus Room

Breakfast Nook

Butler Walk-in Pantry

Den

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor
