Plan 48383FM

Unique Sitting Room

Heated S.F.

3,437

Beds

4

Baths

3.5

Stories

2

Cars

3

Floor Plan

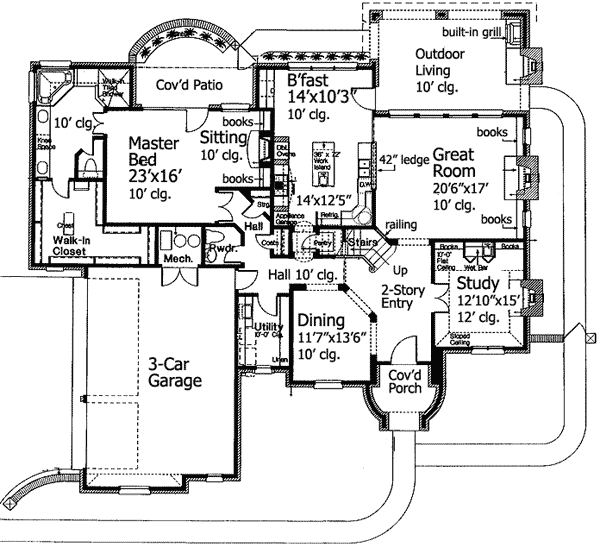

Main Level

floor plan image Main Level

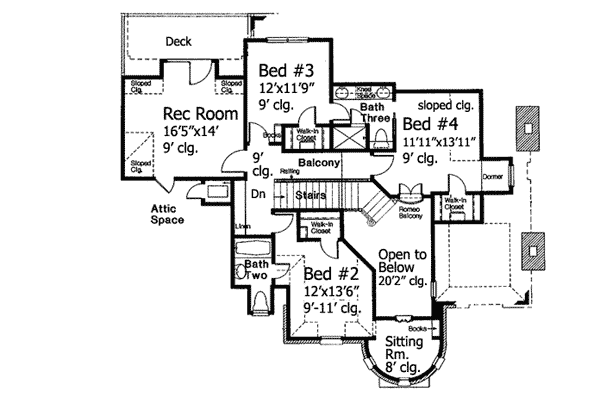

2nd Floor

floor plan image 2nd Floor

Plan Details

The top of the turret in this elegant European home plan makes a delightfully cozy sitting room for bedroom 2.
The upper floor also has a big rec room with sloped ceilings and an outdoor balcony.
Built-in bookshelves flank the wet bar in the study that is a true "man's room" complete with fireplace and sloped ceilings.
Both the master sitting room and the great room also have fireplaces with bookshelves on either end.
Entertain outdoors in the covered porch that has a built-in grill and fireplace.

What's Included

Cover Sheet
Floor Plans
Electrical Plan
Foundation Plan
Front and Left Elevation
Rear and Right Elevation
Roof Plan
Cabinets and Section
Building Section

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,437 sq. ft.

1st Floor

2,247 sq. ft.

2nd Floor

1,190 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

66' 0"

Garage

Type

Attached

Area

750 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

20' 2''

Study

Pan Vaulted

12' 0''

Bedroom 2

Vaulted

11' 0''

Roof Details

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Square Footage Breakdown

Total Heated Area

3,437 sq. ft.

1st Floor

2,247 sq. ft.

2nd Floor

1,190 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

68' 0"

Depth

66' 0"

Garage

Type

Attached

Area

750 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Foyer

20' 2''

Study

Pan Vaulted

12' 0''

Bedroom 2

Vaulted

11' 0''

Roof Details

Framing Type

Stick

Architectural Style

Special Features

Bedrooms - Clustered

Butler Walk-in Pantry

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen
