Plan 11568KN

Unusual Angles

Heated S.F.

8,358

Beds

6

Baths

5

Stories

2

Cars

3

Floor Plan

Basement

floor plan image Basement

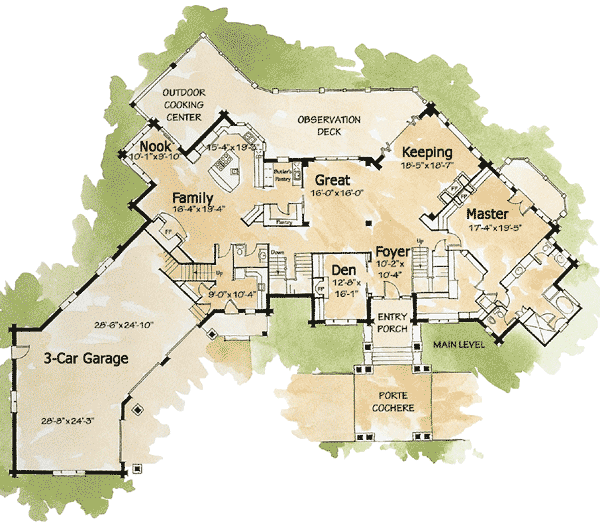

Main Level

floor plan image Main Level

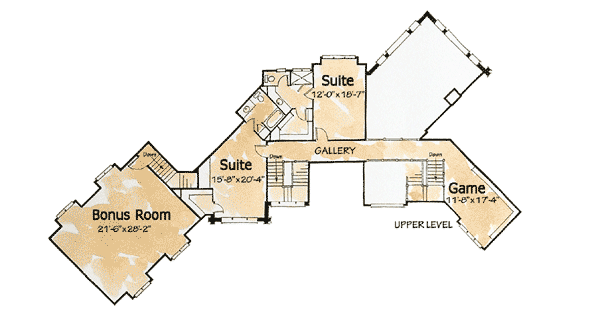

2nd Floor

floor plan image 2nd Floor

Plan Details

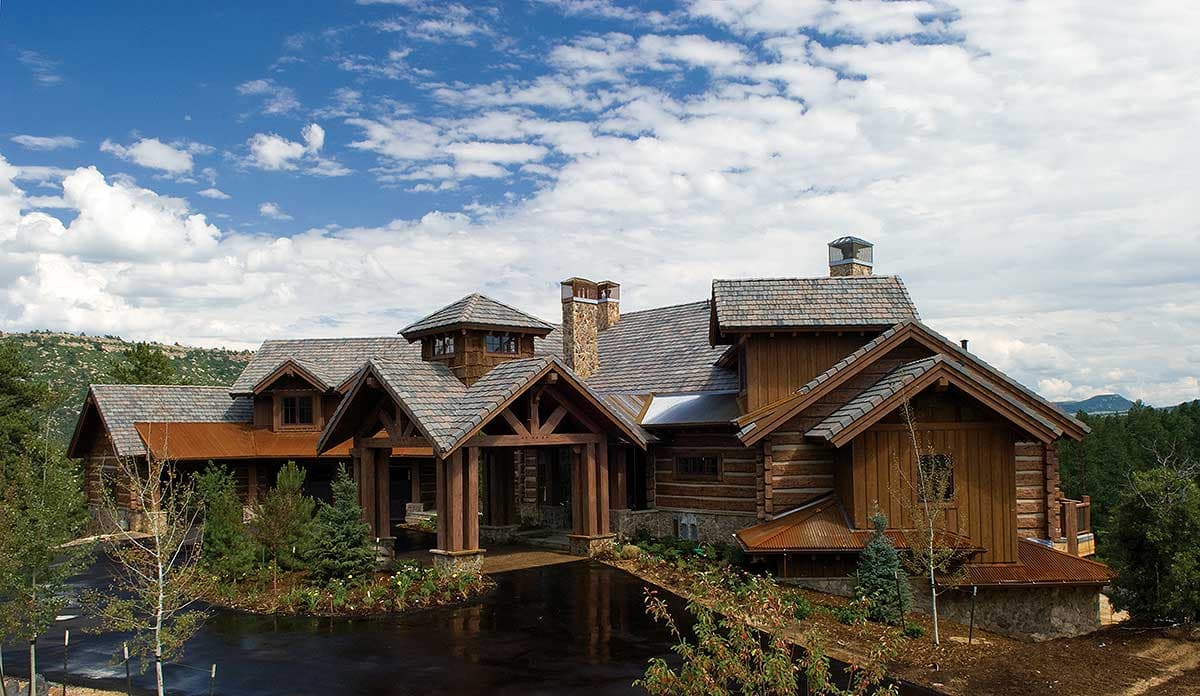

Unusual angles give this log mountain home plan a striking exterior.
Inside, a wide open floor plan adds a sense of spaciousness with both the great room and the keeping room open to the foyer.
Informal living takes place in the kitchen that overlooks the family room with fireplace and the breakfast nook with windows on three sides.
A huge walk-in pantry is set near the butler's pantry for added convenience.
The extra large master suite on the first floor has its own private balcony for morning coffee with a view.
Upstairs, two huge bedrooms each have their own bath.
A game room on the opposite end of the floor is open to the down staircase.
House all your guests in comfort on the spacious lower level with three bedrooms, another family room and a rec room.

What's Included

Floor plans at ¼" scale

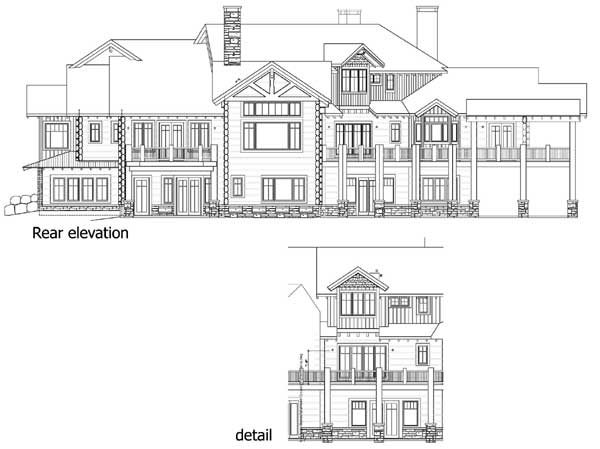

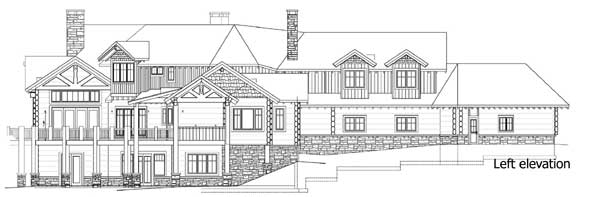

All exterior elevations at ¼" scale
Roof plan at ¼" scale
Building sections at ¼" scale
Completed foundation plan at ¼" scale
Completed floor/roof framing plan at ¼" scale
Building height profiles at ¼" scale
Door and window schedules
General construction notes and building schedules
Exterior finish schedule
Architectural details
Construction details for cabinets, interior built-ins and stairs
Designations for all floor, wall and ceiling surfaces
Details and specifications for all ceiling treatments
All square footage calculations

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

8,358 sq. ft.

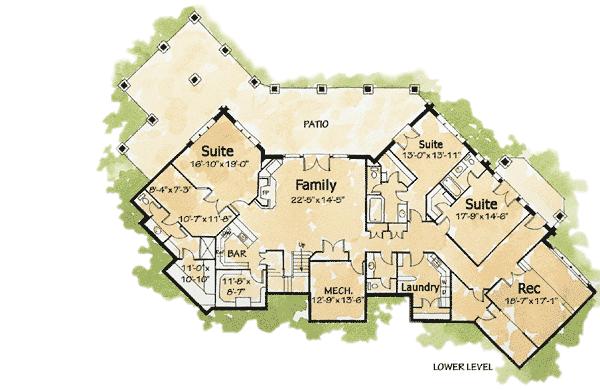

Lower Level

3,326 sq. ft.

1st Floor

3,760 sq. ft.

2nd Floor

1,272 sq. ft.

Bonus

600 sq. ft.

Deck

774 sq. ft.

Porch, Combined

454 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

Log

Optional Type(s)

2x6

Dimensions

Width

109' 0"

Depth

139' 0"

Max Ridge Height

40' 7"

Garage

Type

Attached

Area

1560 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

8,358 sq. ft.

Lower Level

3,326 sq. ft.

1st Floor

3,760 sq. ft.

2nd Floor

1,272 sq. ft.

Bonus

600 sq. ft.

Deck

774 sq. ft.

Porch, Combined

454 sq. ft.

Beds/Baths

Bedrooms

6

Full bathrooms

5

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

Log

Optional Type(s)

2x6

Dimensions

Width

109' 0"

Depth

139' 0"

Max Ridge Height

40' 7"

Garage

Type

Attached

Area

1560 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Architectural Style

Special Features

Butler Walk-in Pantry

Master Suite - 1st Floor

Master Suite - Sitting Area

Plan Collections

Premium Collection
