Name: Plan 801153PM: Urban-Style One-Story House Plan with One-Car Garage - 1208 Sq Ft
SKU: 801153PM
Price: 672.0 USD
Availability: InStock

Plan 801153PM

Urban-Style One-Story House Plan with One-Car Garage - 1208 Sq Ft

Heated S.F.

1,208

Beds

Baths

Stories

Cars

Floor Plan

Main Level

Plan Details

This urban-style one-story house gives you 2 beds, 1 bath and 1,208 square feet of heated living and a 1-car 336 square foot garage.
Inside, an open-concept area that has the kitchen with a four person island, dining room and living room in a combined gathering space.
The bedrooms are located in front with laundry tucked behind bi-fold doors.
NOTE: Please allow 15 to 20 business days for delivery.

What's Included

Please note this plan is designed to the National Building Code of Canada.

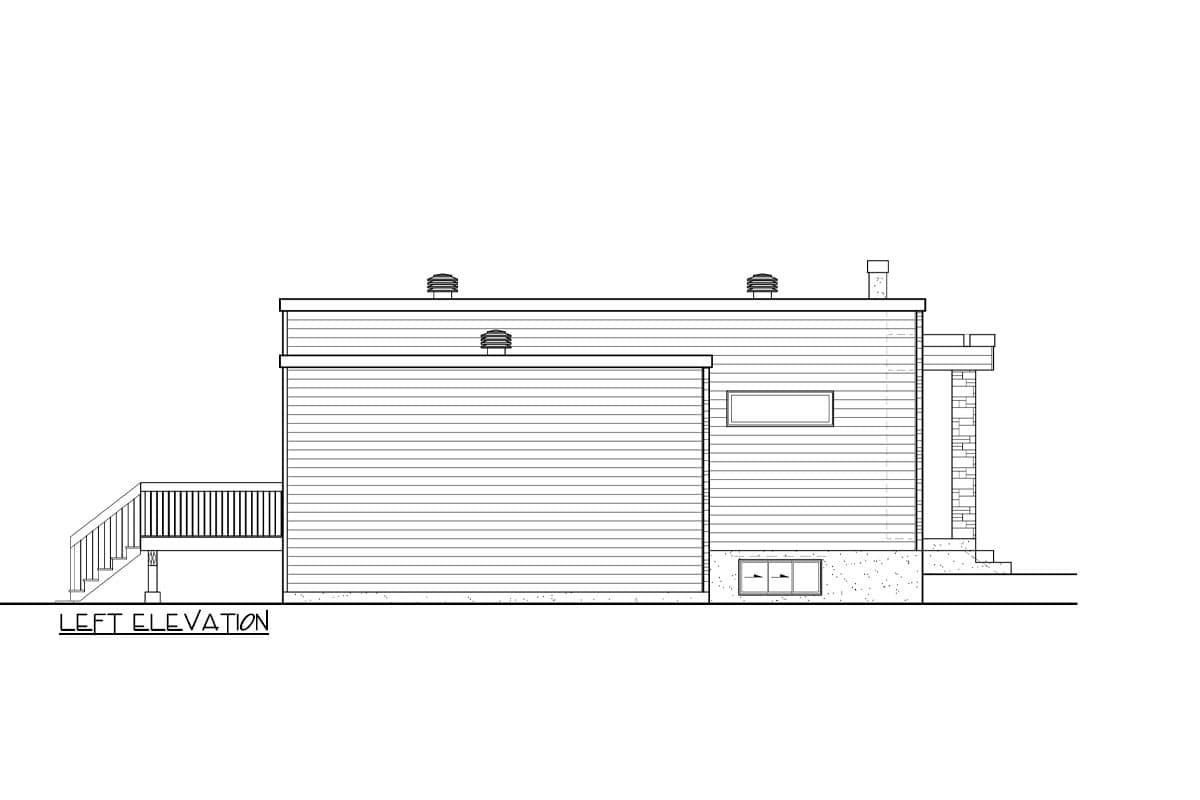

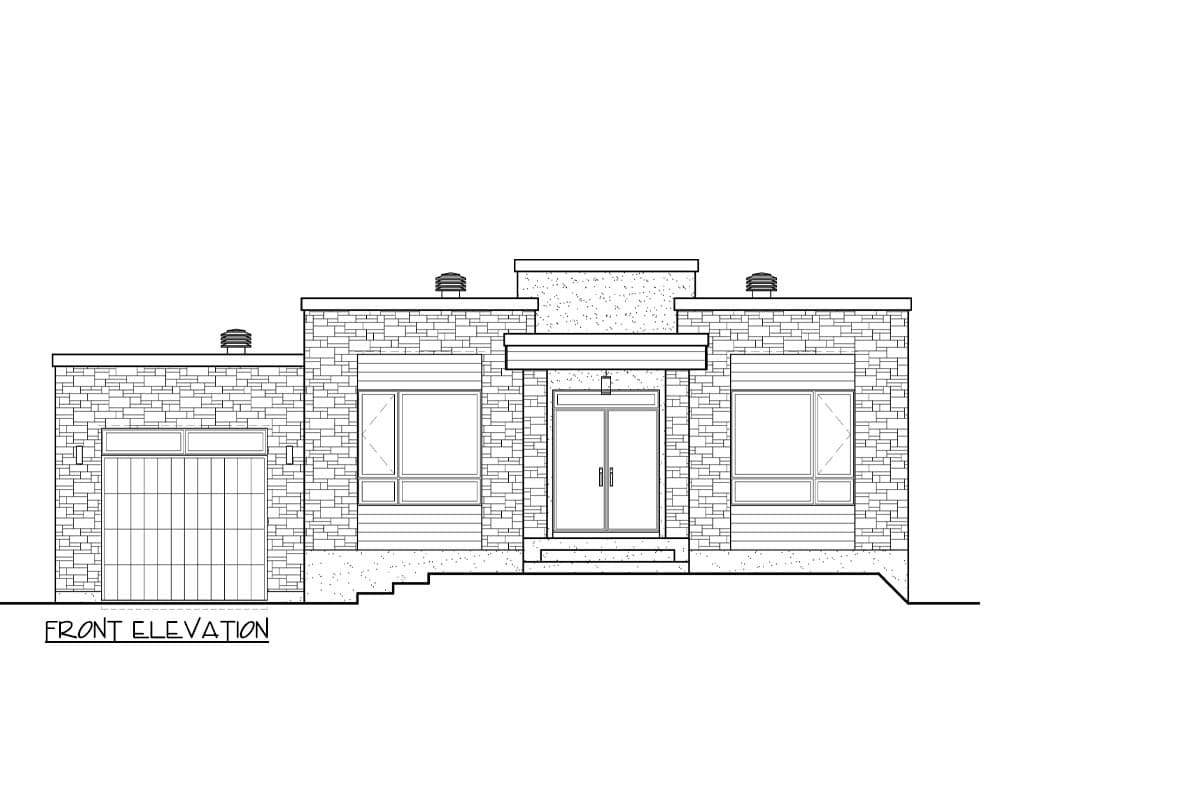

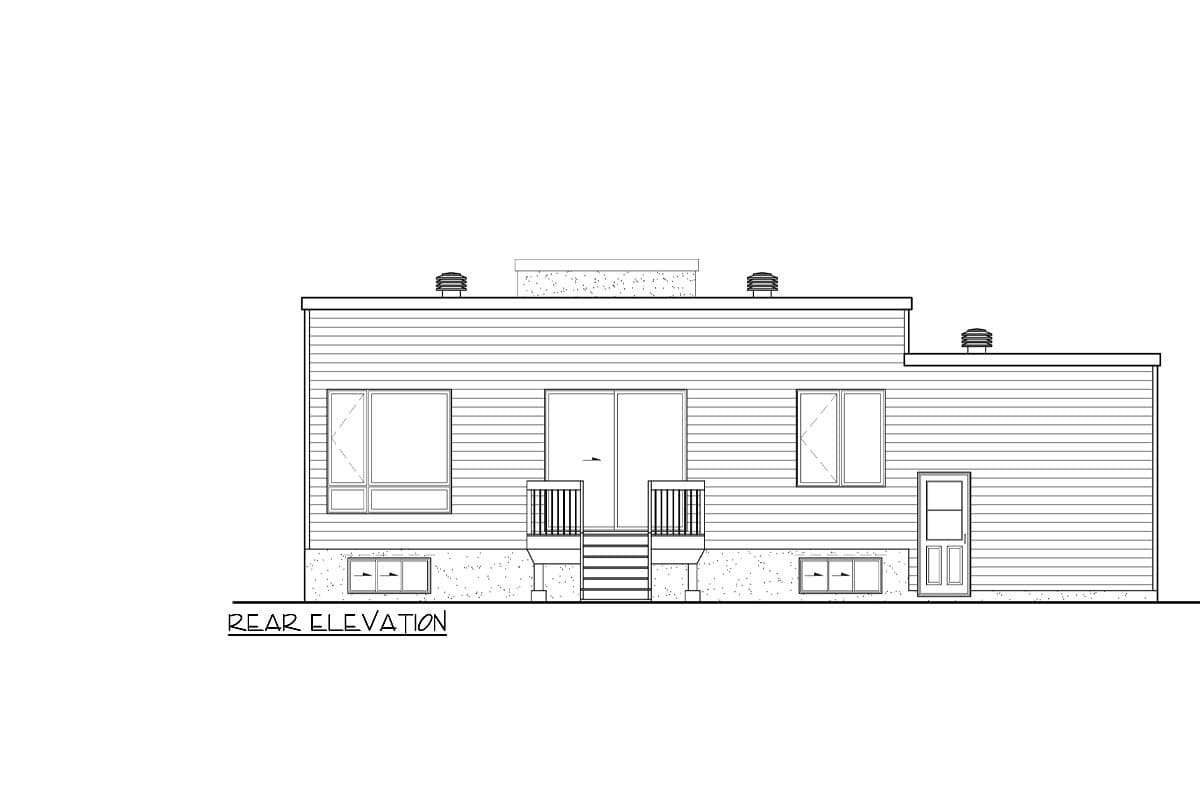

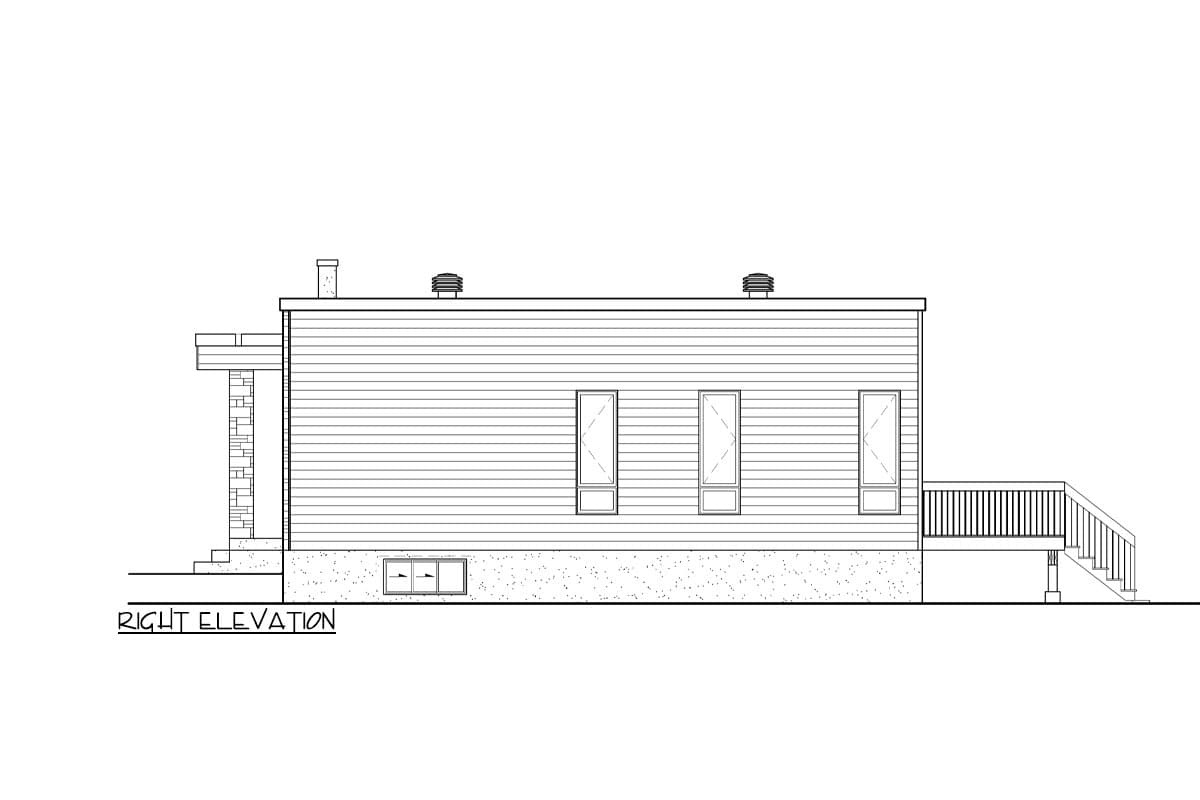

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.

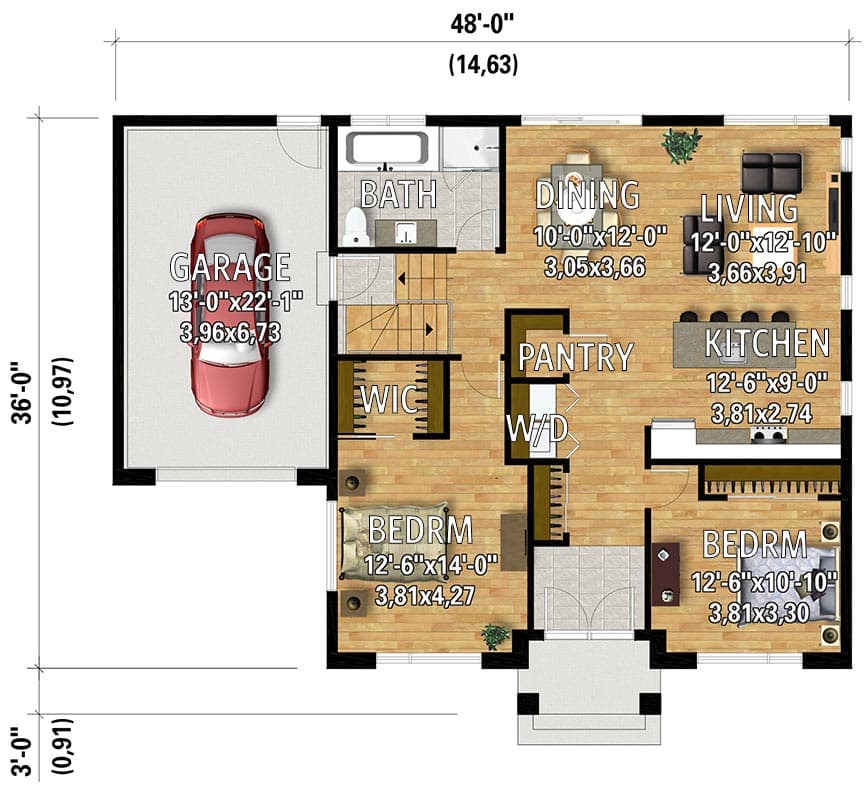

Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
