Plan 90165PD
Vacation Beauty with Great Views
Heated S.F.
1,160
Beds
2
Baths
1
Stories
1
Floor Plan

Plan 90165PD

Main Level
slide image 0
Future Lower Level
slide image 1

Plan 90165PD

1-800-854-7852

1-262-521-4596

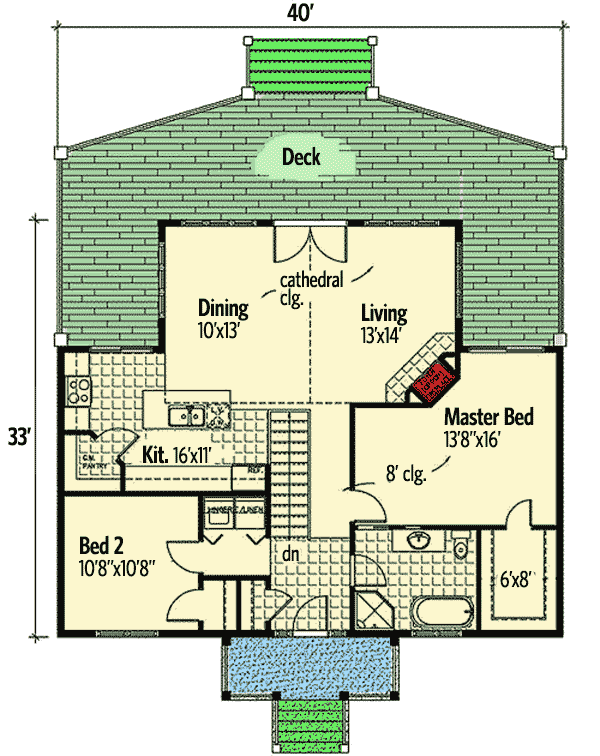

Main Level
floor plan image Main Level

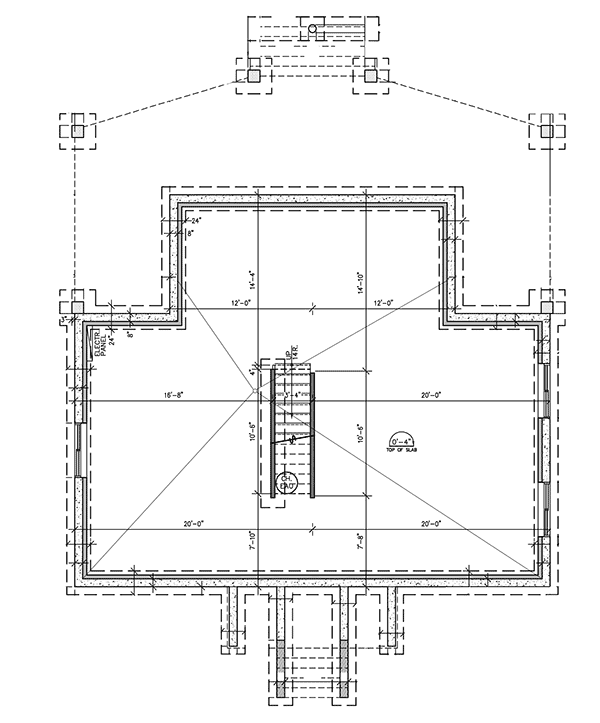

Future Lower Level
floor plan image Future Lower Level
Plan Details
  • Designed to take advantage of a sloping lot, this plan's 40' width also makes it suitable for a narrow lot.
  • Tall windows rising up in the living/dining rooms enhance the views from the rear. Double doors lead to a spacious deck that runs along the entire width of the home.
  • The large kitchen is open to the living/dining area and has seating for casual meals.
  • From the master suite step outside and enjoy the views from the spacious deck.
  • Bed 2 is right by the laundry.
  • Related Plans: Gain more room and finished lower levels with house plans 90075PD and 90164PD.
What's Included
This house plan has 6 pages as follows:

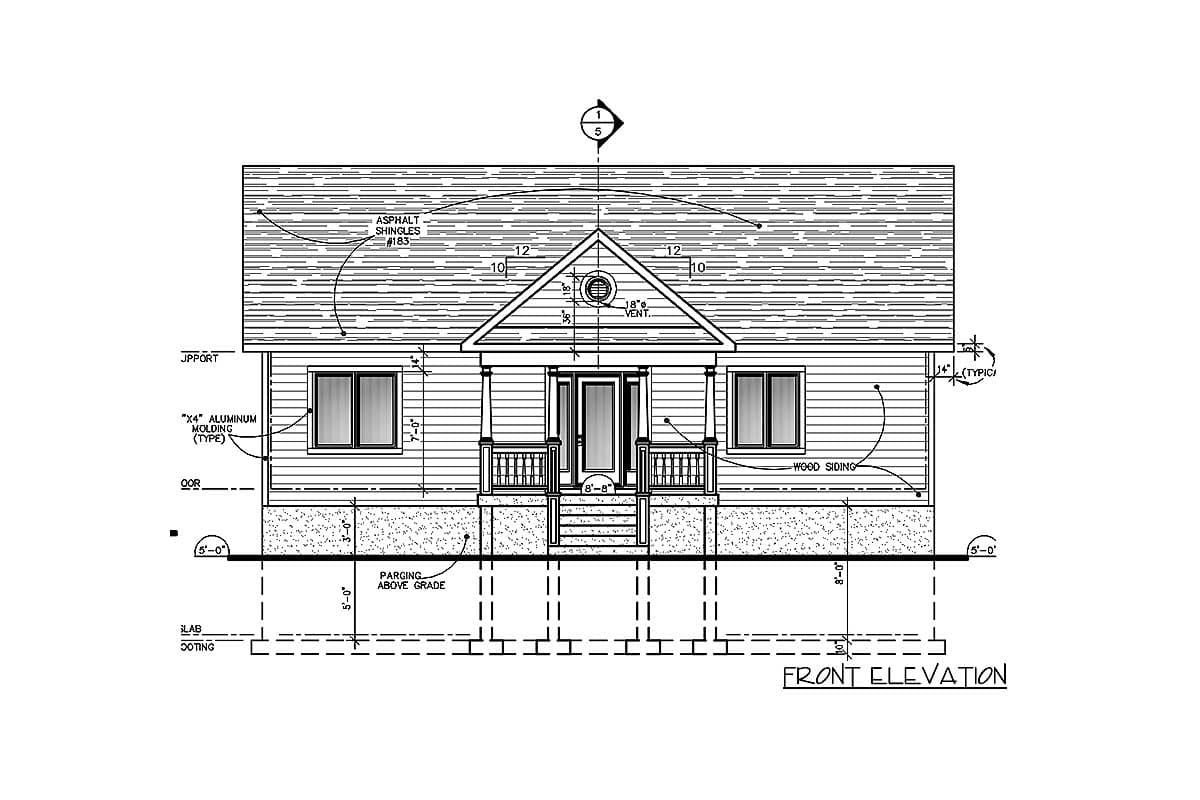

  1. Front elevation

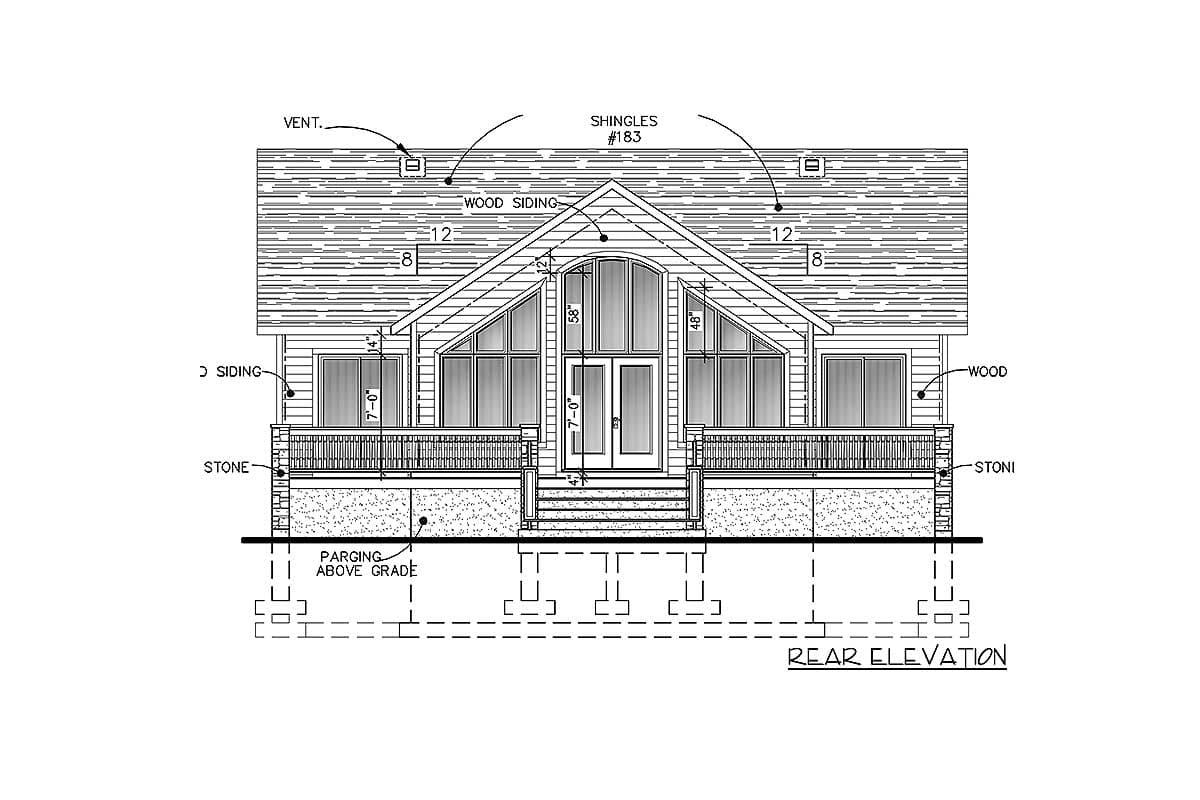

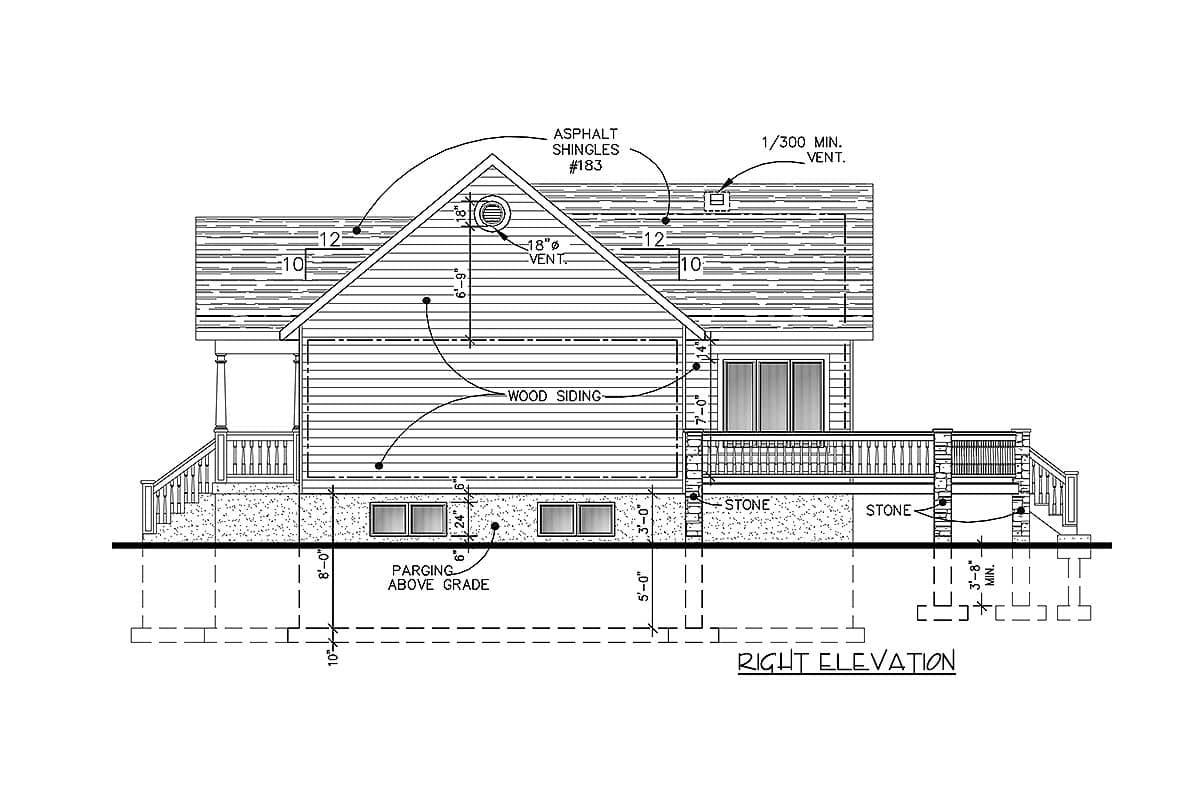

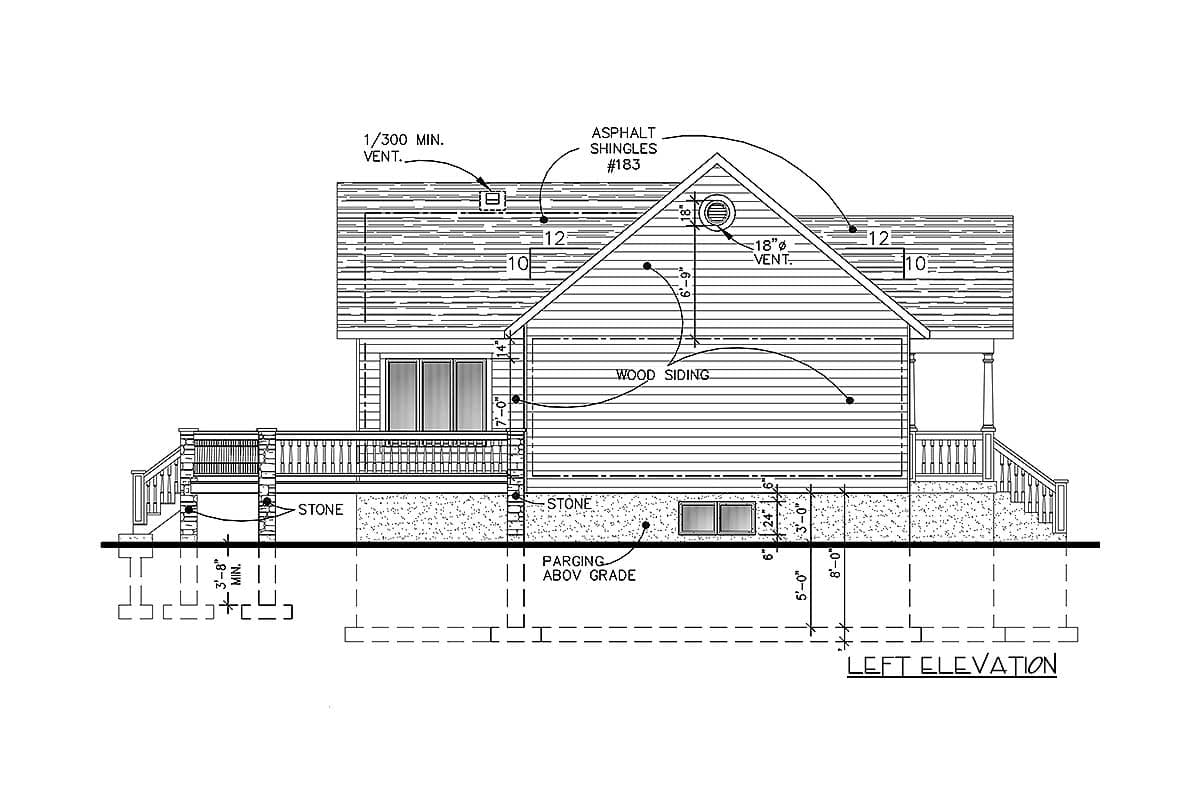

  2. Side and rear elevations
  3. Lower level floor plan
  4. Main floor plan
  5. Cross sections
  6. Roof plan and details

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Framing - layouts with beam sizes and locations
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,160 sq. ft.

1st Floor

1,160 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

33' 0"

Max Ridge Height

23' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Rustic

Vacation

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Metric

Square Footage Breakdown

Total Heated Area

1,160 sq. ft.

1st Floor

1,160 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

40' 0"

Depth

33' 0"

Max Ridge Height

23' 3"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Truss

Architectural Style

Contemporary

Mountain

Rustic

Vacation

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Mudroom

Two Story Great Room

Plan Collections

Canadian House Plans

Metric
