Name: Plan 80679PM: Vacation Cabin with Loft Option
SKU: 80679PM
Price: 776.0 USD
Availability: InStock

Plan 80679PM

Vacation Cabin with Loft Option

Heated S.F.

1,960

Beds

Baths

2.5

Stories

Floor Plan

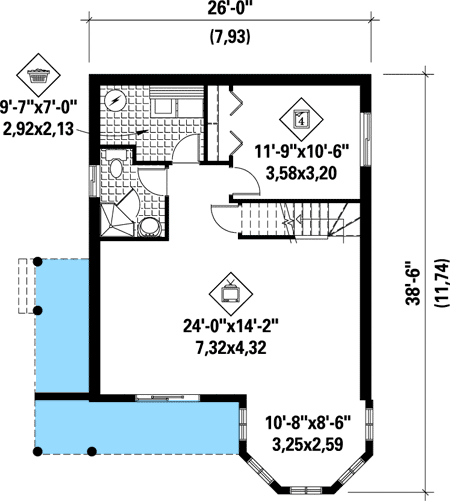

Basement

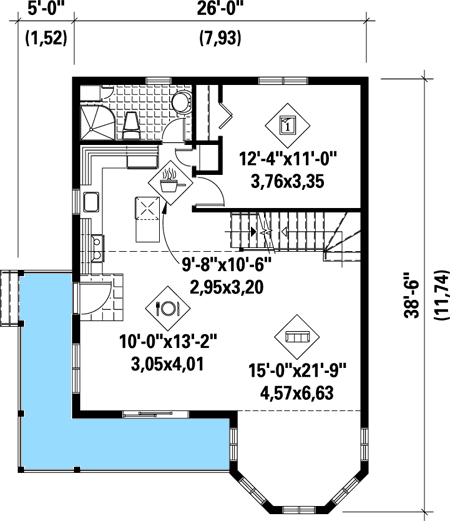

Main Level

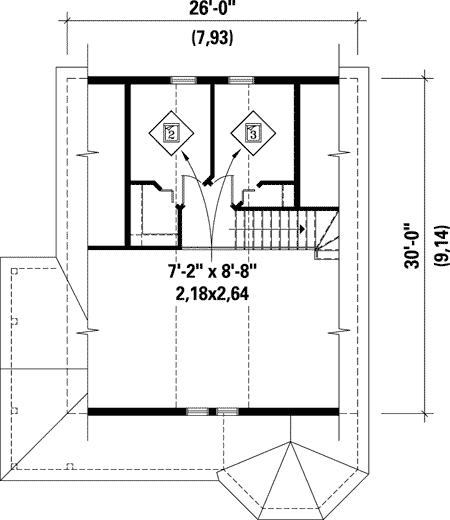

2nd Floor

Plan Details

A wrap-around porch gives you a great place to sit and watch the sunset in this Mountain vacation home plan.
The living room is set in a large bay with lots of windows to bring in the light.
The first floor master has a full bath close by.
On the upper level, two more bedrooms each have a walk-in closet.
The lower level has outdoor access if your lot has adequate slope to it plus an extra bedrooms suite, laundry and rec area.
Related Plan: Gain a second floor reading loft with house plan 80680PM.

What's Included

Please note this plan is designed to the National Building Code of Canada.

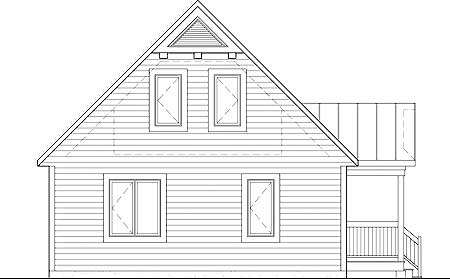

Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
