Plan 9814SW
Vacation Cottage or Carriage House
Heated S.F.
476
Beds
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 9814SW

Main Level
slide image 0
Second Level
slide image 1

Plan 9814SW

1-800-854-7852

1-262-521-4596

Main Level

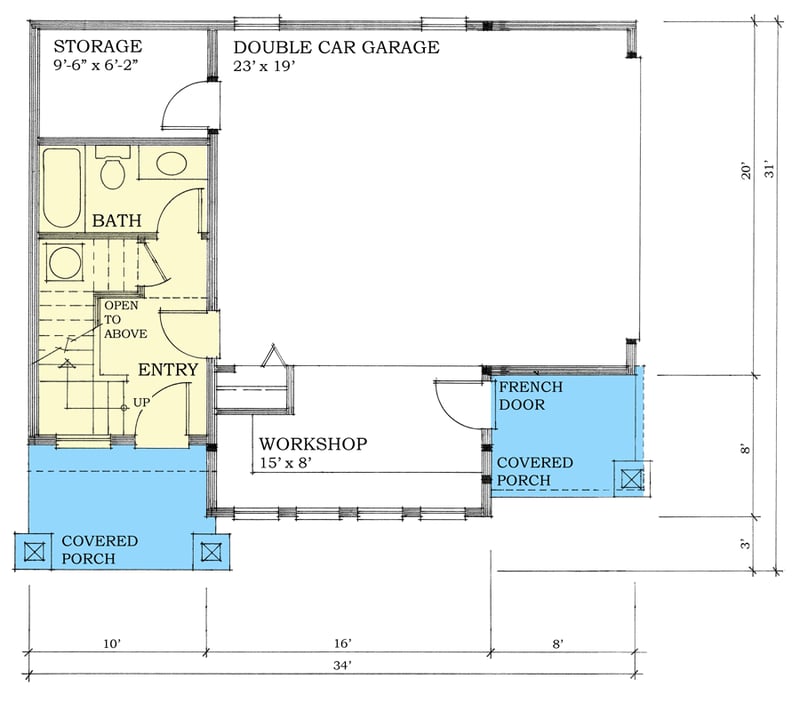

floor plan image Main Level
Second Level
floor plan image Second Level
Plan Details
  • A combination of low maintenance shingle siding with fish scale accents, covered porches and old fashioned widow treatments create a strong appeal this side-entry design.
  • With two floor plan options - one as a one bedroom vacation getaway and another as a garage with bath and upstairs studio - make this an attractive plan.
  • Please specify which second floor you would like. The plan will not come with both.

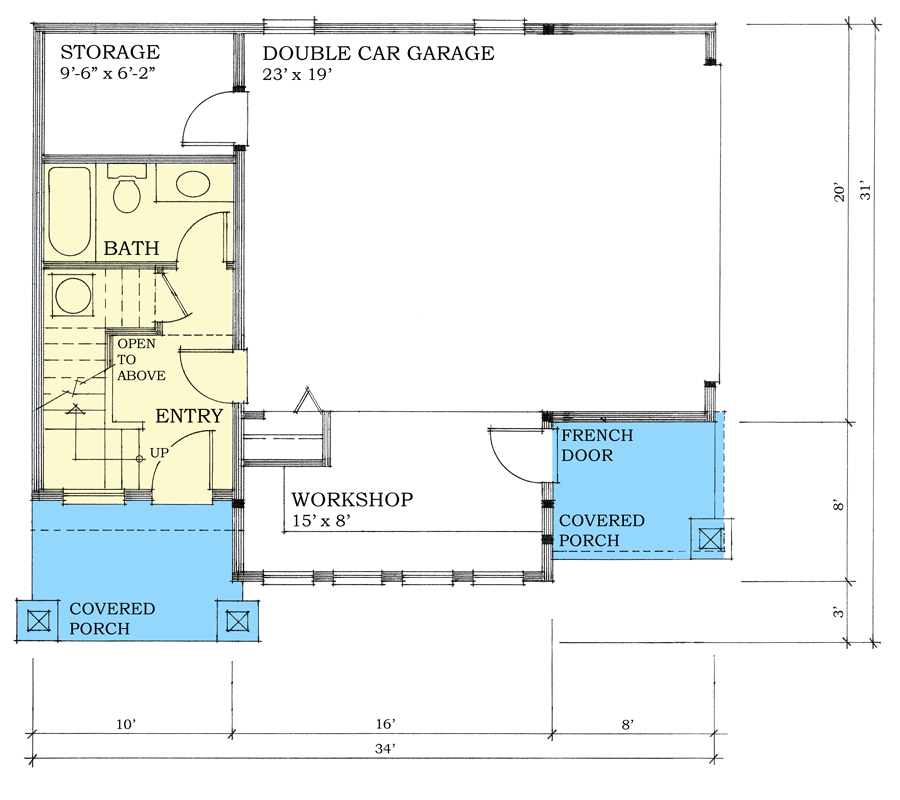

  • Ample storage, a large workshop space and a full bathroom for those cleanups occupy the first level.
  • Through the vaulted foyer you access the second level. A separating glass railing makes this area more visually spacious and inviting.

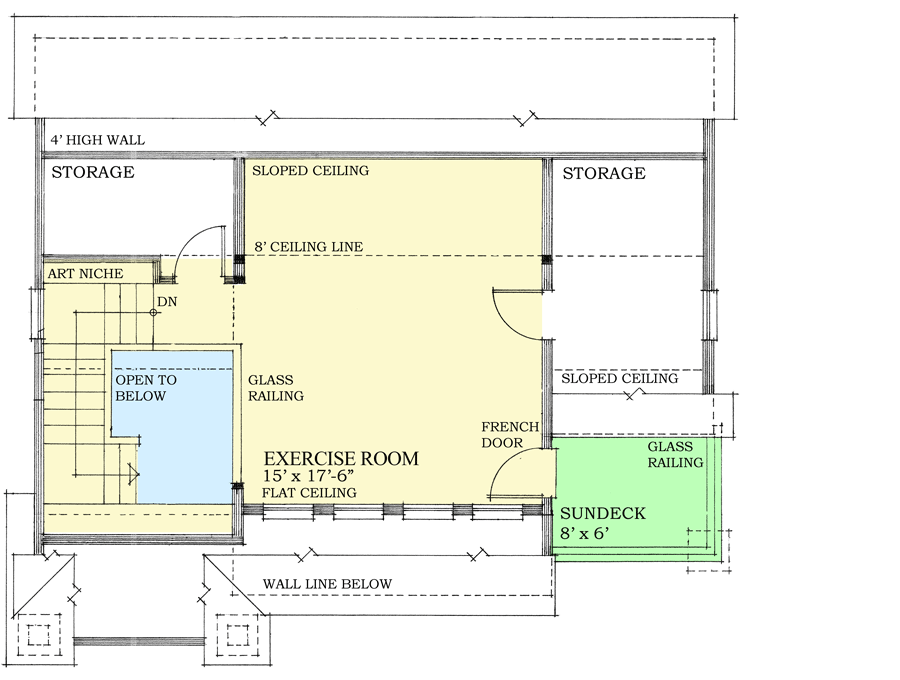

  • Numerous activities can be accommodated in this multi-purpose space.
  • Storage and a private viewing balcony complete this unique design.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

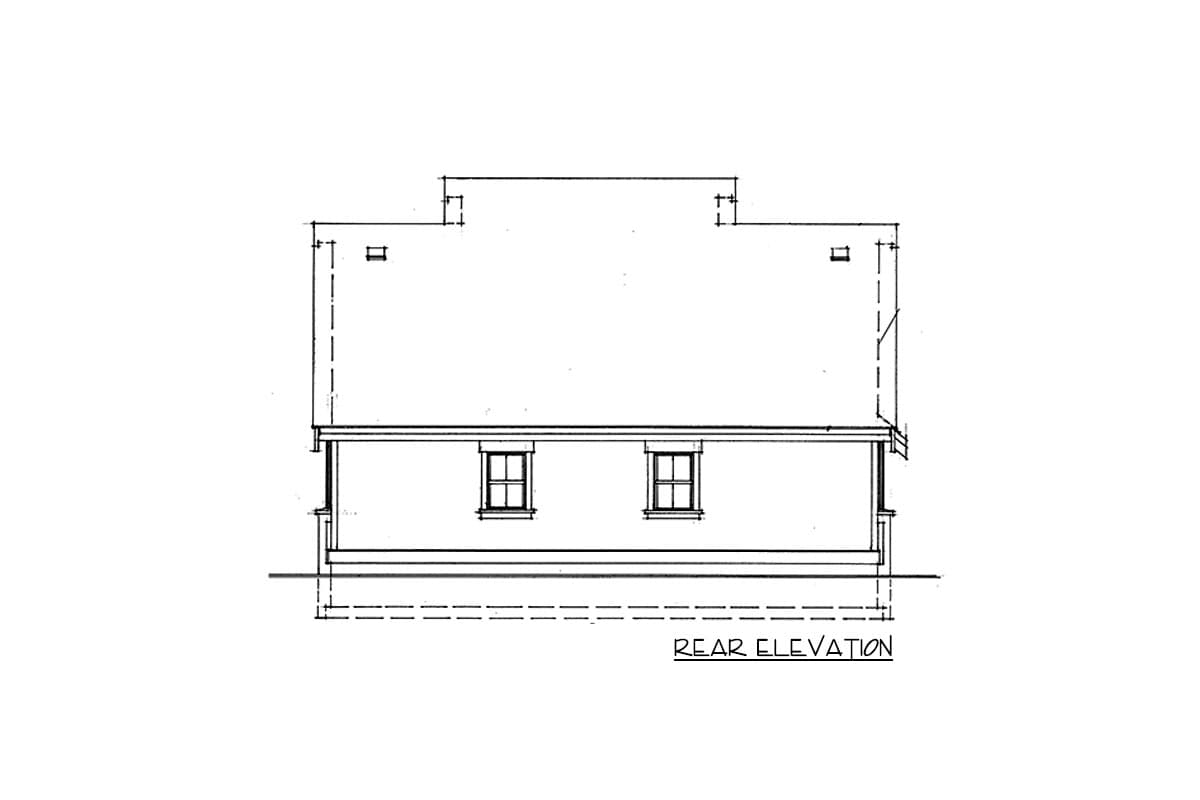

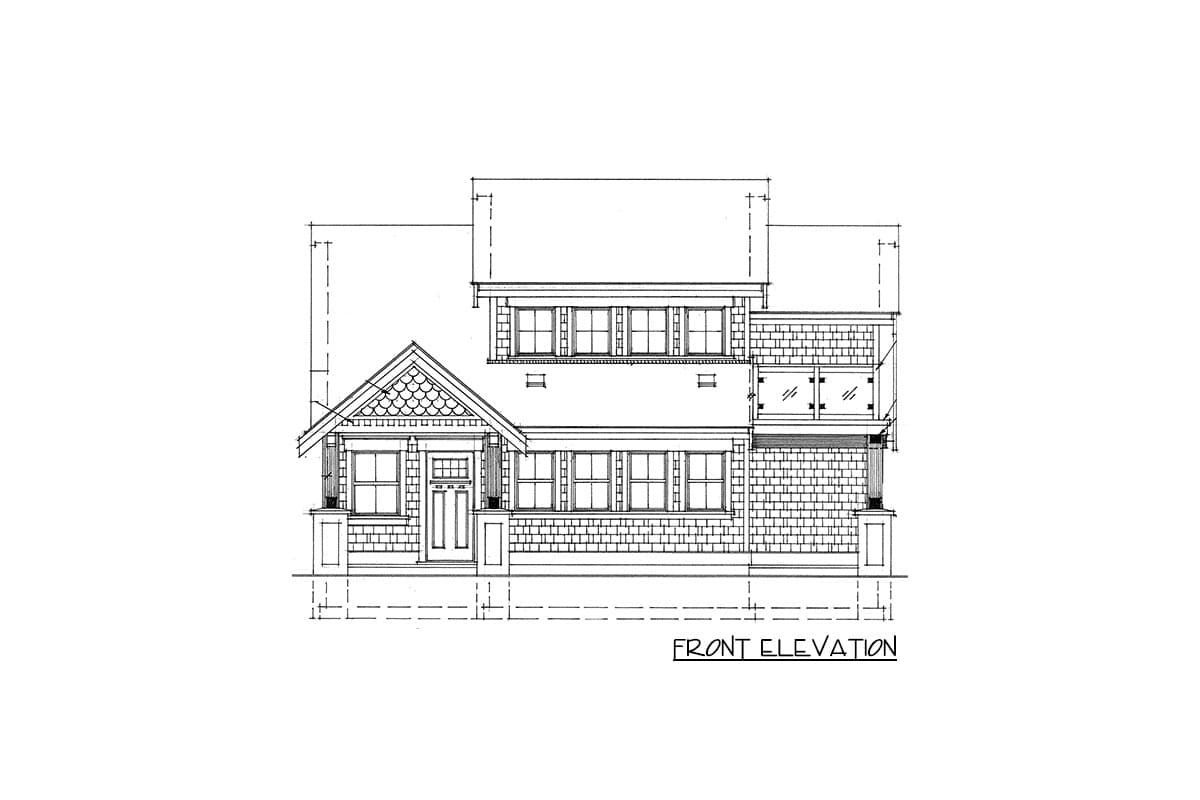

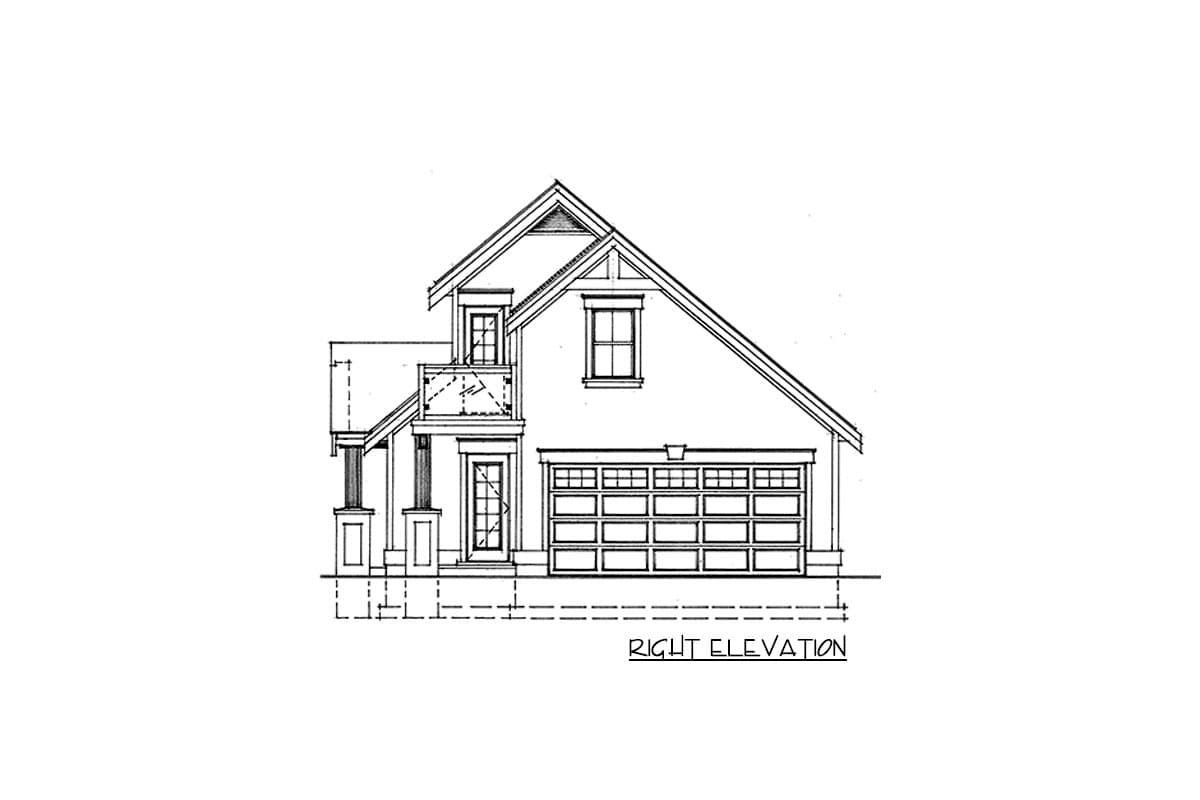

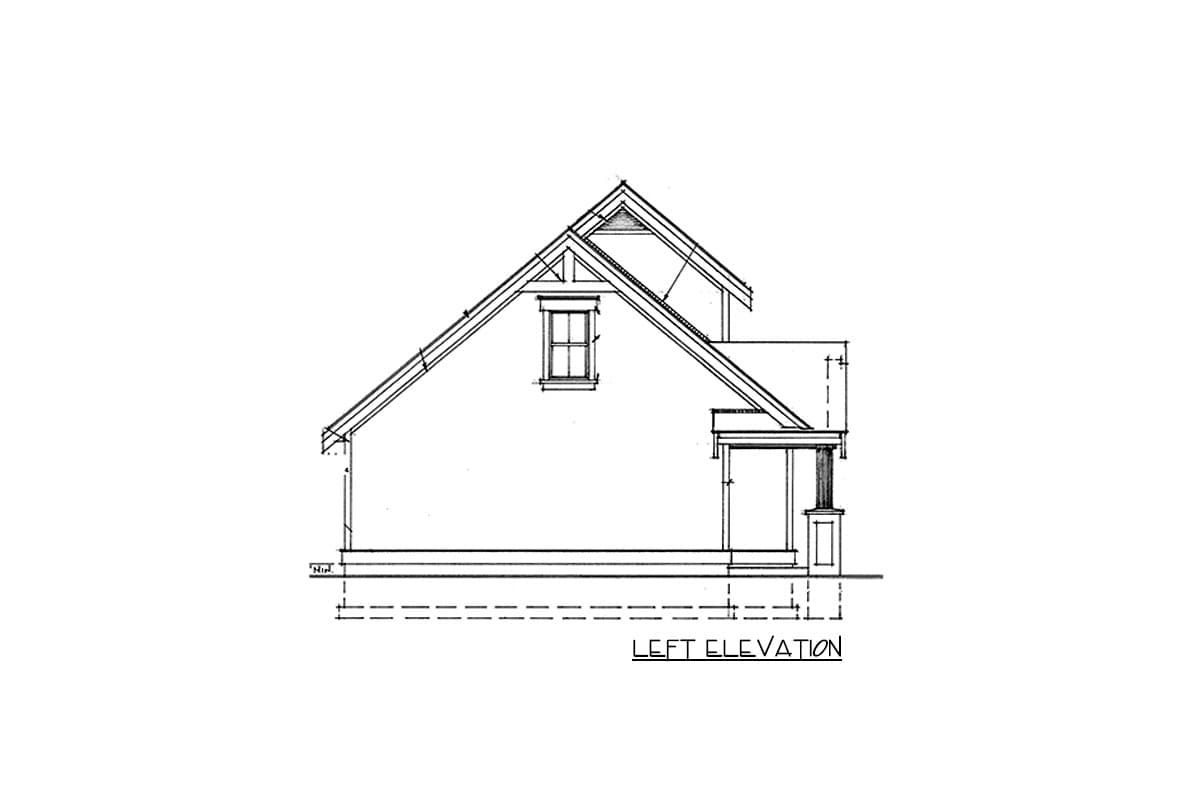

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

476 sq. ft.

1st Floor

182 sq. ft.

2nd Floor

294 sq. ft.

Porch, Front

126 sq. ft.

Balcony / Veranda

48 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 6"

Depth

31' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached

Area

666 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Carriage

Cottage

Vacation

Special Features

Master Suite - 2nd Floor

Workshop

Plan Collections

ADU

Canadian House Plans

Square Footage Breakdown

Total Heated Area

476 sq. ft.

1st Floor

182 sq. ft.

2nd Floor

294 sq. ft.

Porch, Front

126 sq. ft.

Balcony / Veranda

48 sq. ft.

Beds/Baths

Bedrooms

0

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

35' 6"

Depth

31' 0"

Max Ridge Height

25' 0"

Garage

Type

Detached

Area

666 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Carriage

Cottage

Vacation

Special Features

Master Suite - 2nd Floor

Workshop

Plan Collections

ADU

Canadian House Plans
