Plan 80681PM
Vacation Cottage with Solarium
Heated S.F.
1,293
Beds
3
Baths
2
Stories
1
Floor Plan

Plan 80681PM

Main Level
slide image 0
2nd Floor
slide image 1

Plan 80681PM

1-800-854-7852

1-262-521-4596

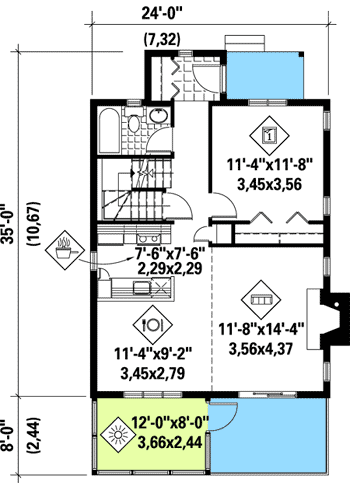

Main Level
floor plan image Main Level

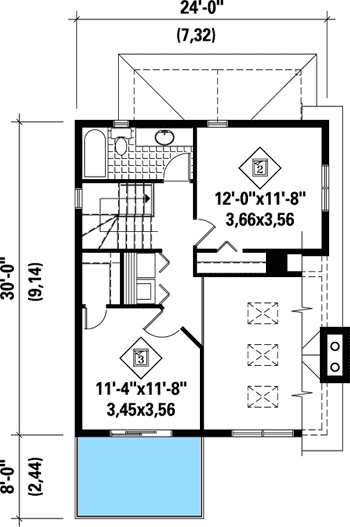

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Contemporary lines and windows with unusual shapes define this Vacation cottage.
  • The main living area is all open allowing views to flow from each room.
  • Step outside to the comfortable solarium or stay inside and enjoy the fireplace in the great room.
  • The master suite is on the main level while the other bedrooms occupy the upper floor along with the laundry center and a full bath.
What's Included
Please note this plan is designed to the National Building Code of Canada.

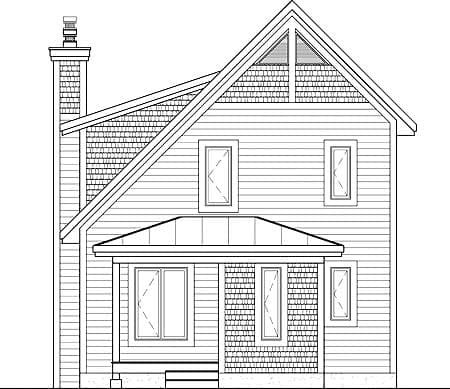

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,293 sq. ft.

1st Floor

760 sq. ft.

2nd Floor

533 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

35' 0"

Max Ridge Height

36' 7"

Ceiling Heights

First Floor

8'

Roof Details

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Vacation

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Sunroom

Plan Collections

Canadian House Plans

Metric

Sloping Lot

Square Footage Breakdown

Total Heated Area

1,293 sq. ft.

1st Floor

760 sq. ft.

2nd Floor

533 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

35' 0"

Max Ridge Height

36' 7"

Ceiling Heights

First Floor

8'

Roof Details

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Contemporary

Vacation

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Sunroom

Plan Collections

Canadian House Plans

Metric

Sloping Lot
