Plan 22389DR
Vacation Escape With Back Views
Heated S.F.
1,028
Beds
1
Baths
1.5
Stories
2
Cars
1
Floor Plan

Plan 22389DR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 22389DR

1-800-854-7852

1-262-521-4596

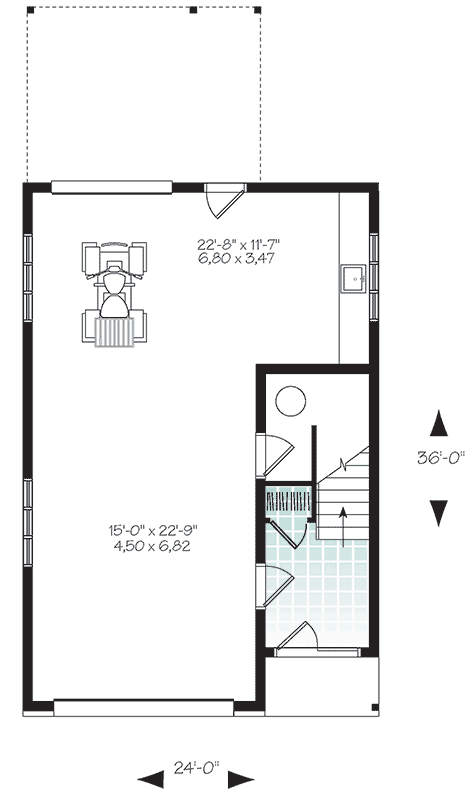

Main Level
floor plan image Main Level

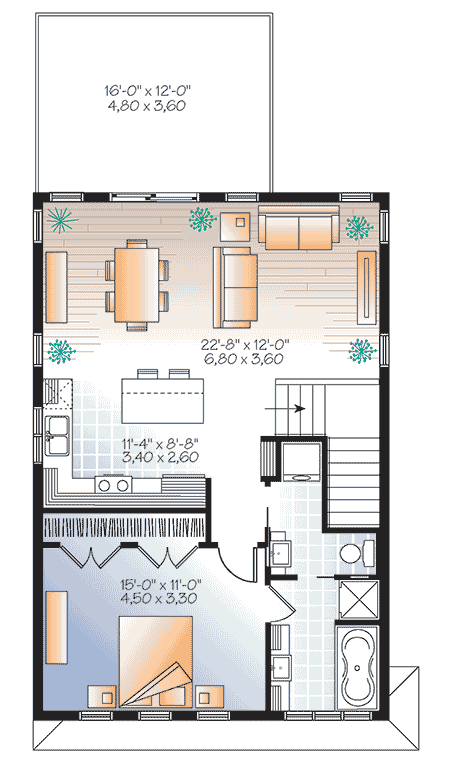

2nd Floor
floor plan image 2nd Floor
Plan Details
  • The extensive use of stone combined with siding in natural wood tones enhance the understated elegance of this home which will blend beautifully in rural or mountainous surroundings.
  • Inside, the first floor offers a large garage complete with workshop and storage and a second garage door on the rear wall with access to the back yard.
  • The upper floor offers an open floor plan and a surprisingly large kitchen, with island/dining/living area bathed in natural light. The patio door opens onto a 16' x 12' terrace to which an outside staircase and a roof could easily be added.
  • The large, 15' x 11' master bedroom has ample closet space and a private bathroom with a separate shower and toilette/laundry area, functional features that enhance the urban feeling of this home.
  • Related Plans: Get alternate versions with house plan 21856DR and 21911DR.
What's Included
  • Elevations
  • Foundation Plan
  • Main Floor Plan
  • Upper Floor Plans (if applicable)
  • Roof Plan
  • Building Section
  • Construction Details
  • Typical Wall Section
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical and Electrical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,028 sq. ft.

Lower Level

164 sq. ft.

1st Floor

864 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

36' 0"

Max Ridge Height

25' 11"

Garage

Type

Detached

Area

669 sq. ft.

Count

1 Cars

Entry Location

Front

Ceiling Heights

Lower Level

8' 10"

First Floor

8' 6"

Roof Details

Framing Type

Truss

Architectural Style

Carriage

Coastal

Vacation

Special Features

Laundry - Upstairs

Master Suite - 2nd Floor

Workshop

Plan Collections

Canadian House Plans

Metric
