Plan 9836SW
Vacation Escape With Loft and Sundeck
Heated S.F.
1,062
Beds
1 - 2
Baths
1
Stories
1
Floor Plan

Plan 9836SW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9836SW

1-800-854-7852

1-262-521-4596

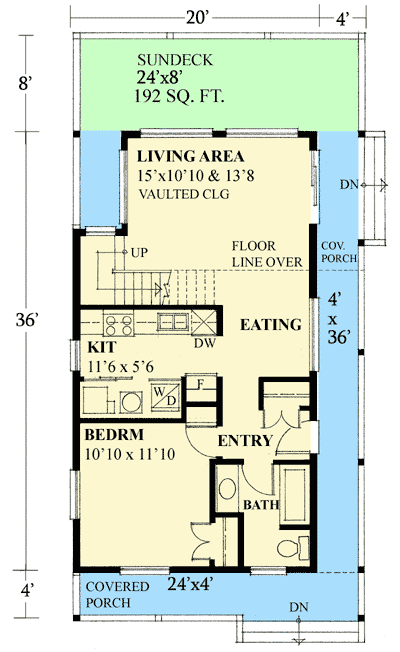

Main Level
floor plan image Main Level

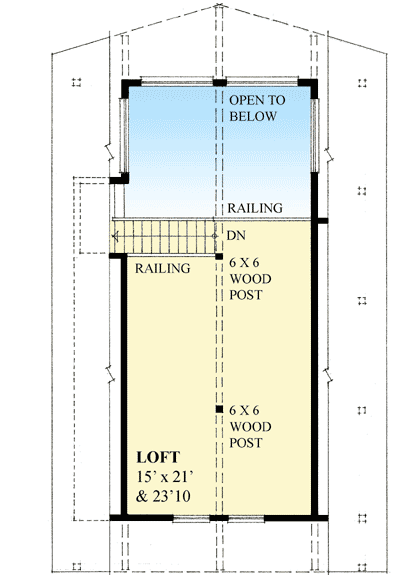

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This narrow house plan comes equipped with all the essentials on the main level. The ample galley kitchen also hosts a stacking washer dryer unit in a conveniently accessible mechanical closet.
  • The adjacent eating area is open to the living area making it an expandable space flooded by the two storey front window wall.
  • The second level loft provides abundant sleeping space or you could turn this into a private exercise or yoga retreat.
  • Plans come with a crawl space foundation plan.
  • Related Plan: Get a smaller version with house plan 9804SW (582 square feet).
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,062 sq. ft.

1st Floor

688 sq. ft.

2nd Floor

374 sq. ft.

Deck

192 sq. ft.

Porch, Front

272 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

40' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Mountain

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,062 sq. ft.

1st Floor

688 sq. ft.

2nd Floor

374 sq. ft.

Deck

192 sq. ft.

Porch, Front

272 sq. ft.

Beds/Baths

Bedrooms

1 or 2

Full bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

24' 0"

Depth

40' 0"

Max Ridge Height

23' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cottage

Mountain

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 1st Floor

Plan Collections

Canadian House Plans

Photo Gallery
