Plan 80674PM
Vacation Getaway Cottage
Heated S.F.
480
Beds
1
Baths
1
Stories
1
Floor Plan

Plan 80674PM

Main Level
slide image 0

Plan 80674PM

1-800-854-7852

1-262-521-4596

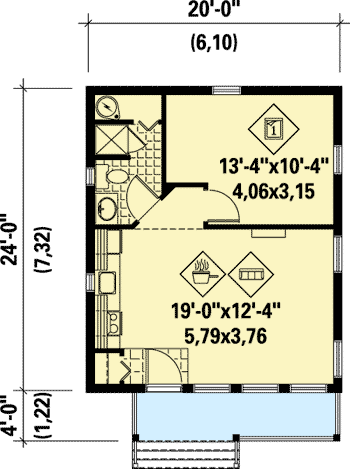

Main Level
floor plan image Main Level
Plan Details
  • A Contemporary style enhances this one bedroom vacation getaway cottage.
  • Transom windows bring in extra light and vaulted ceilings let the hot air rise.
  • The efficient kitchen lies all along one wall, saving space.
  • The covered front porch has room for chairs or a hammock.
What's Included
Please note this plan is designed to the National Building Code of Canada.

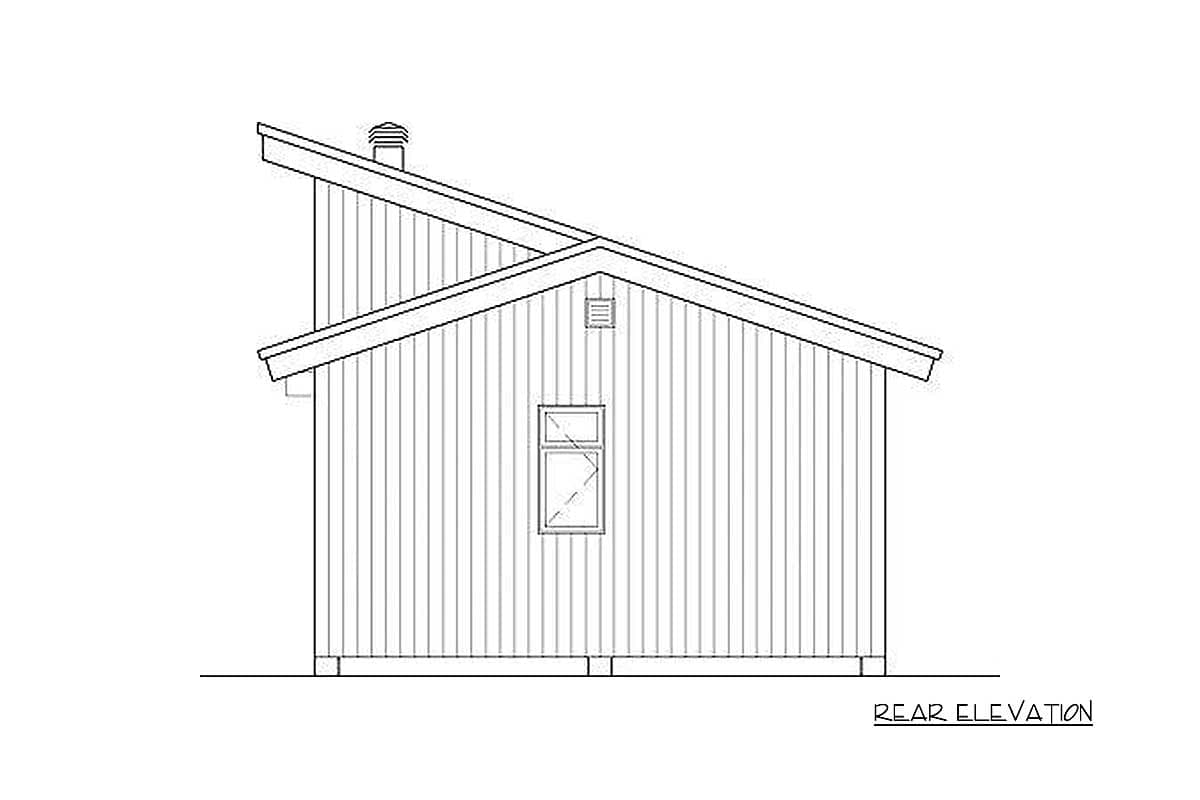

  • Exterior Elevations – Four detailed exterior elevations views showing the final appearance of each side of the house.
  • Foundation Plans – Different isometric views with dimensions as well as relevant information to build the foundation.
  • Floor Plans – A drawing of each floor of the house. They are fully dimensioned showing the size of rooms and the location and size of windows, doors and staircases.
  • Cross-Section View – Vertical section of the house showing the structure, insulation, typical wall configuration as well as other details
  • The plans include the 4 elevations views, foundation plans, floor plans, cross section, staircase section, materials specifications and various construction details which aid in the house's construction.
  • The plan views, cross sections and front elevations are drawn to the scale of 1/4" = 1'-0"; the side and rear elevations are 1/8" = 1'-0" and some details are 1/2" = 1'-0".
  • Lintel, beam, post, footing sizes, etc. are calculated (may require local architect/ engineer stamp) and the plans are available in metric.

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

480 sq. ft.

1st Floor

480 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

24' 0"

Max Ridge Height

19' 5"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Cottage

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Canadian House Plans

Metric

Photo Gallery

Tiny Home House Plans

Square Footage Breakdown

Total Heated Area

480 sq. ft.

1st Floor

480 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

20' 0"

Depth

24' 0"

Max Ridge Height

19' 5"

Ceiling Heights

First Floor

8'

Roof Details

Primary Pitch

4 on 12

Framing Type

Truss

Architectural Style

Contemporary

Cottage

Mountain

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Canadian House Plans

Metric

Photo Gallery

Tiny Home House Plans
