Plan 9805SW
Vacation Hideaway
Heated S.F.
1,333
Beds
2
Baths
2
Stories
2
Floor Plan

Plan 9805SW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9805SW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Complete with extensive decking on both the first and second floors, this vacation cottage is a true retreat from the everyday world.

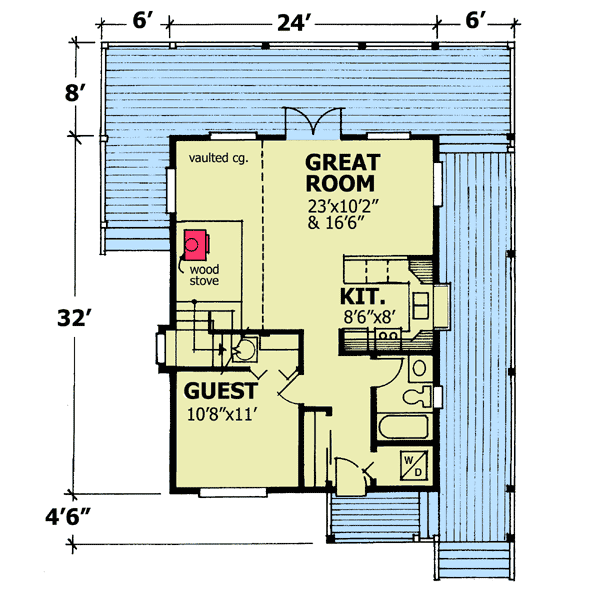

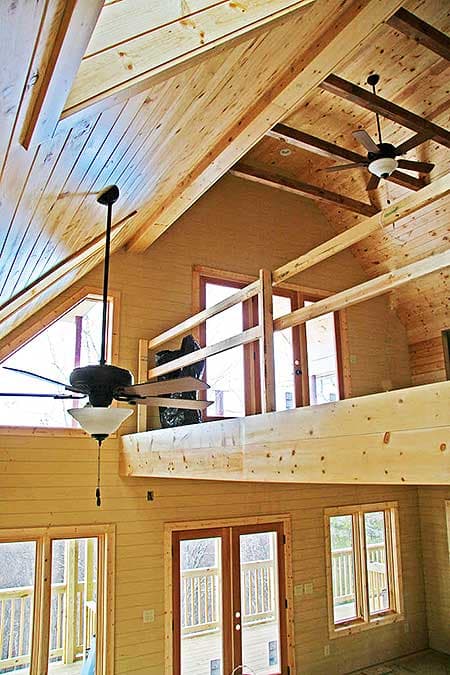

  • On the first floor, a woodstove warms the great room, part of which is overlooked by the studio above. French doors open to the deck. A guest room, full bath and laundry closet complete the floor.

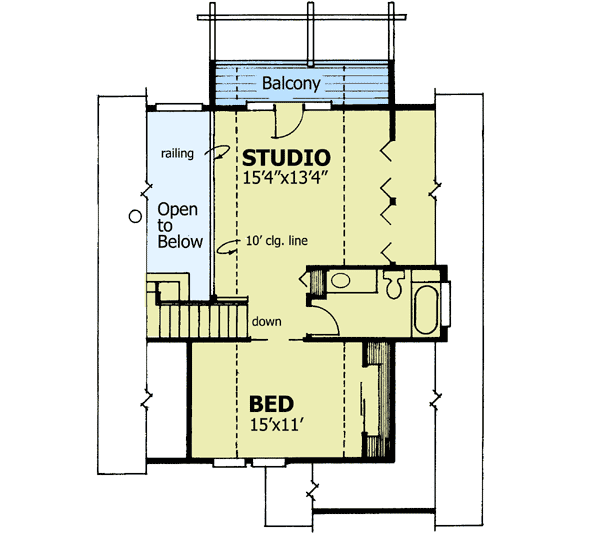

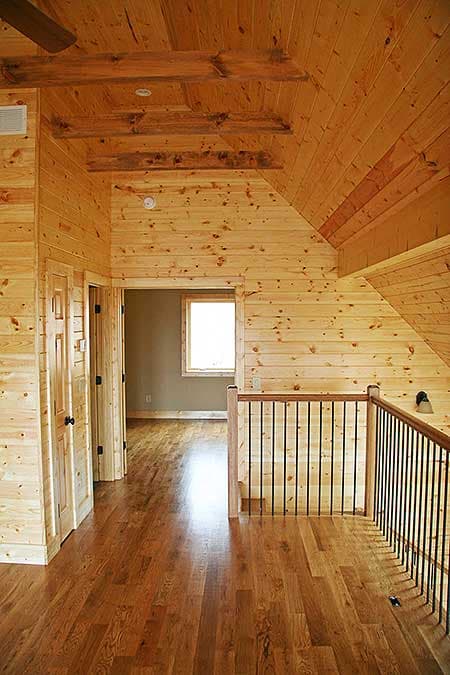

  • More French doors in the studio upstairs access the second-floor deck. The master bedroom and bath are also found upstairs.
  • Related Plans: Get an extra bedroom with house plan 9812SW (1,370 sq. ft.) and 9833SW (1,538 sq. ft.).
  • Also see these related house plans: 9801SW, 9807SW, 9808SW and 9810SW.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required

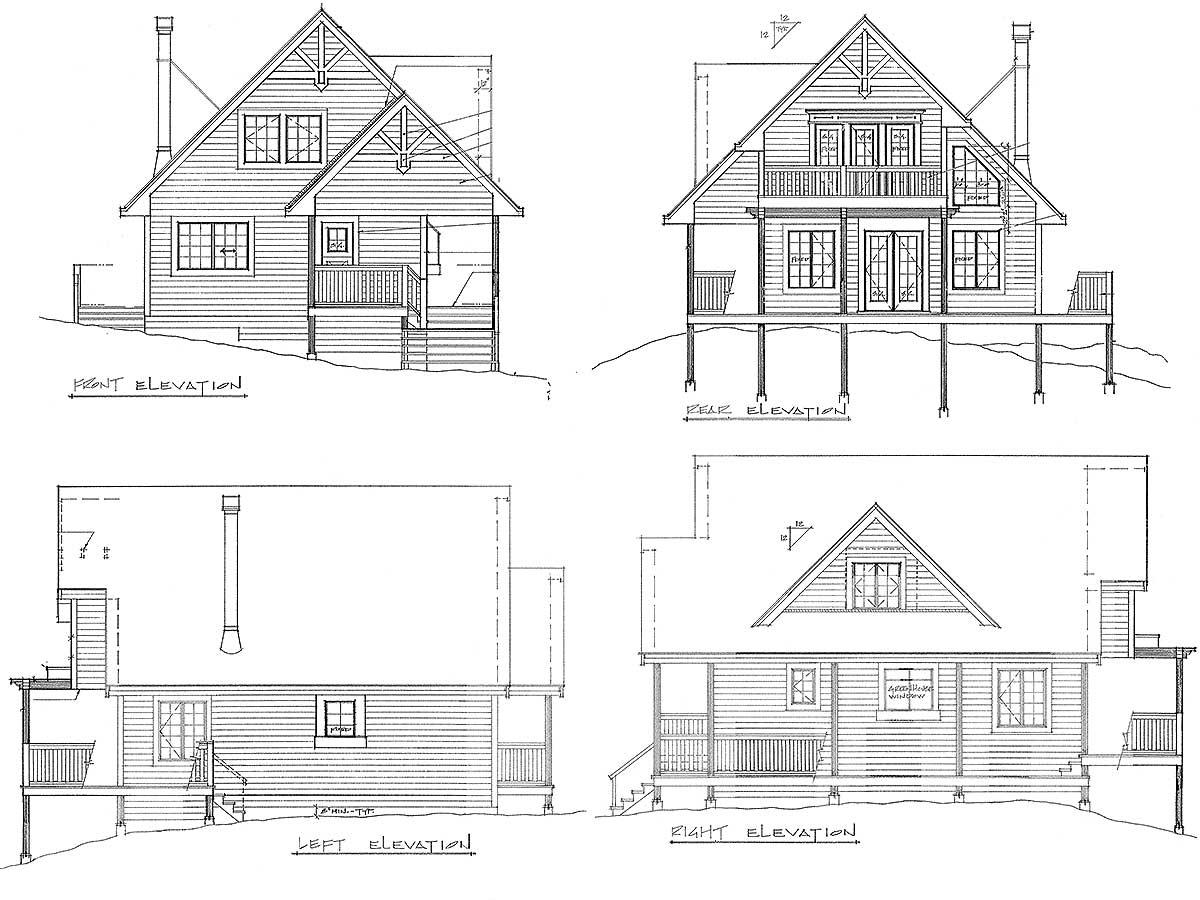

  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,333 sq. ft.

1st Floor

768 sq. ft.

2nd Floor

565 sq. ft.

Porch, Combined

328 sq. ft.

Deck

336 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

44' 6"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Lake House

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,333 sq. ft.

1st Floor

768 sq. ft.

2nd Floor

565 sq. ft.

Porch, Combined

328 sq. ft.

Deck

336 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

44' 6"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Lake House

Mountain

Rustic

Vacation

Special Features

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Lake House Plans

Photo Gallery
