Plan 9808SW
Vacation in the Woods
Heated S.F.
1,644
Beds
2
Baths
2
Stories
2
Floor Plan

Plan 9808SW

Main Level
slide image 0
2nd Floor
slide image 1

Plan 9808SW

1-800-854-7852

1-262-521-4596

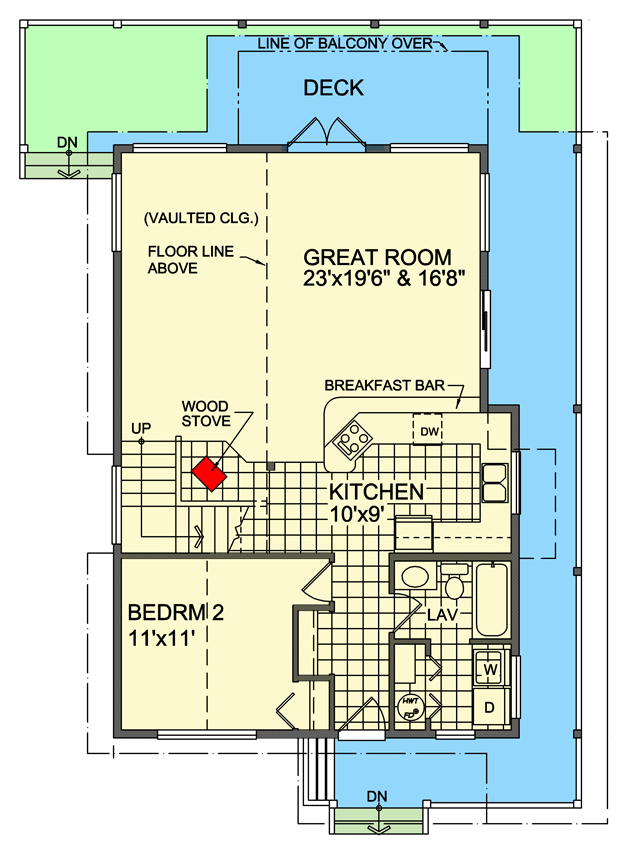

Main Level
floor plan image Main Level

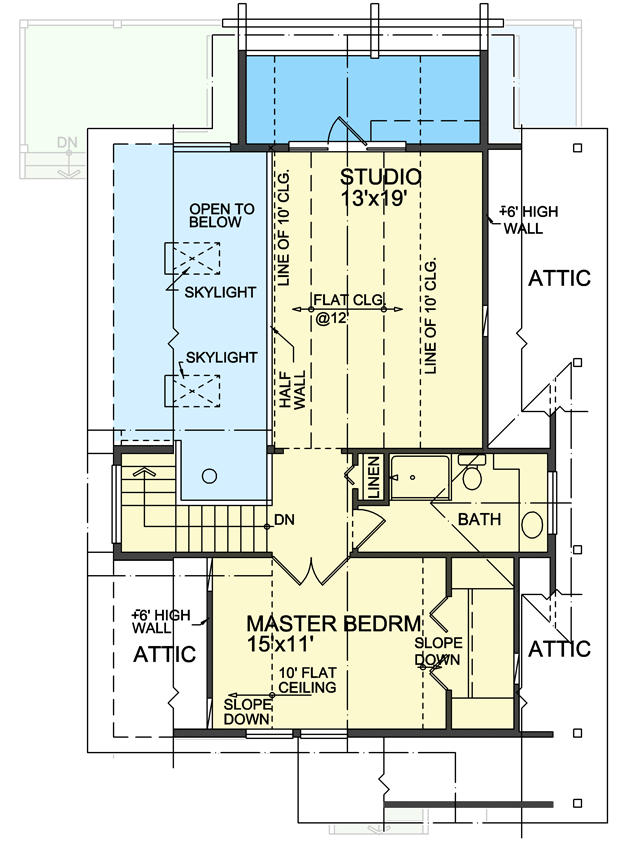

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This house plan's multi-purpose great room with wrap-around covered porch encourages relaxed entertaining and is perfectly suited for evolving family activities.

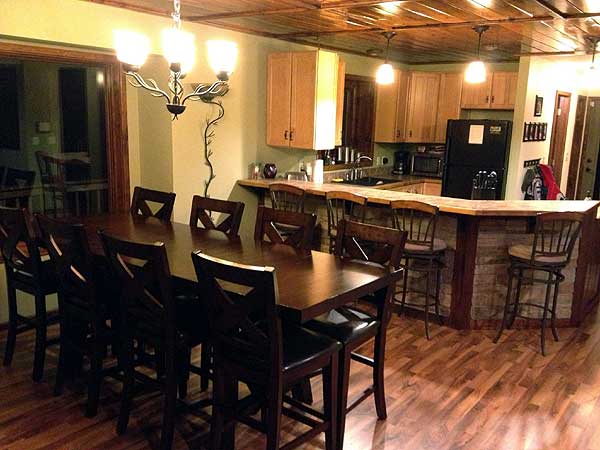

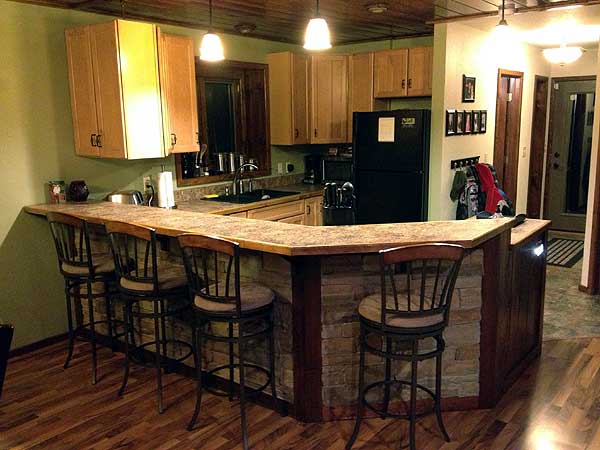

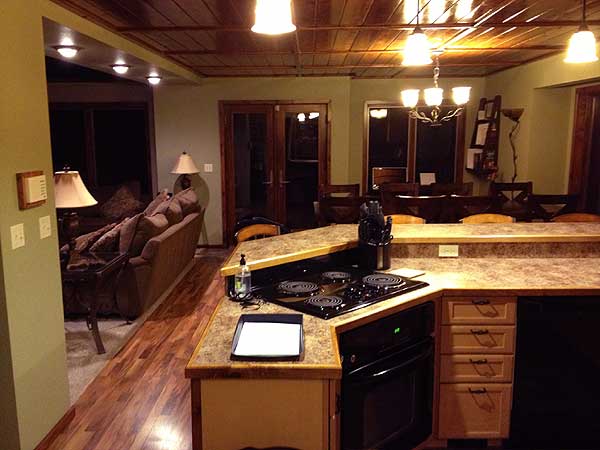

  • The large U-shaped kitchen with raised breakfast bar is open to the great room ensuring everyone is included in the fun.
  • The second level vaulted studio with private covered balcony easily transforms this retreat space into a home office or voluminous third bedroom if desired.
  • Related Plans: Get a larger master bedroom with house plan 9812SW. And downsize slightly with house plan 9833SW (1,538 sq. ft.)
  • Also see these related house plans: 9801SW, 9805SW, 9807SW and 9810SW.
What's Included
  • Cover sheet with rendering
  • General notes and specifications
  • Foundation plan
  • Fully dimensioned floor plan - windows are called out as generic sizes
  • Structural floor/roof information either on the floor plans or separate framing plans for more complex designs
  • Electrical
  • Cross sections
  • Details as required
  • Elevations
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
  • Interior Cabinet Elevations or Window Schedules
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,644 sq. ft.

1st Floor

955 sq. ft.

2nd Floor

689 sq. ft.

Porch, Combined

178 sq. ft.

Deck

474 sq. ft.

Beds/Baths

Bedrooms

2

Full bathrooms

2

Foundation Type

Standard Foundations

Crawl, Pier

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

36' 0"

Depth

50' 6"

Max Ridge Height

25' 0"

Ceiling Heights

First Floor

8'

Second Floor

10'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Cabin

Cottage

Mountain

Rustic

Vacation

Special Features

Home Office

Laundry - Main Level

Loft

Master Suite - 2nd Floor

Wrap Around Porch

Plan Collections

Canadian House Plans

Photo Gallery
