Plan 1801DW
Vaulted Craftsman Masterpiece
Heated S.F.
3,086
Beds
5
Baths
4
Stories
1
Cars
2
Floor Plan

Plan 1801DW

Main Level
slide image 0
Lower Level
slide image 1

Plan 1801DW

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Lower Level
floor plan image Lower Level
Plan Details
  • This Craftsman masterpiece features vaulted rooms throughout the main living level. The cupola lets in light throughout the space making this a dramatic house plan indeed.
  • Walk through the front doors and take in the front-to-back views.

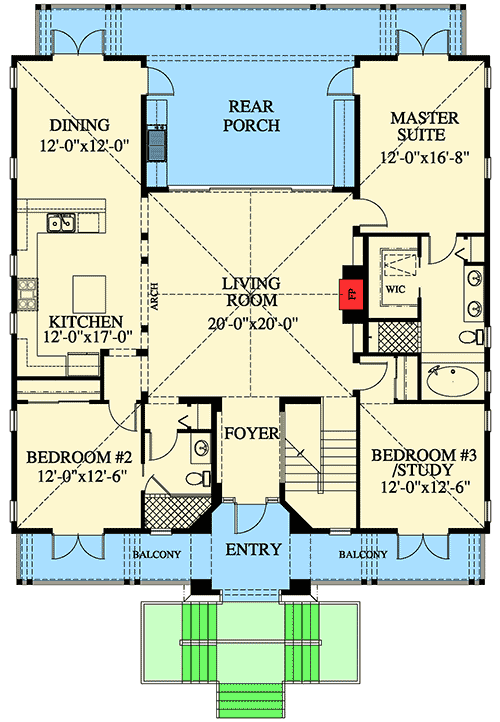

  • The bedrooms in front of the house are separated from the master suite in the rear for added privacy. The master suite opens to the rear balcony and porch, as does the dining room.

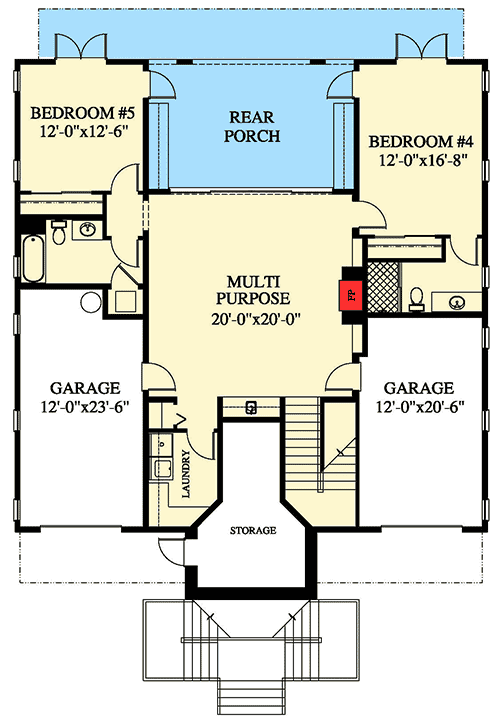

  • A finished lower level gives you an open multi-purpose space and two bedroom suites with rear porch access. You'll also find laundry and parking for 2 cars.
  • Related Plans: Get an attached garage with house plans 1795DW (3-car) and 1794DW (2-car). Eliminate the garage with house plans 1782DW and 1790DW (both 1,867 sq. ft.) and 1798DW (1,622 sq. ft.)..
What's Included
This house plan has 12 pages as follows:
  1. Cover page
  2. Plumbing dimension plan (schematic)
  3. 1st floor noted floor plan
  4. 2nd floor noted floor plan
  5. 1st floor dimensioned floor plan
  6. 2nd floor dimensioned floor plan
  7. 1st floor electrical layout plan
  8. 2nd floor electrical layout plan
  9. Roof plan (schematic)

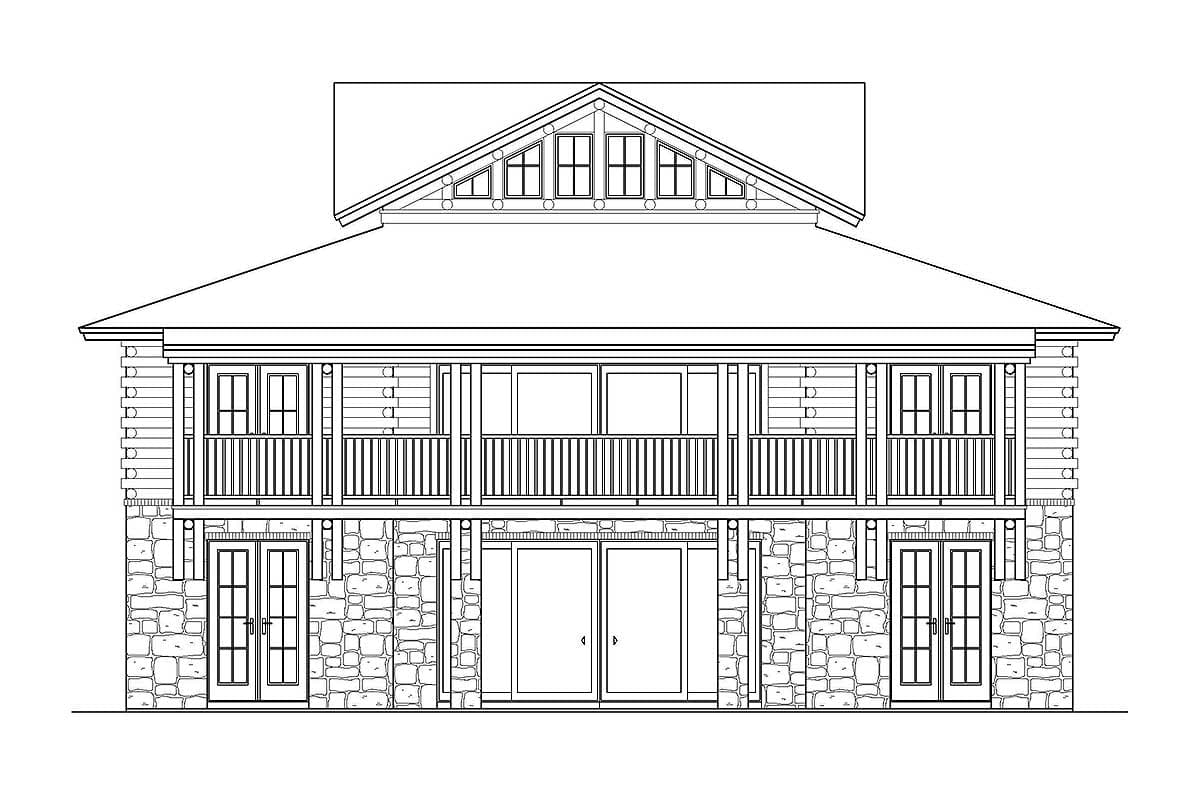

  10. Front and rear elevations
  11. Left and right elevations
  12. Sections
NOTE: The designer of this plan does not supply foundation plans. A local structural engineer will be required to adjust them to suit the conditions of where you are building.
What's Not Included
Document
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
  • Materials list - MAY be available as a purchasable option under the "Options" tab
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,086 sq. ft.

Lower Level

1,191 sq. ft.

1st Floor

1,895 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 8"

Depth

53' 4"

Max Ridge Height

31' 0"

Garage

Type

Drive Under

Area

557 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

8' 8"

Roof Details

Framing Type

Stick Or Truss

Architectural Style

Craftsman

Mountain

Vacation

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

3,086 sq. ft.

Lower Level

1,191 sq. ft.

1st Floor

1,895 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

46' 8"

Depth

53' 4"

Max Ridge Height

31' 0"

Garage

Type

Drive Under

Area

557 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

Lower Level

10'

First Floor

8' 8"

Roof Details

Framing Type

Stick Or Truss

Architectural Style

Craftsman

Mountain

Vacation

Special Features

Bedrooms - Clustered

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor
