Plan 24113BG

Vaulted Craftsman with Views

Heated S.F.

3,214

Beds

3

Baths

3

Stories

1

Floor Plan

Main Level

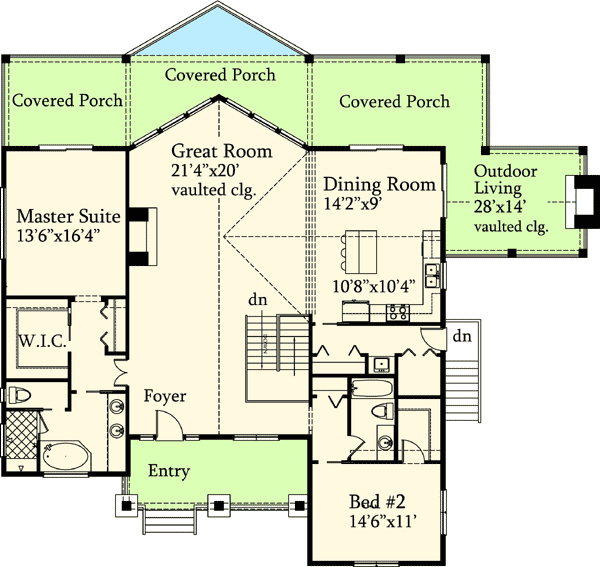

floor plan image Main Level

Basement

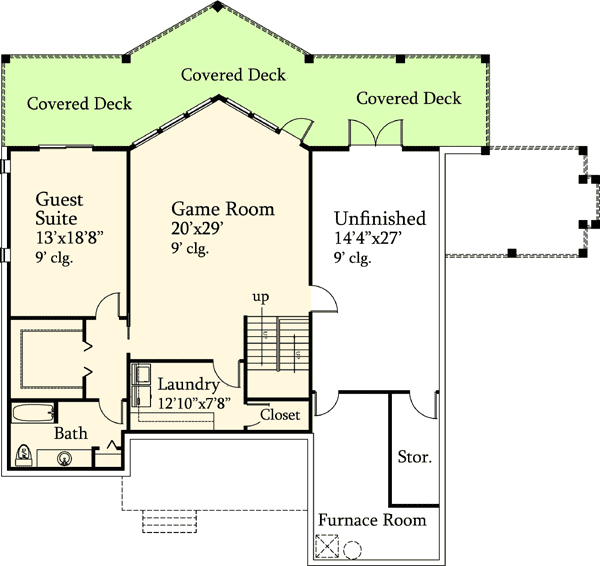

floor plan image Basement

Plan Details

Walls of glass and vaulted ceilings create a stunning great room in this Craftsman home plan.
An outdoor living area is also vaulted with a cozy fireplace.
Two sliding glass doors in the dining area lead to the porches.
The first floor master suite also has access to the rear covered porch as well as a big walk-in closet and large, private bath.
Have fun in the huge lower level game room with another spacious bedroom close by.
Please Note: This house plan is restricted from use in Fannin County, Georgia.

What's Included

Cover page showing front elevation, contents and notes
Fully dimensioned floor plans including ceiling heights
Roof plan
All four exterior elevations
Typical cross section
Suggested electrical schematic

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Framing - layouts with beam sizes and locations
Energy calculations - handled locally when required
Roof truss design - to be created by the truss manufacturer in accordance with local code requirements

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

3,214 sq. ft.

Lower Level

1,224 sq. ft.

1st Floor

1,990 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

64' 0"

Max Ridge Height

21' 10"

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Premium Collection

Square Footage Breakdown

Total Heated Area

3,214 sq. ft.

Lower Level

1,224 sq. ft.

1st Floor

1,990 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

3

Foundation Type

Standard Foundations

Basement, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

68' 0"

Depth

64' 0"

Max Ridge Height

21' 10"

Ceiling Heights

Lower Level

9'

First Floor

10'

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Master Suite - 1st Floor

Plan Collections

Premium Collection
