Plan 86258HH
Vaulted Game Room
Heated S.F.
3,089
Beds
4
Baths
3.5
Stories
2
Cars
3
Floor Plan

Plan 86258HH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 86258HH

1-800-854-7852

1-262-521-4596

Main Level

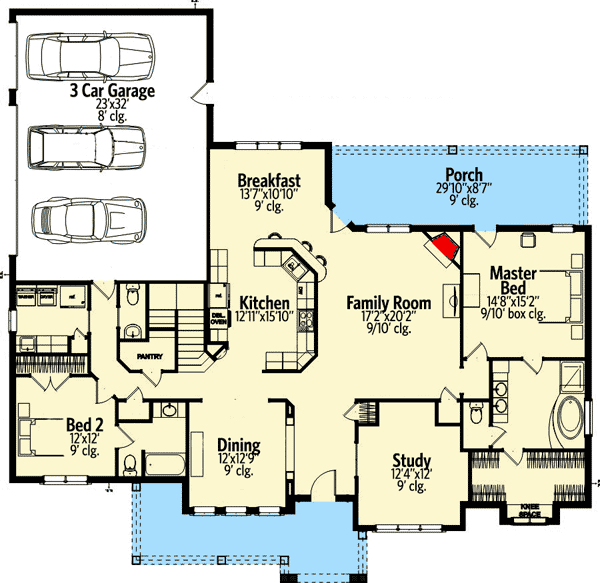

floor plan image Main Level
2nd Floor

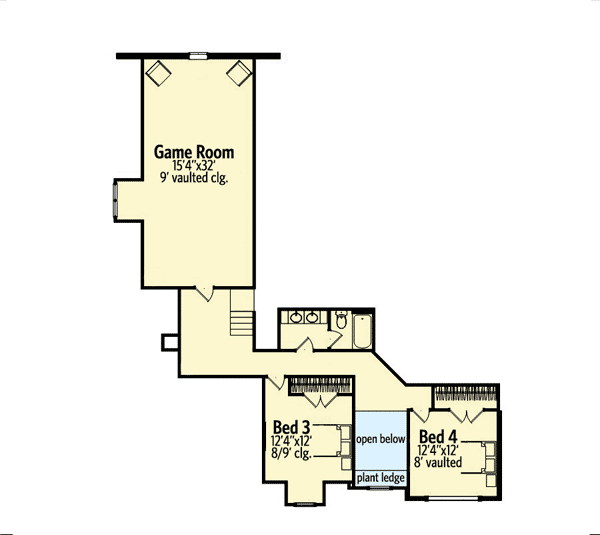

floor plan image 2nd Floor
Plan Details
  • Cascading gables and a lovely hip roof make this no ordinary Traditional house plan.
  • Large comfortable rooms on the main floor flow seamlessly together thanks to the open floor plan.
  • A first floor guest suite lies on the opposite side of the house from the master suite.
  • Sit at the peninsula eating bar of the kitchen where there's room for three stools.
  • A walk-in pantry is just around the corner, providing you with lots of storage.
  • On the upper floor, two bedrooms have easy access to the huge game room with its 9' vaulted ceiling.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

3,089 sq. ft.

1st Floor

2,364 sq. ft.

2nd Floor

725 sq. ft.

Bonus

553 sq. ft.

Porch, Combined

516 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

69' 1"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

790 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

3,089 sq. ft.

1st Floor

2,364 sq. ft.

2nd Floor

725 sq. ft.

Bonus

553 sq. ft.

Porch, Combined

516 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

69' 1"

Max Ridge Height

28' 3"

Garage

Type

Attached

Area

790 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

9'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Game/Rec Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Plan Collections

Photo Gallery
