Plan 39184ST
Vaulted Great Room and One-Level Living
Heated S.F.
1,694
Beds
3
Baths
2
Stories
1
Cars
2
Floor Plan

Plan 39184ST

Basement
slide image 0
Main Level
slide image 1

Plan 39184ST

1-800-854-7852

1-262-521-4596

Basement
floor plan image Basement

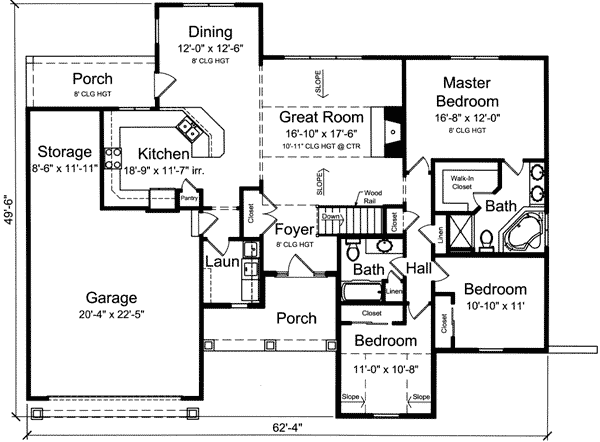

Main Level
floor plan image Main Level
Plan Details
  • A large kitchen and dining area open generously to the great room offering a view to the fireplace and to the rear yard.
  • A vaulted ceiling in the great room and the open feel create a spacious environment.
  • The master bedroom with deluxe bath offers luxurious surroundings for the homeowner. Two secondary bedrooms, and a laundry room complete the first floor.
  • A large storage area is a pleasant surprise in the garage and a full basement expands the available living space.
  • The exterior of siding and stone adds color and richness to the fa'ade.
  • Related Plans: See these modified versions of this house plan - 39054ST and 3916ST (in reverse layout).
What's Included
  • General notes and specifications
  • Front, rear and side elevations at (1/4" scale)
  • Foundation plan (1/4" scale) indicating beam and column sizes along with lower level framing
  • Reinforced foundation and footing details
  • First floor plan (1/4" scale) includes all necessary framing information, window rough openings, beam sizes and framing details for specialized areas
  • Stairs, sections, cabinet layouts, window flashing and miscellaneous details necessary for understanding of construction methods
  • Roof plan (1/8" scale) indicating pitches and wall height as well as truss profiles indicating heel heights and raised ceiling areas
  • Wall section indicating standard materials and detailing for typical wall construction
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,694 sq. ft.

1st Floor

1,694 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 4"

Depth

49' 6"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

551 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor

Square Footage Breakdown

Total Heated Area

1,694 sq. ft.

1st Floor

1,694 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

62' 4"

Depth

49' 6"

Max Ridge Height

22' 6"

Garage

Type

Attached

Area

551 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

8'

Roof Details

Framing Type

Truss

Architectural Style

Ranch

Special Features

Bedrooms - Clustered

Master Suite - 1st Floor
