Plan 17554LV
Versatile Loft
Heated S.F.
2,894
Beds
4
Baths
3.5
Stories
2
Cars
2
Floor Plan

Plan 17554LV

Main Level
slide image 0
2nd Floor
slide image 1

Plan 17554LV

1-800-854-7852

1-262-521-4596

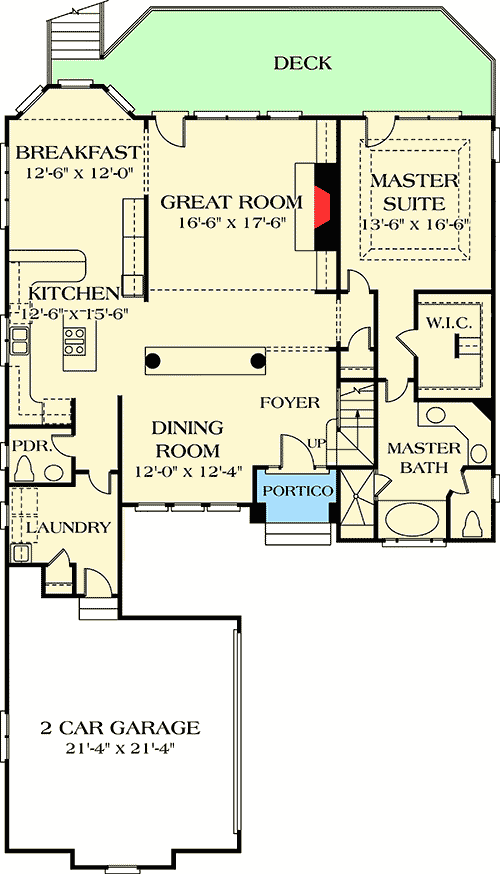

Main Level
floor plan image Main Level

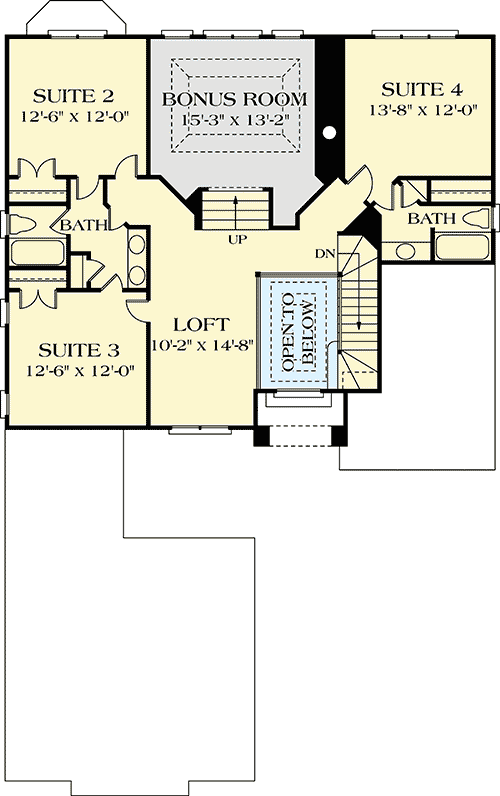

2nd Floor
floor plan image 2nd Floor
Plan Details
  • This plan features the master suite on the first level with a vaulted ceiling, walk-in closet and garden tub in the master bath.
  • Upstairs there are three additional bedrooms and two baths along with a versatile loft.
What's Included
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,894 sq. ft.

1st Floor

1,751 sq. ft.

2nd Floor

1,143 sq. ft.

Bonus

206 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

45' 0"

Depth

72' 6"

Garage

Type

Attached

Area

526 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Second Floor

8'

Architectural Style

Traditional

Special Features

Bonus Room

Jack & Jill Bath

Laundry - Main Level

Loft

Master Suite - 1st Floor
