Plan 68769VR
Versatile Modern ADU House Plan
Heated S.F.
576
Beds
1
Baths
1
Stories
2
Cars
2
Floor Plan

Plan 68769VR

Main Level
slide image 0
2nd Floor
slide image 1

Plan 68769VR

1-800-854-7852

1-262-521-4596

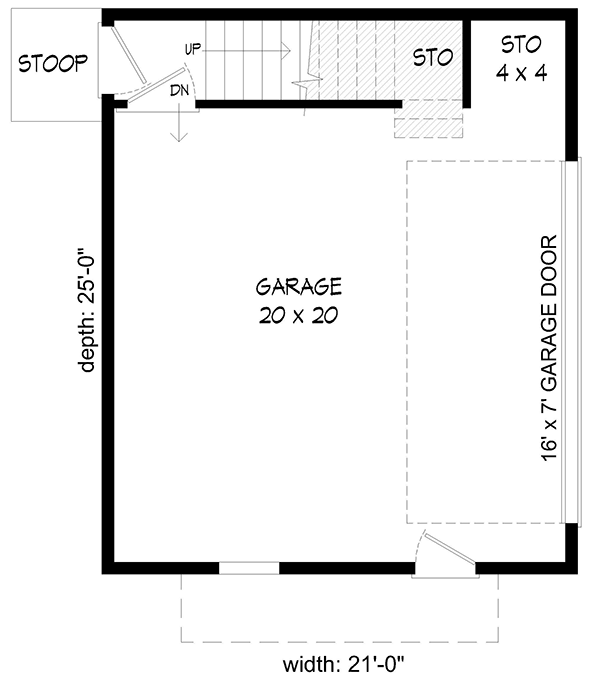

Main Level
floor plan image Main Level

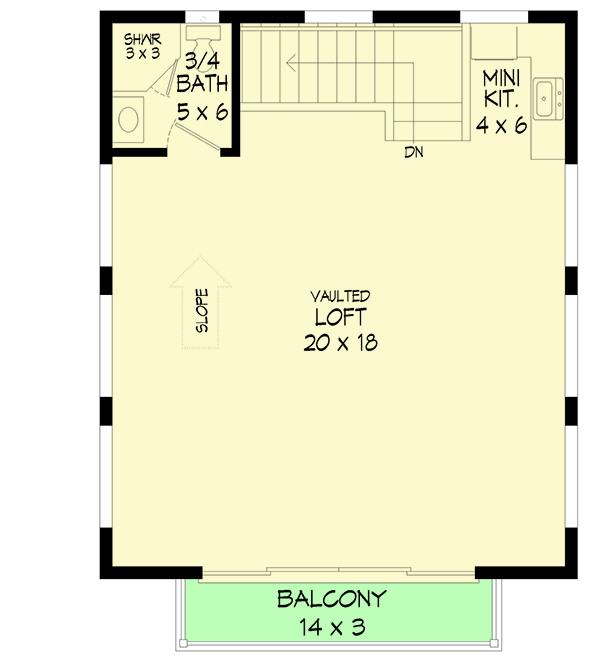

2nd Floor
floor plan image 2nd Floor
Plan Details
  • Enjoy the versatility of this modern ADU house plan, which features two exterior entries and a 16' by 7' garage on the side.
  • Upstairs, you'll find a vaulted loft with ample natural light and a balcony.
  • A mini kitchen and full bath with a shower make this space ready for anything.
  • Related Plans: Get alternate versions with plans 68557VR,  68751VR and 68780VR. Move the stairs to the outside with 68968VR.
What's Included

  • Floor Plans: House plan drawings indicating dimensions for construction
  • Roof Plan: Drawings indicating roof slopes and unique conditions
  • Exterior Elevations: Drawings showing appearance and the types of materials used for the exterior finish and trim
  • Building Sections: Drawings cut through important locations in the structure
  • Construction Details: Drawings showing specific construction of building elements at a large scale
  • Kitchen and bath elevations (excluded on garage plans)
  • Electrical Plans: Basic electrical layout (suggested locations of fixtures, switches and outlets)
  • Foundation Plan: Dimensioned drawings describing specific foundation conditions for the structure
  • Building license: A single-use license for construction at one location only

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

576 sq. ft.

1st Floor

51 sq. ft.

2nd Floor

525 sq. ft.

Balcony / Veranda

42 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

21' 0"

Depth

25' 0"

Max Ridge Height

23' 6"

Garage

Type

Attached

Area

474 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

8'

Second Floor

13'

Roof Details

Primary Pitch

3 on 12

Framing Type

Stick

Architectural Style

Carriage

Contemporary

Modern

Mountain

Vacation

Special Features

Laundry - Main Level

Loft

Plan Collections

ADU
