Plan 86245HH
Views to the Back
Heated S.F.
2,866
Beds
5
Baths
3.5
Stories
2
Floor Plan

Plan 86245HH

Main Level
slide image 0
2nd Floor
slide image 1

Plan 86245HH

1-800-854-7852

1-262-521-4596

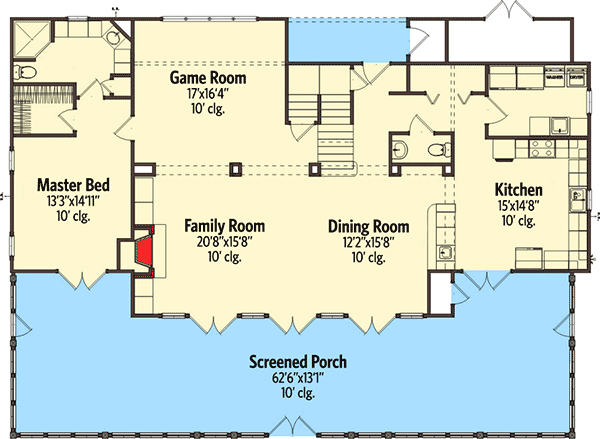

Main Level
floor plan image Main Level

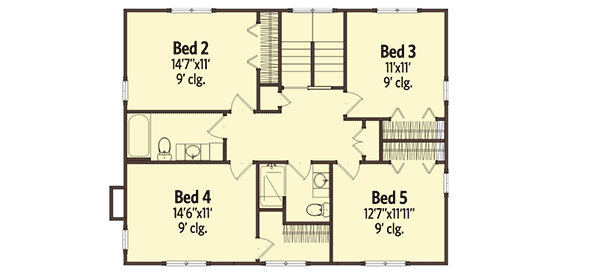

2nd Floor
floor plan image 2nd Floor
Plan Details

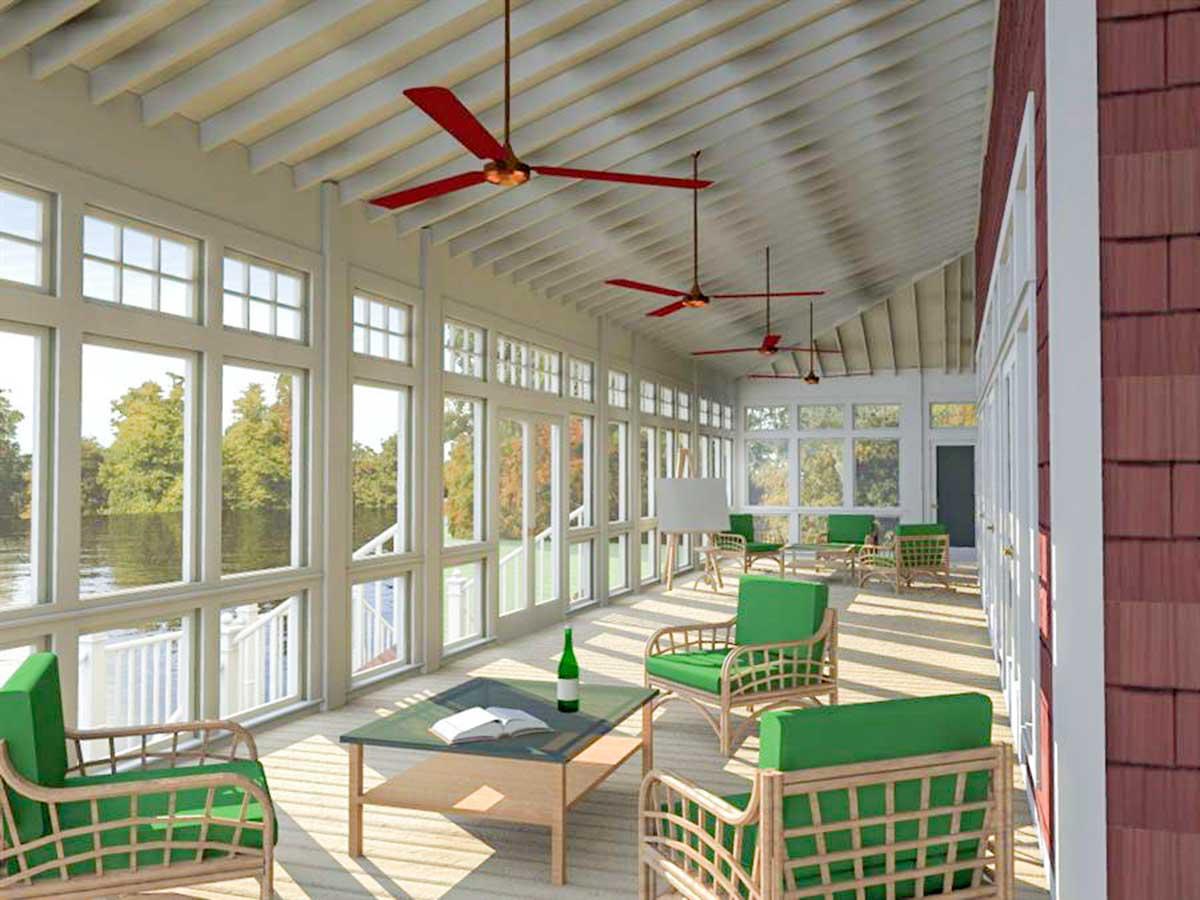

  • Pull up to the front of this house and head straight to the back. That's where the drama is. And the views. With three sets of French doors in the open living room and dining room space taking you to the 10'-deep screened porch with a span exceeding 60', you'll be spending the rest of the day there.
  • All the rooms on the main floor are designed to take full advantage of the rear views, including the master which also enjoys access to the screened porch.
  • Four beds are on the upper floor and they share two baths.
What's Included
  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,866 sq. ft.

1st Floor

1,880 sq. ft.

2nd Floor

986 sq. ft.

Porch, Combined

1,065 sq. ft.

Storage

103 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Pier

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

65' 3"

Depth

47' 3"

Max Ridge Height

29' 10"

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Beach

Southern

Traditional

Vacation

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Wrap Around Porch
