Plan 48403FM
Walk-in Closets for All
Heated S.F.
2,205
Beds
3
Baths
2.5+
Stories
1
Cars
1
Floor Plan

Plan 48403FM

Main Level
slide image 0
Bonus
slide image 1

Plan 48403FM

1-800-854-7852

1-262-521-4596

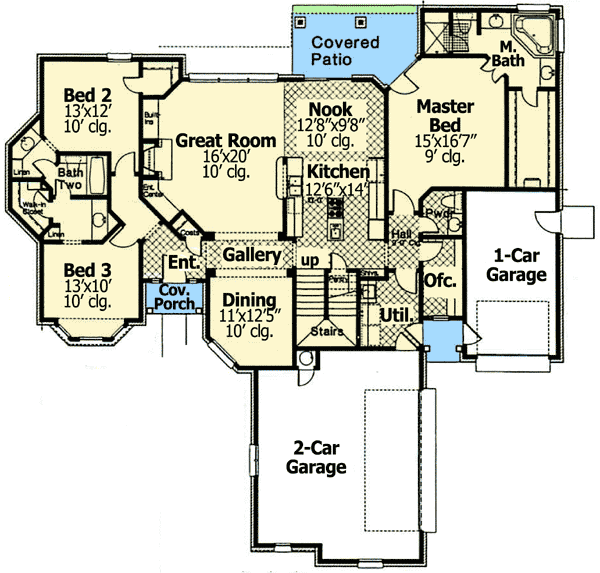

Main Level
floor plan image Main Level

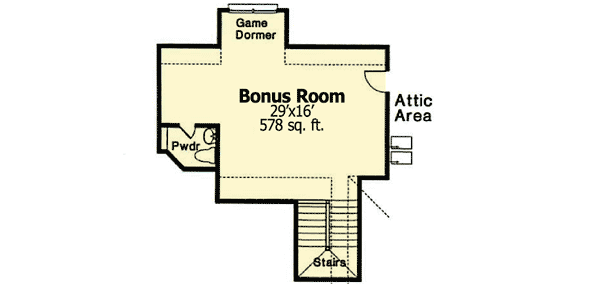

Bonus
floor plan image Bonus
Plan Details
  • Every bedroom in this compact European home plan has a large walk-in closet.
  • The master suite's closet is especially large and homeowners can walk right out to the rear covered patio from their own french door.
  • Built-ins flank the fireplace in the great room that is open to both the nook and kitchen.
  • On the opposite side of the home, two bedrooms share a jack and jill bathroom.
  • Climb up to the second floor bonus space that awaits your finishing touches.
  • Note the handy half bath on this floor.
What's Included
  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan
  • Front and Left Elevation
  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

2,205 sq. ft.

1st Floor

2,205 sq. ft.

Bonus

578 sq. ft.

Entry

32 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1 or 2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

70' 6"

Max Ridge Height

28' 0"

Garage

Type

Attached

Area

785 sq. ft.

Count

1 Cars

Entry Location

Front, Side

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Master Bedroom

9' 0''

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

6 on 12

Framing Type

Stick

Architectural Style

European

French Country

Special Features

Bedrooms - Split

Bonus Room

Breakfast Nook

Formal Dining

Jack & Jill Bath

Laundry - Main Level

Master Suite - 1st Floor

Mudroom
