Plan 62380DJ

Waterfront Country Craftsman House Plan with Walk-out Basement - 1954 Sq Ft

Heated S.F.

1,954

Beds

2 - 4

Baths

2.5 - 3.5

Stories

Cars

Floor Plan

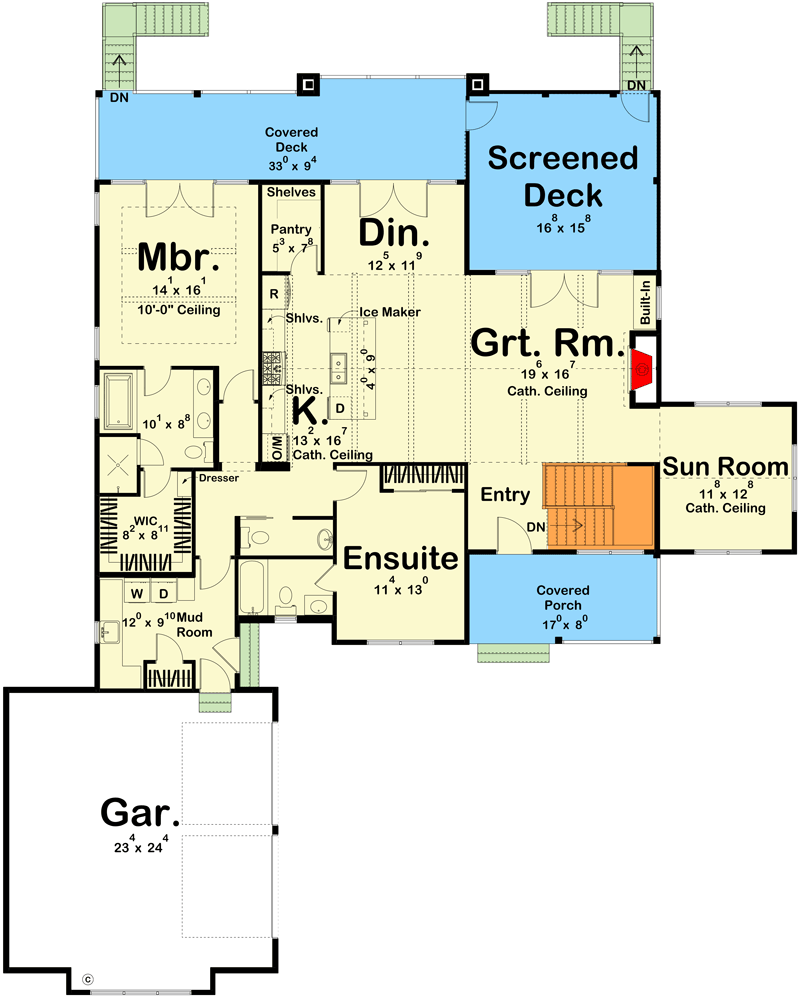

Main Level

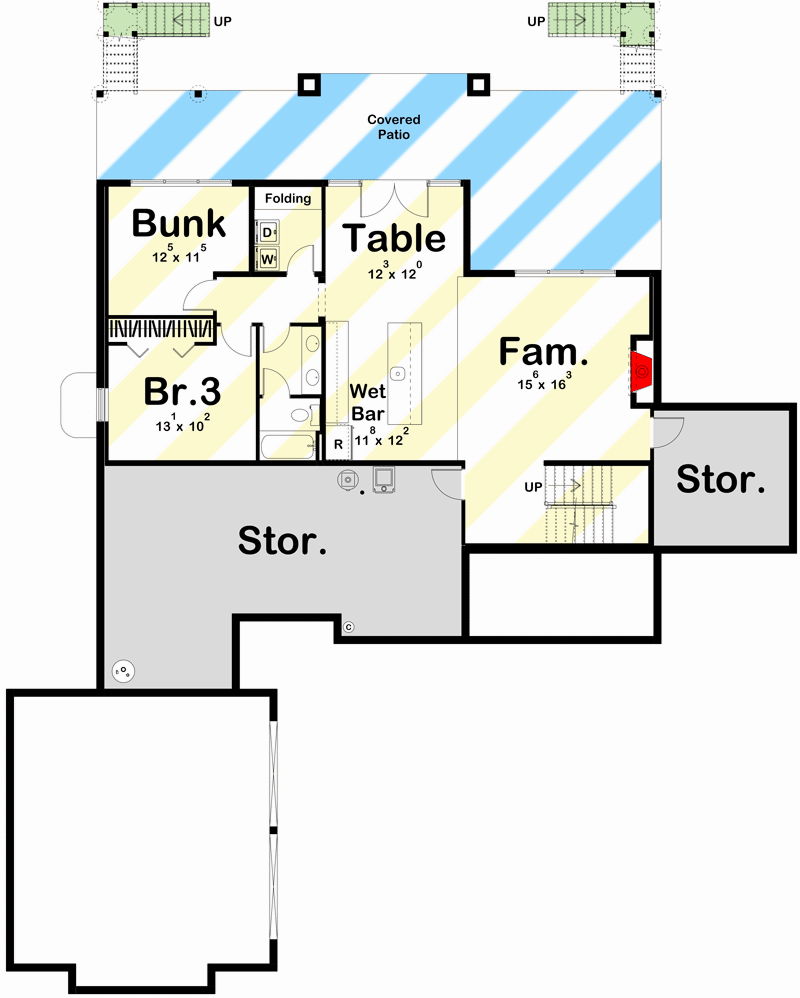

Lower Level Layout (+ $250.00)

Plan Details

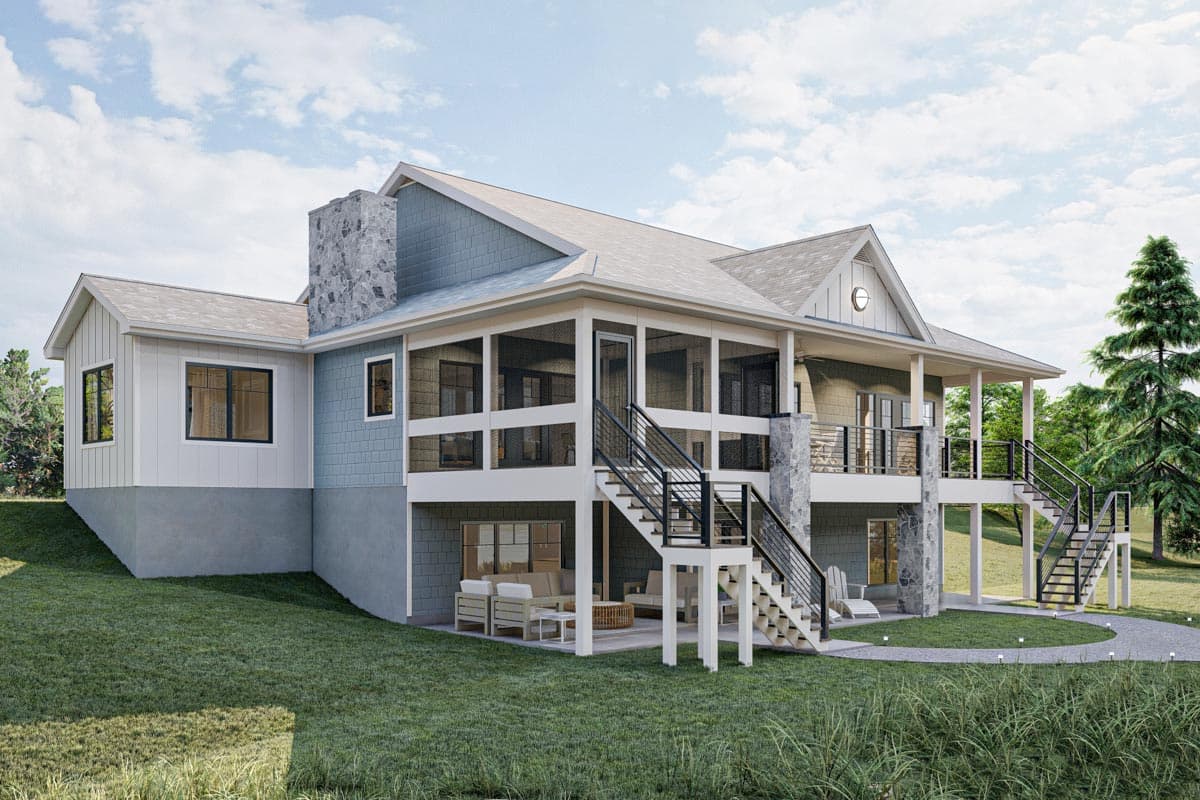

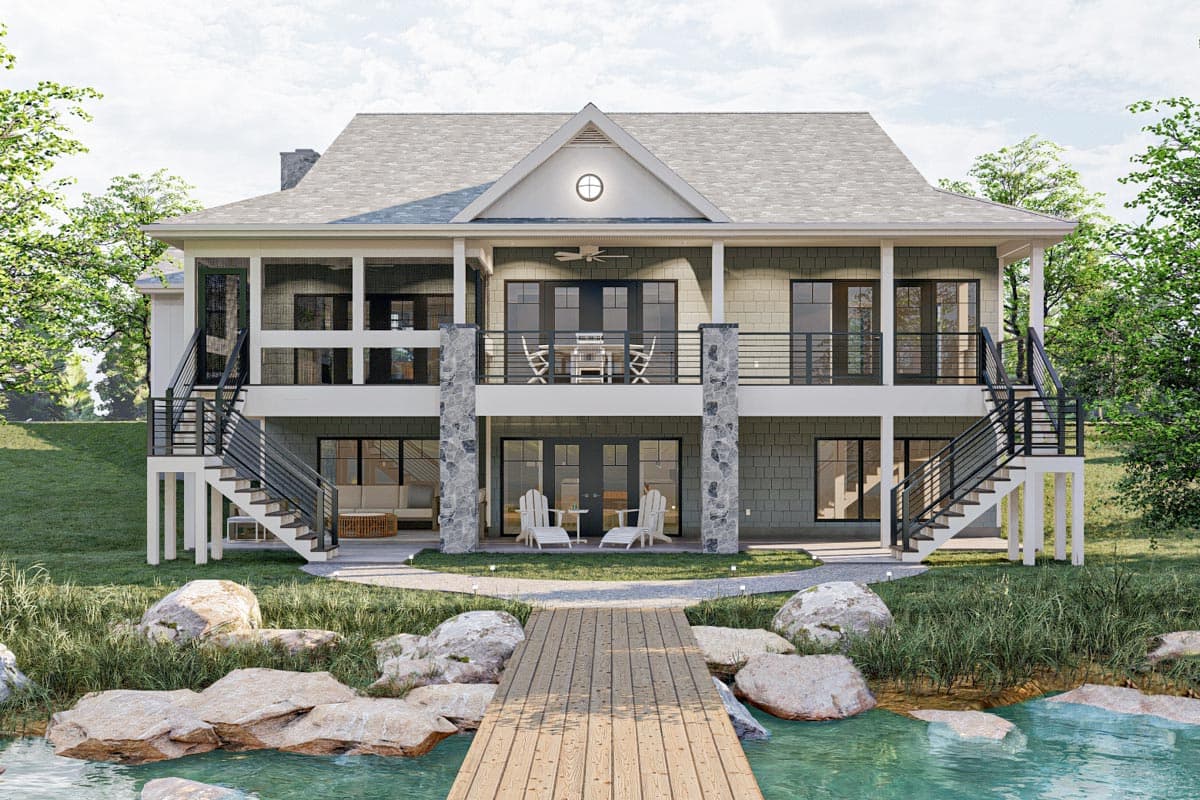

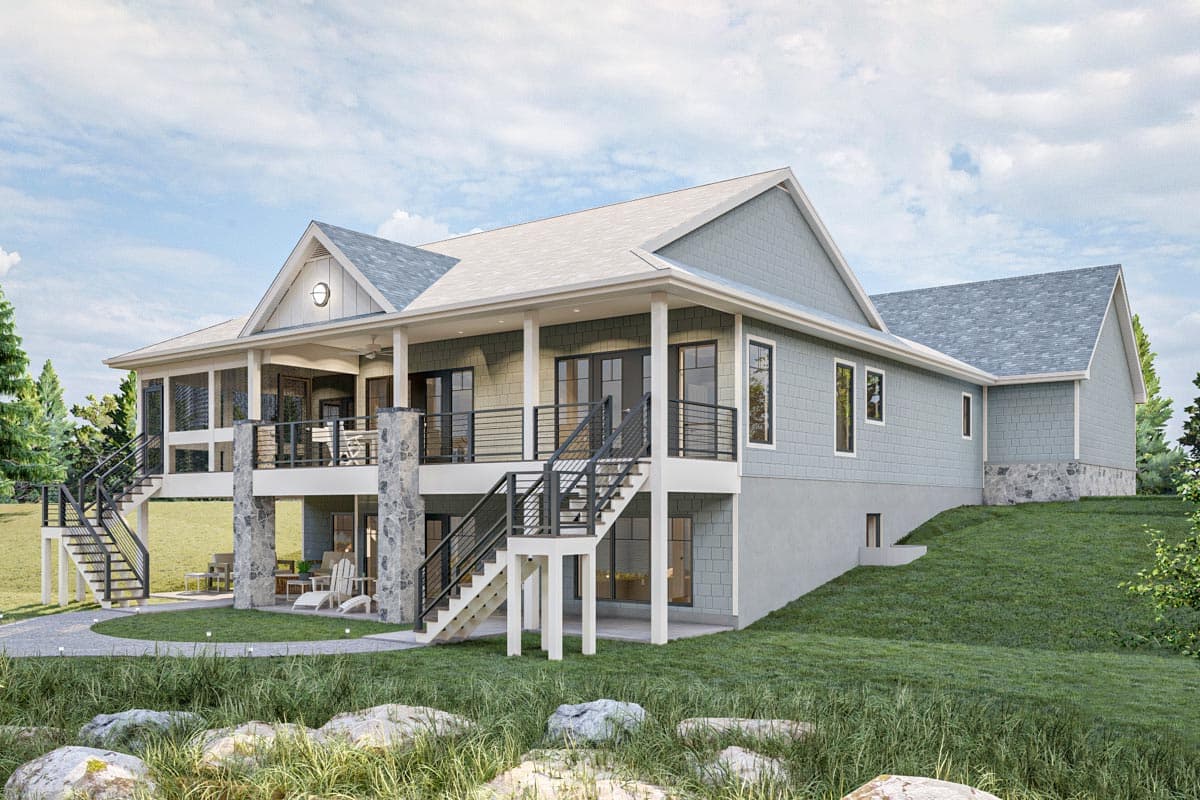

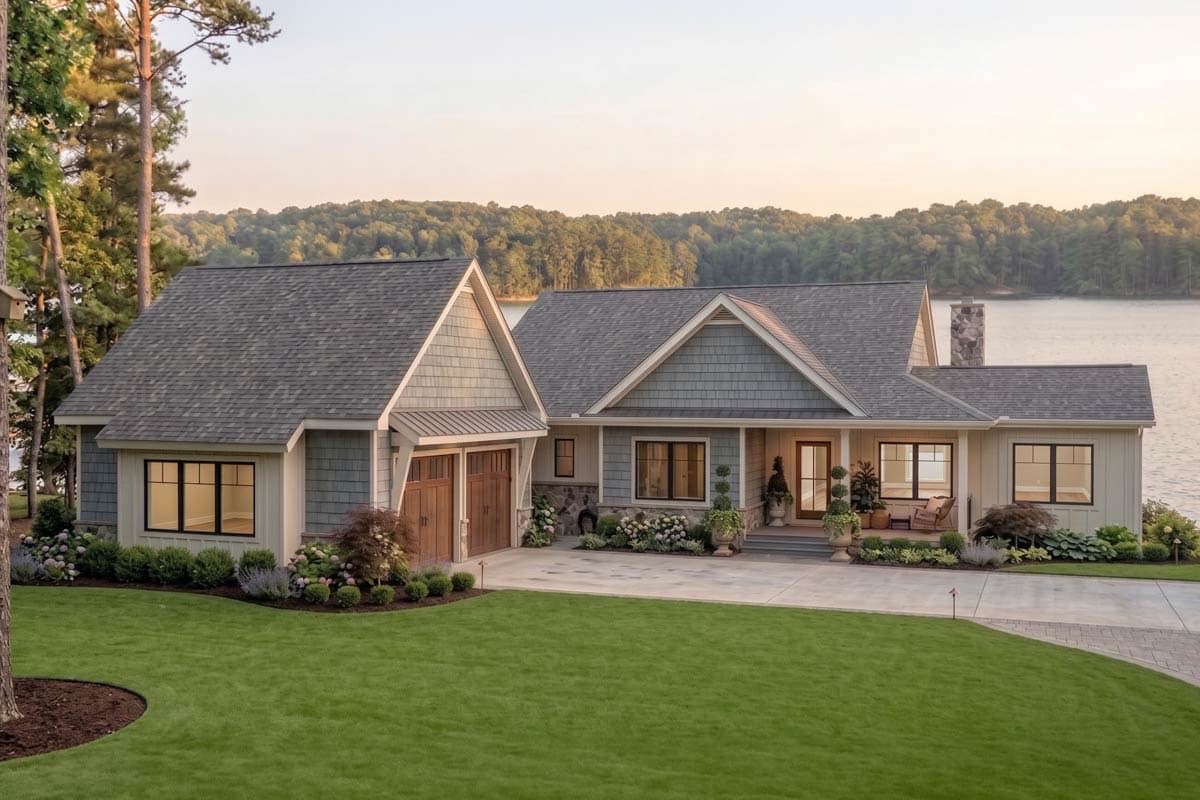

This Country Craftsman house plan is oriented to take advantage of rearward views. With its large partially-screened deck and lower-level patio, it is the perfect waterfront design.

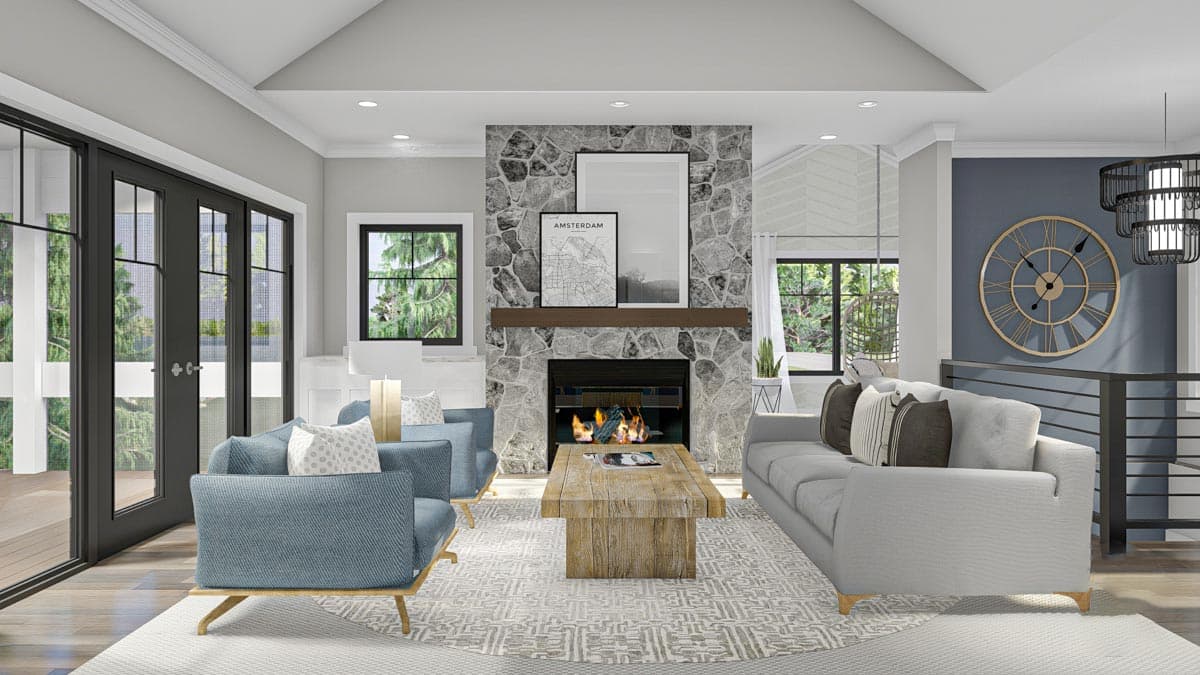

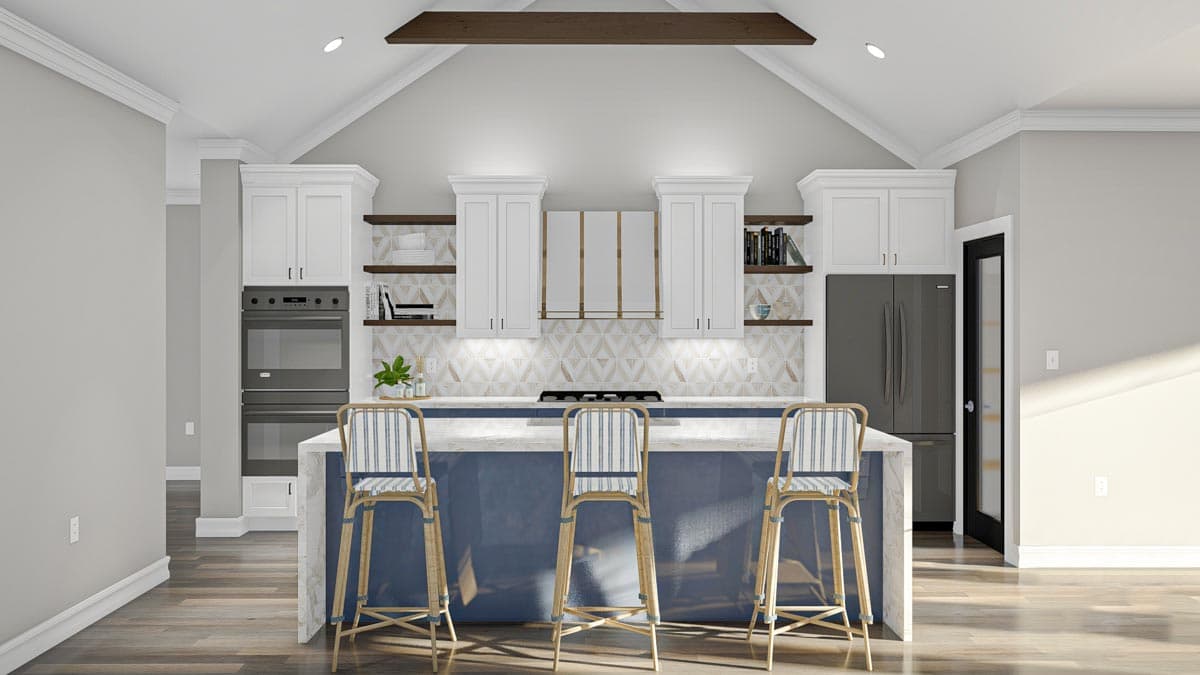

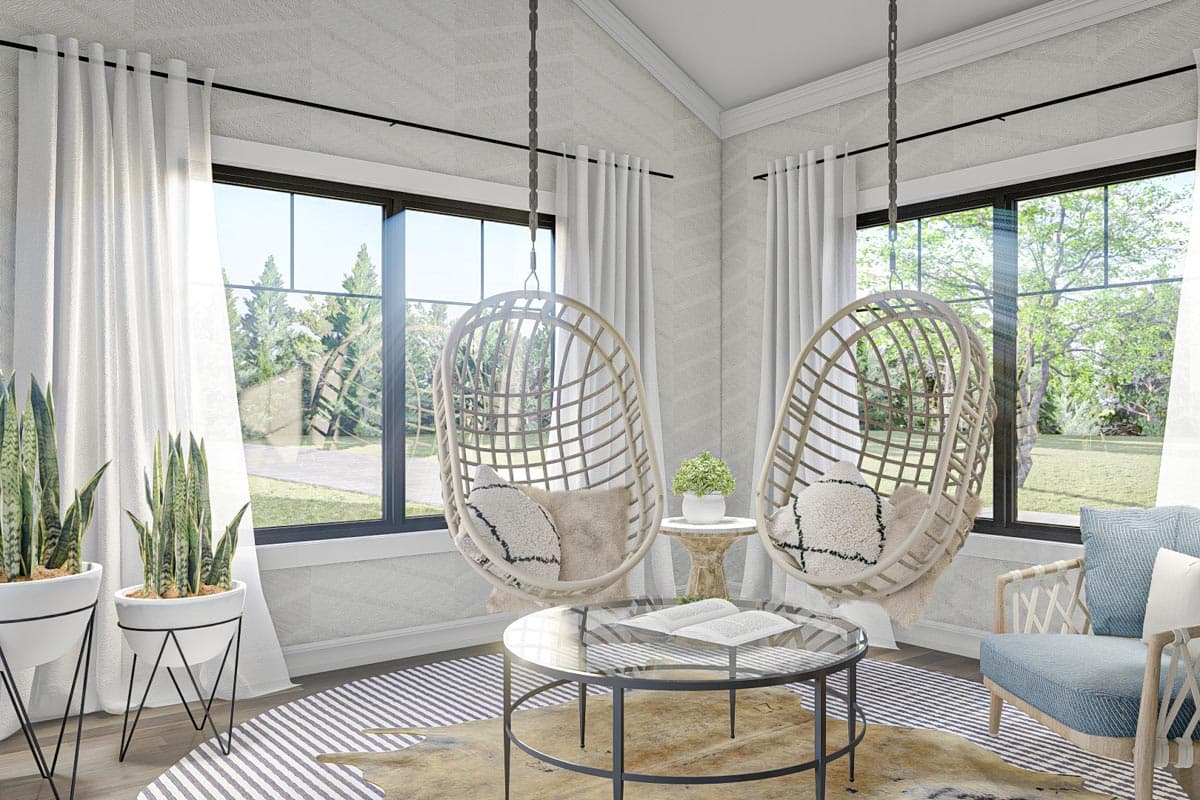

A cathedral ceiling with exposed beams soars 14'6" above the combined great room and kitchen, where an island hosts a double-bowl sink directly across from a large range. A sun room gets amazing natural light and has a 12' cathedral ceiling.
The master suite is conveniently located on the main level, and boasts french doors to the deck and a 5-fixture bathroom with a walk-in closet. A second bedroom suite is located across the hall.

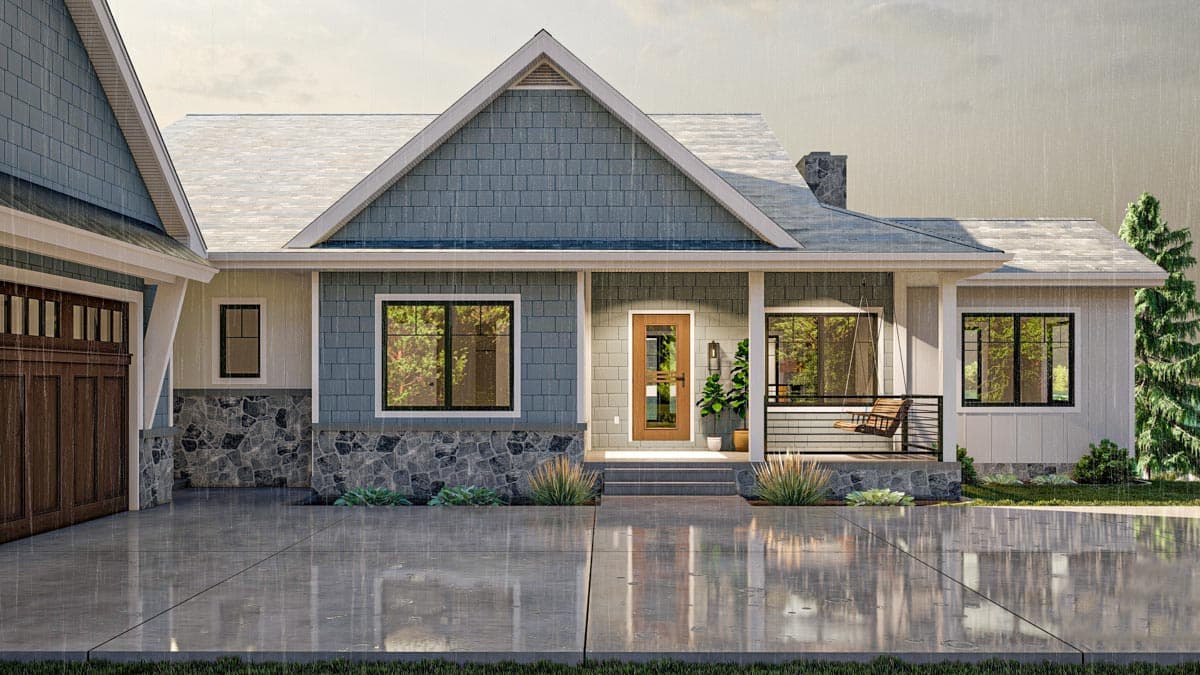

The double garage protrudes from the front of the home in order to create a parking courtyard, and a mudroom just inside features a coat closet, utility sink, and laundry.
A second family room with a wet bar can be found on the lower level, along with a third bedroom and bunk room. French doors lead to the lower patio, which provides stairs to the primary deck above.

What's Included

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical Wall Section
Typical Stair Section (if applicable)
Cabinets Elevations (if applicable)

View Sample Plan

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required
