Plan 871026JEN

Waterfront Craftsman Plan with Stacked Rear Porches

Heated S.F.

5,072

Beds

3 - 4

Baths

4.5

Stories

3

Cars

2

Floor Plan

Main Level

floor plan image Main Level

2nd Floor

floor plan image 2nd Floor

3rd Floor

floor plan image 3rd Floor

Lower Level

floor plan image Lower Level

Plan Details

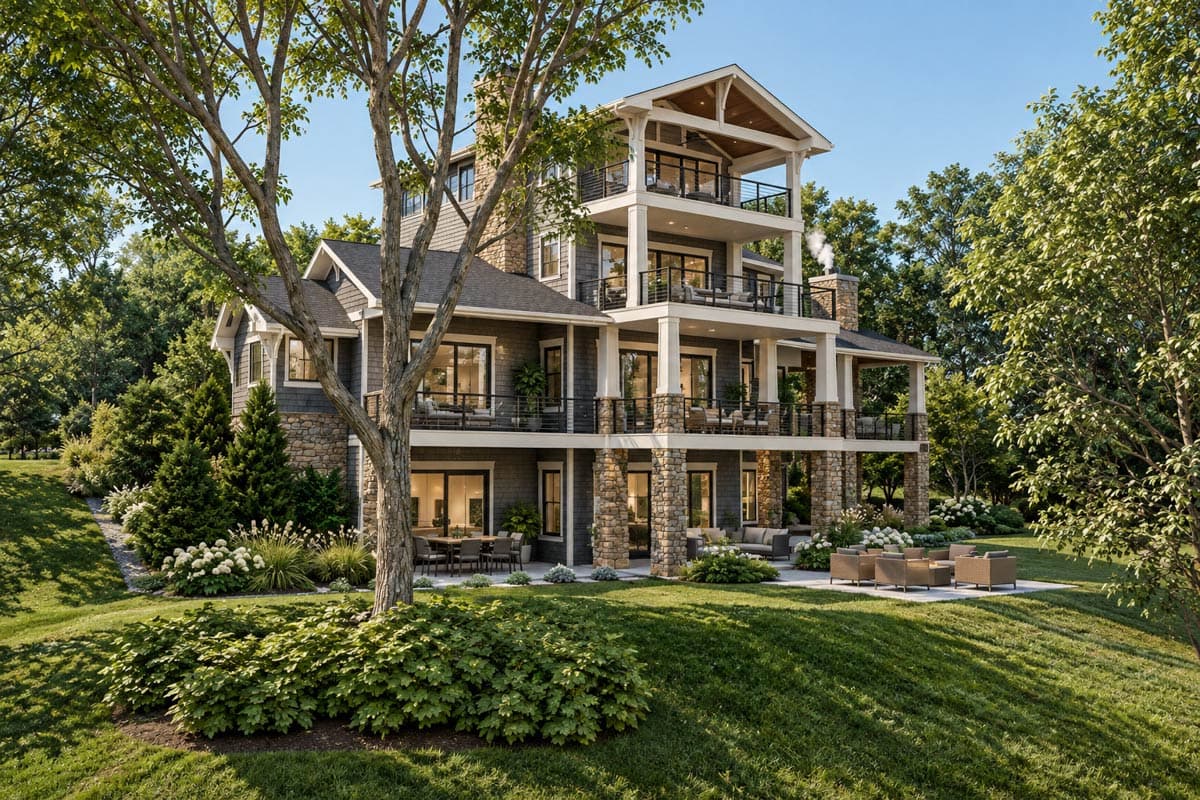

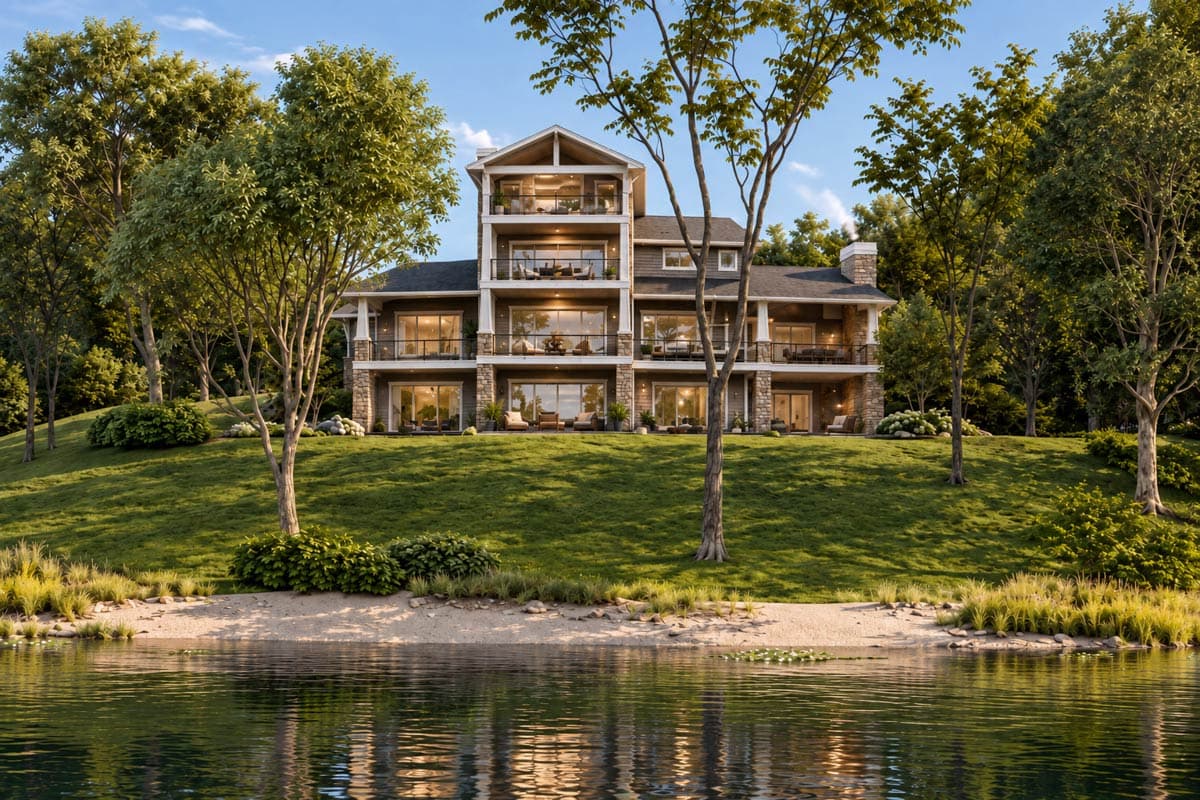

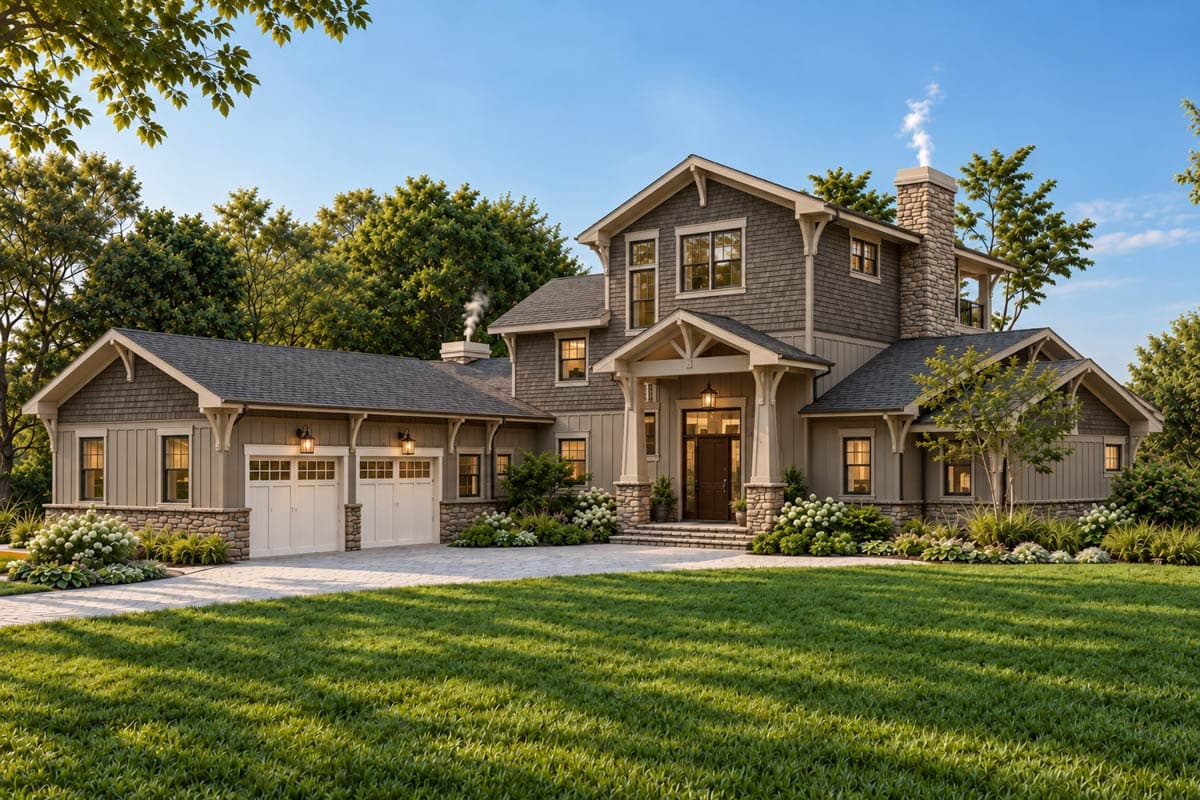

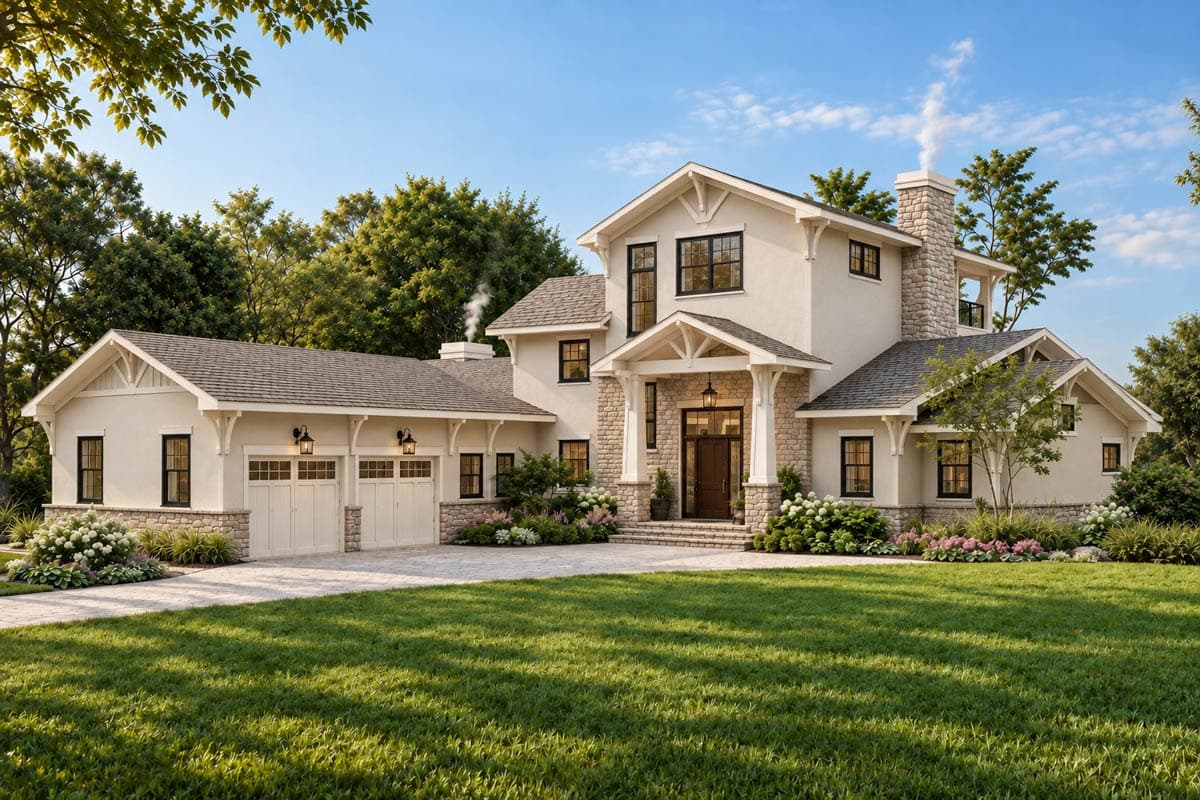

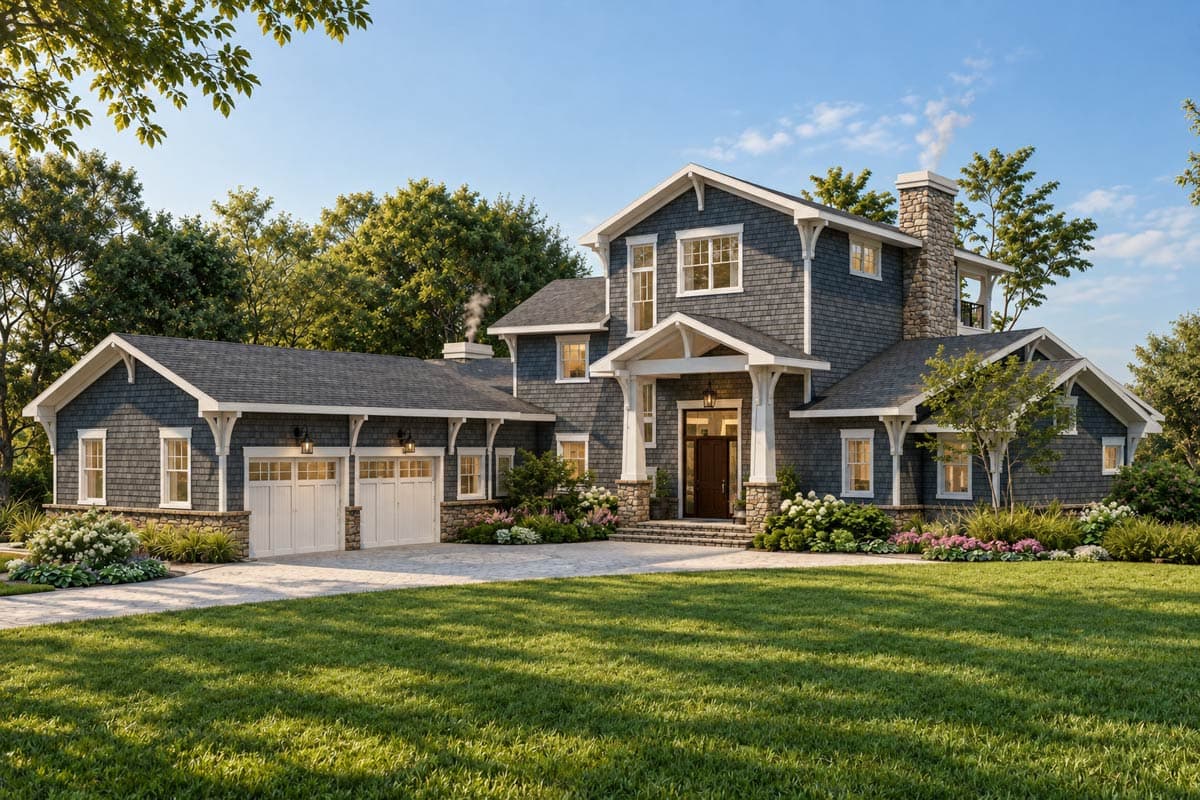

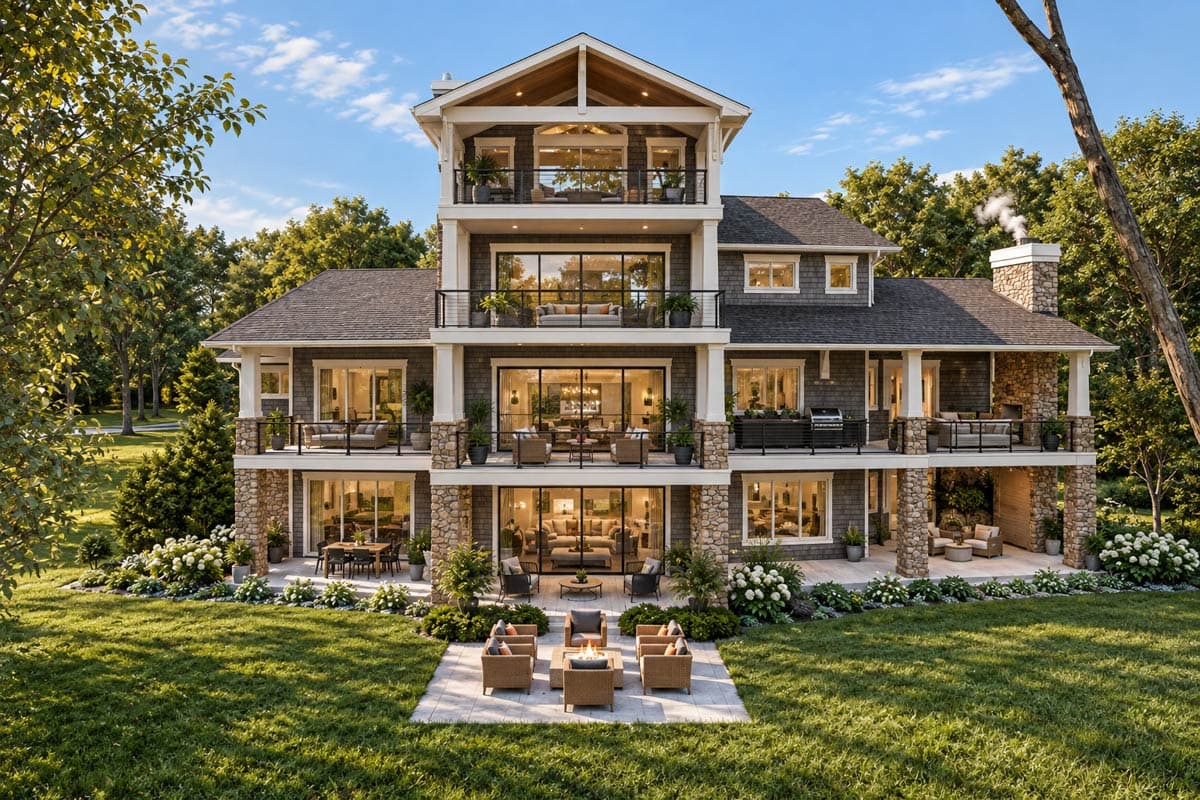

Craftsman details adorn the exterior of this exclusive home design that is perfect for waterfront lots due to the expansive outdoor living space along the rear elevation.

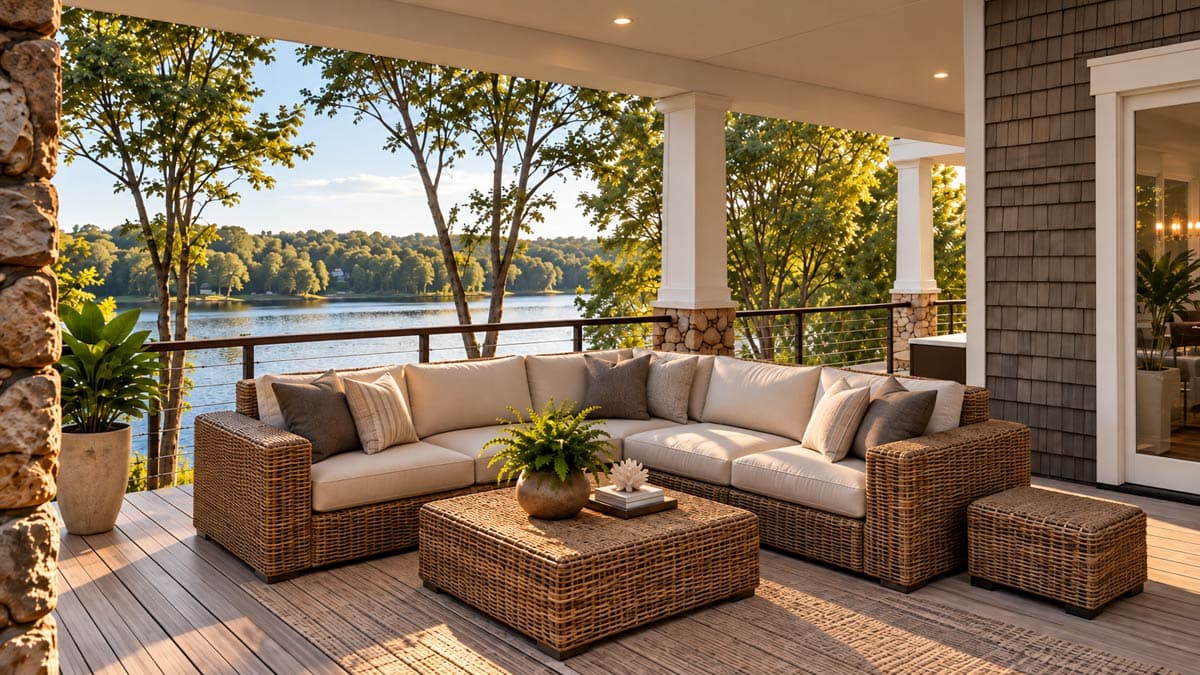

The main level consists of a spacious great room that flows into the island kitchen, a formal dining room, wet bar for entertaining, and guest bedroom that is handicap accessible. Each room overlooks the rear covered porch that is partially screened for outdoor enjoyment.
Take the stairs or elevator to maneuver between floors, and discover the master suite that consumes the second level with its private balcony, dual closets, and 4-fixture bath.
Another level up and you'll find a flexible room that can be used as a library, or fourth bedroom, with porch access, a full bathroom, and wet bar.

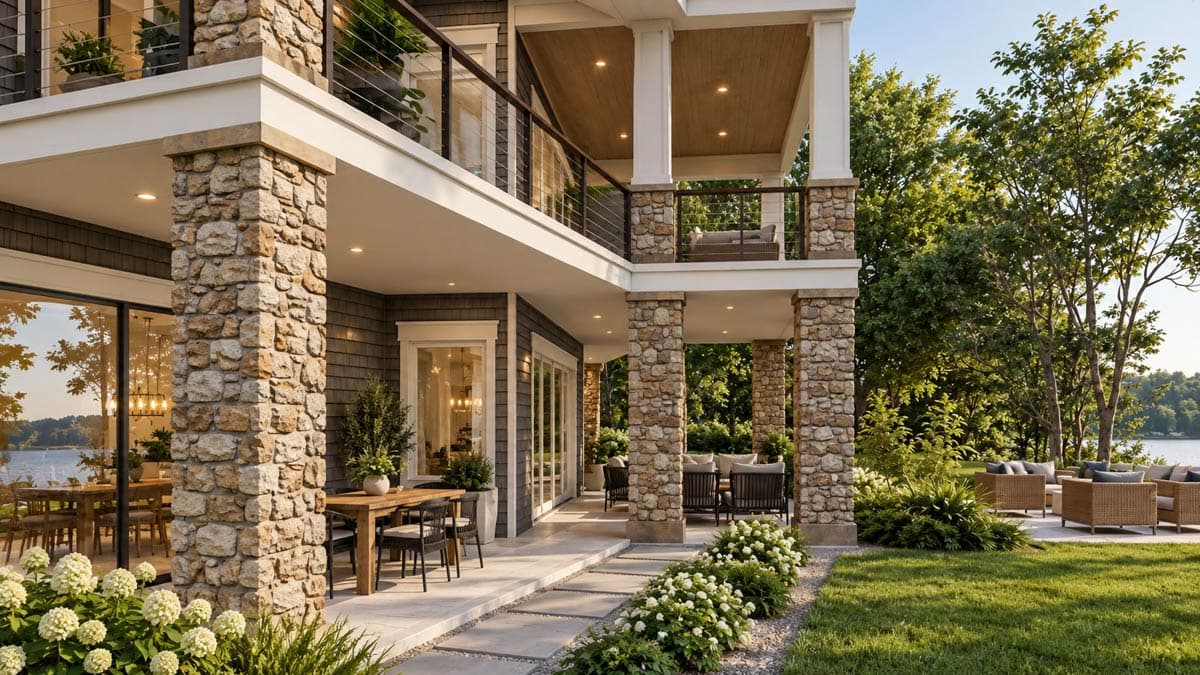

The lower level expands onto a generous covered patio and offers plenty of unfinished storage space, along with a rec room and home office (or man cave).
BUILDING RESTRICTION: This plan may not be built on Lake Norman, NC; Lake Wylie, NC; Mecklenburg Co. NC; Gaston Co. NC; Iredell Co. NC; Catawba Co. NC; Lincoln Co.; York Co. SC; Lancaster Co. SC.

What's Included

Foundation plan
Detailed floor plans
Roof plan
Elevations (all four sides)
Sections
3D model views
Electrical plans
Framing details

What's Not Included

Electrical Plan - handled by your subcontractor to match your individual needs
Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

5,072 sq. ft.

Lower Level

1,236 sq. ft.

1st Floor

2,250 sq. ft.

2nd Floor

1,005 sq. ft.

3rd Floor

580 sq. ft.

Basement Unfinished

1,005 sq. ft.

Porch, Front

120 sq. ft.

Porch, Rear

1,213 sq. ft.

Screened Porch

434 sq. ft.

Deck

98 sq. ft.

Entry

24 sq. ft.

Covered Patio

1,146 sq. ft.

Storage

1,005 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab, Walkout

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

88' 8"

Depth

94' 1"

Max Ridge Height

46' 5"

Garage

Type

Attached

Area

762 sq. ft.

Count

2 Cars

Entry Location

Courtyard

Ceiling Heights

Lower Level

10'

First Floor

10'

Second Floor

9'

Room

Ceiling Type

Height

Bedroom 1

Cathedral

0' 0''

Bath 1

Vaulted

0' 0''

Foyer

Second Story

0' 0''

Bedroom 4

Cathedral

0' 0''

Bath 4

Vaulted

0' 0''

Roof Details

Primary Pitch

5 on 12

Framing Type

Truss

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 2nd Floor

Two Master Suites

Wrap Around Porch

Plan Collections

Lake House Plans
