Plan 24347TW
Welcome Home
Heated S.F.
4,077
Beds
4
Baths
4
Stories
1
Cars
3
Floor Plan

Plan 24347TW

Basement
slide image 0
Main Level
slide image 1

Plan 24347TW

1-800-854-7852

1-262-521-4596

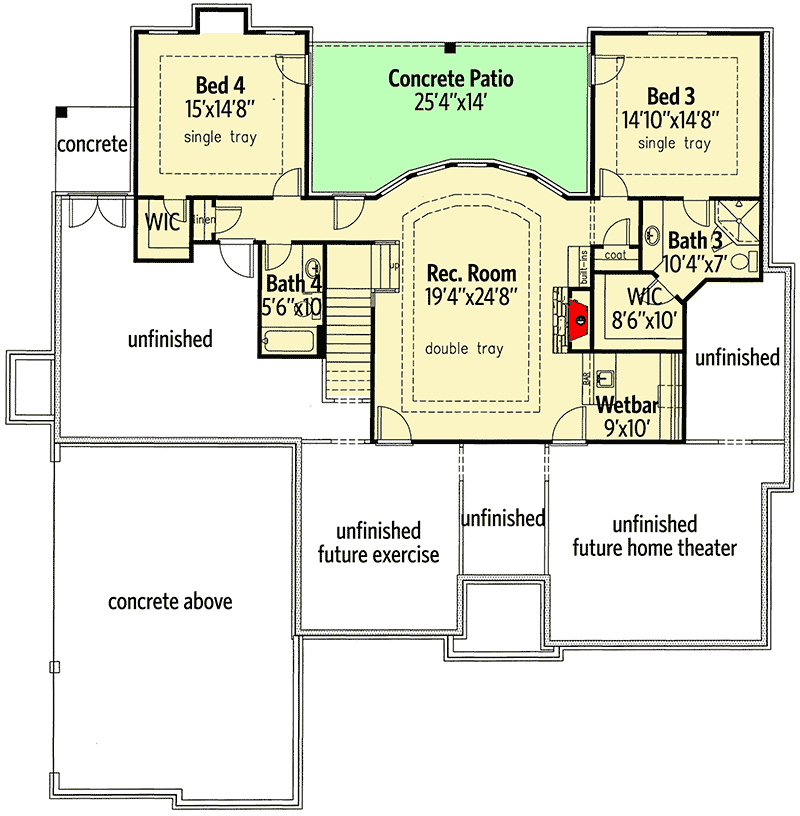

Basement
floor plan image Basement
Main Level
floor plan image Main Level
Plan Details
  • This is a great one level house plan with a lower terrace/finished basement level.
  • An Open and spacious plan, you'll love the spectacular bowed great room with a wall of windows.
  • Bedroom #2 can serve as a guest bedroom, nursery or in-law suite.
  • Kids bedrooms on lower level are convenient to the recreation room. A wet bar/kitchenette is also on this level.
  • This one level ranch with finished lower terrace/finished basement level plan is a great way to gain a lot of square footage but keep your building costs down.
  • NOTE: The crawlspace version comes with the same elevations as the basement version.
What's Included
  • Four elevations (front, rear, right & left) with finish details
  • Fully dimensioned floor plans which include window and door sizes
  • Foundation plan with footing details
  • Roof plan with cornice details
  • General framing details
  • Floor joists layout
  • Electrical layout
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

4,077 sq. ft.

Lower Level

1,380 sq. ft.

1st Floor

2,697 sq. ft.

Basement Unfinished

1,317 sq. ft.

Porch, Front

55 sq. ft.

Porch, Rear

319 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

72' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

821 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Bedrooms - Clustered

In-Law Suite

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection

Square Footage Breakdown

Total Heated Area

4,077 sq. ft.

Lower Level

1,380 sq. ft.

1st Floor

2,697 sq. ft.

Basement Unfinished

1,317 sq. ft.

Porch, Front

55 sq. ft.

Porch, Rear

319 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Foundation Type

Standard Foundations

Crawl, Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

70' 0"

Depth

72' 0"

Max Ridge Height

33' 0"

Garage

Type

Attached

Area

821 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Roof Details

Primary Pitch

12 on 12

Framing Type

Stick

Architectural Style

European

Traditional

Special Features

Bedrooms - Clustered

In-Law Suite

Master Suite - 1st Floor

Mudroom

Wet Bar

Plan Collections

Luxury

Photo Gallery

Premium Collection
