Plan 31804DN

World Class

Heated S.F.

8,001

Beds

5

Baths

5.5

Stories

2

Cars

3

Floor Plan

Main Level

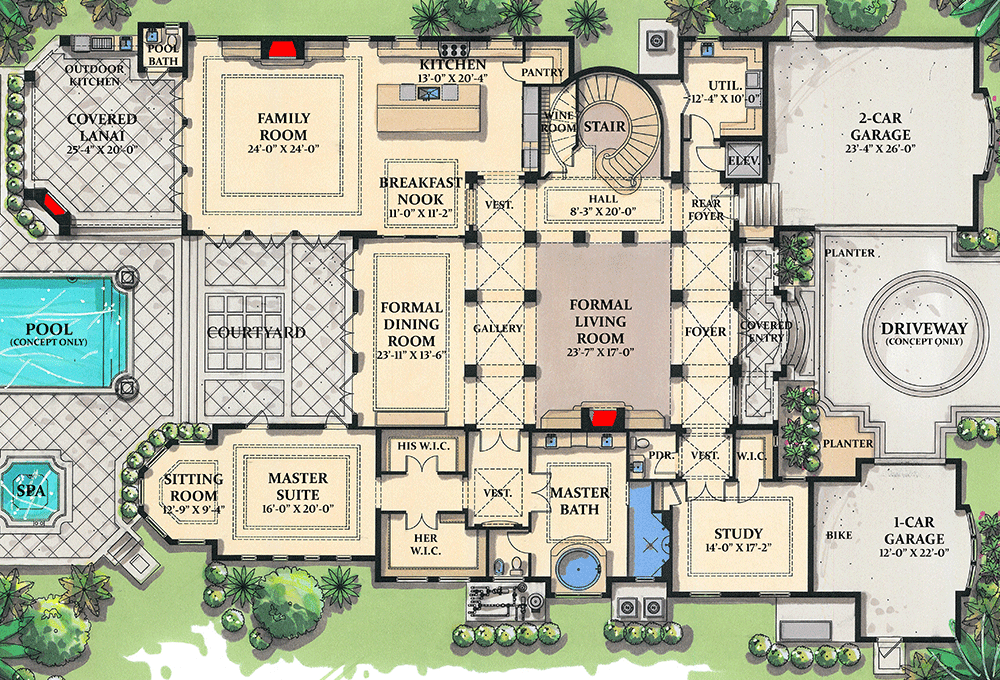

floor plan image Main Level

2nd Floor

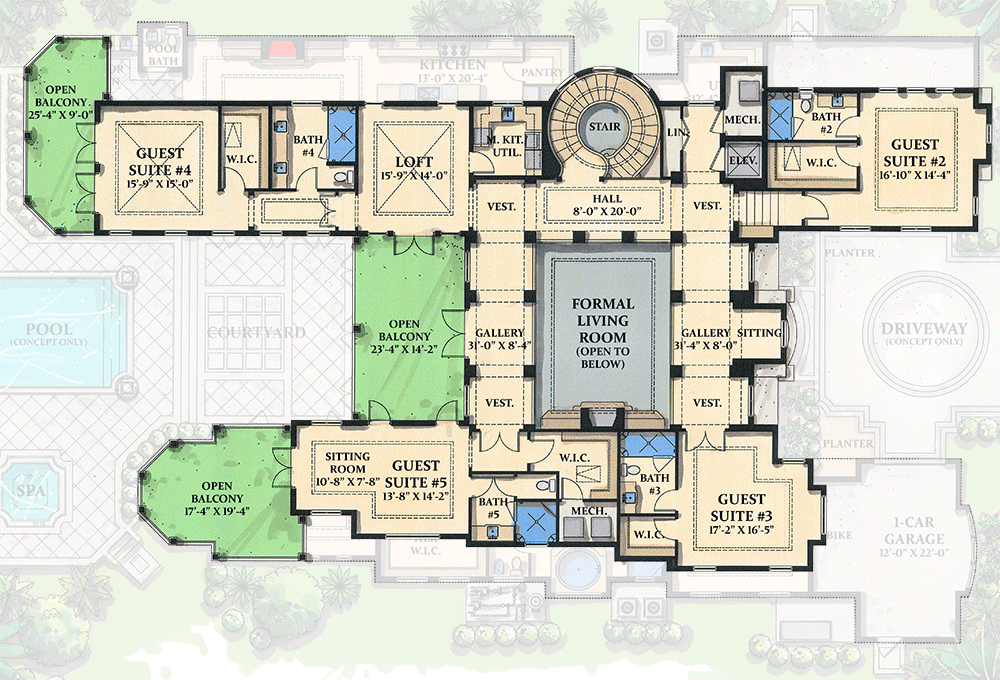

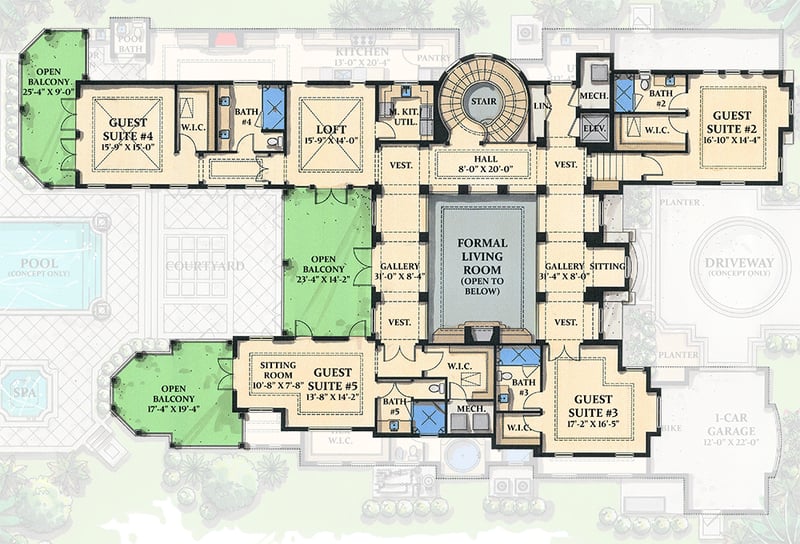

floor plan image 2nd Floor

Plan Details

No corners cut in this elegant home plan. The upper floor is for family (or guests) to sleep and relax in. Each suite has its own bath, walk-in closet and privacy. Suites 4 and 5 enjoy private balcony access and inside there are views to the living room below on three sides.
On the main floor the master suite has a large sitting room and access to the pool deck.
The covered lanai has an outdoor kitchen, pool bath and access to the family room through 3 setes of French doors.
The upstairs is serviced by the graceful stair off the side hall and by an elevator as well.
Related Plan: Downsize slightly with house plan 31807DN (7,395 sq. ft.).

What's Included

Slab Plan
Floor Plans with Notes and Dimensions
Door and Window Schedules
Electrical Plans
Ceiling Plans
Elevations of All Sides
Roof Plans
Building Sections
Wall Sections
Fastener Requirements

What's Not Included

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Modify This Plan

Need to make changes? We will get you a free price quote within 1 to 3 business days.

Square Footage Breakdown

Total Heated Area

8,001 sq. ft.

1st Floor

4,591 sq. ft.

2nd Floor

3,410 sq. ft.

Entry

128 sq. ft.

Balcony / Veranda

804 sq. ft.

Lanai

462 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

Block / CMU (main floor)

Dimensions

Width

78' 1"

Depth

122' 8"

Max Ridge Height

32' 6"

Garage

Type

Attached

Area

1072 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

12'

Second Floor

9'

Room

Ceiling Type

Height

Living Room

Tray

24' 0''

Family Room

Tray

0' 0''

Study

Tray

0' 0''

Master Bedroom

Tray

0' 0''

Roof Details

Primary Pitch

8 on 12

Framing Type

Truss

Architectural Style

Special Features

Butler Walk-in Pantry

Laundry - Main Level

Master Suite - 1st Floor

Master Suite - 2nd Floor

Master Suite - Sitting Area

Outdoor Fireplace

Outdoor Kitchen

Two Master Suites

Two Story Great Room

Plan Collections

Premium Collection
