Plan 62416DJ

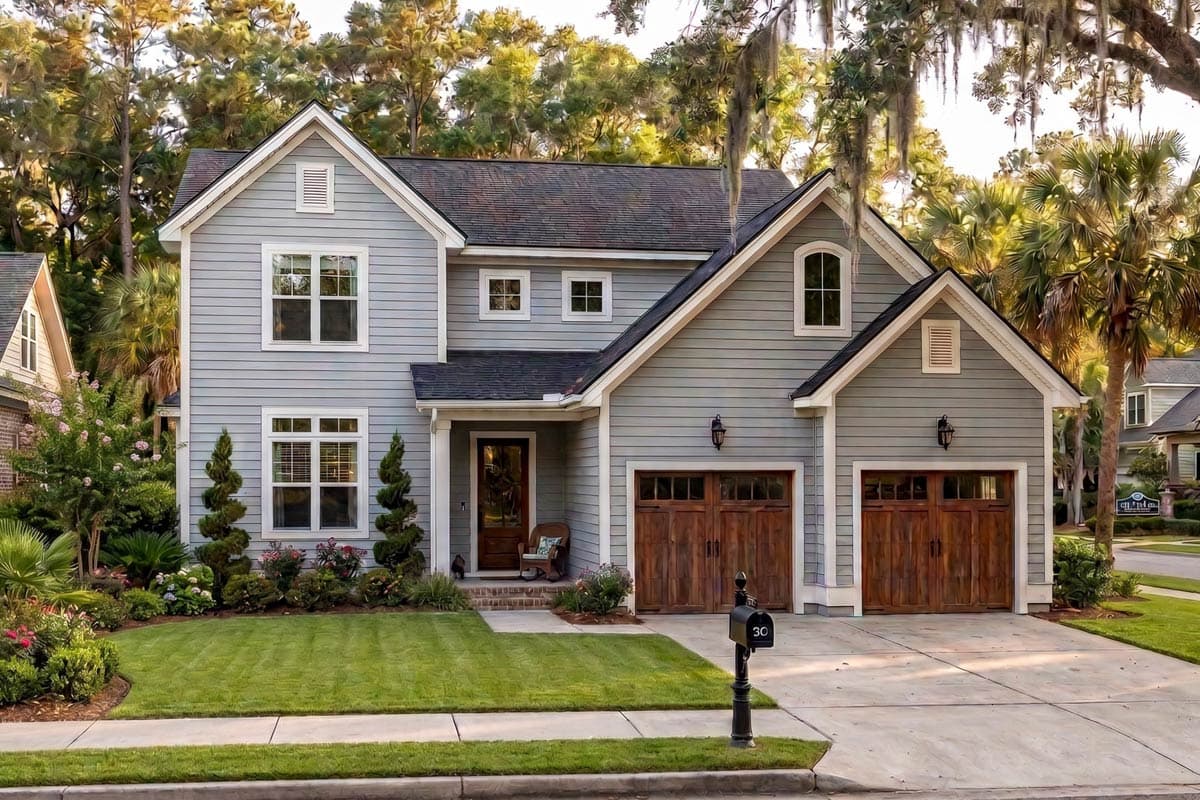

3-Bedroom Traditional House Plan with Informal Layout - 1641 Square Feet
Heated S.F.
1,641
Beds
3
Baths
2.5
Stories
2
Cars
2
Photos
Floor Plan

Plan 62416DJ

Main Level
slide image 0
2nd Floor
slide image 1

Plan 62416DJ

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
2nd Floor
floor plan image 2nd Floor
Plan Details
  • Interior columns define the living room and allow views into the large kitchen with a big island.
  • There is no formal dining room in this home, instead yo get one big space shared with the kitchen.
  • Upstairs, the three bedrooms include a walk-in closet for bedroom 2 and a private bathroom and tray ceiling for the master suite.
  • Gain an extra 310 square feet by finishing off the unfinished storage room.
Build Gallery
See and hear from existing customers with real photos, videos, and reviews.
build gallery item - House Plan 62416DJ Comes to Life in New York

House Plan 62416DJ Comes to Life in New York

37

Photos

What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section (if applicable)
  • Cabinets Elevations (if applicable)
View Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Contact Us

Square Footage Breakdown

Total Heated Area

1,641 sq. ft.

1st Floor

854 sq. ft.

2nd Floor

787 sq. ft.

Porch, Front

48 sq. ft.

Storage

310 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

41' 8"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

547 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,641 sq. ft.

1st Floor

854 sq. ft.

2nd Floor

787 sq. ft.

Porch, Front

48 sq. ft.

Storage

310 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

44' 0"

Depth

41' 8"

Max Ridge Height

25' 5"

Garage

Type

Attached

Area

547 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Bedrooms - Clustered

Bonus Room

Formal Dining

Laundry - Main Level

Master Suite - 2nd Floor

Plan Collections

Photo Gallery
