Plan 31077D
Split Bedroom Hill Country
Heated S.F.
3,034
Beds
4
Baths
3.5
Stories
1
Cars
3

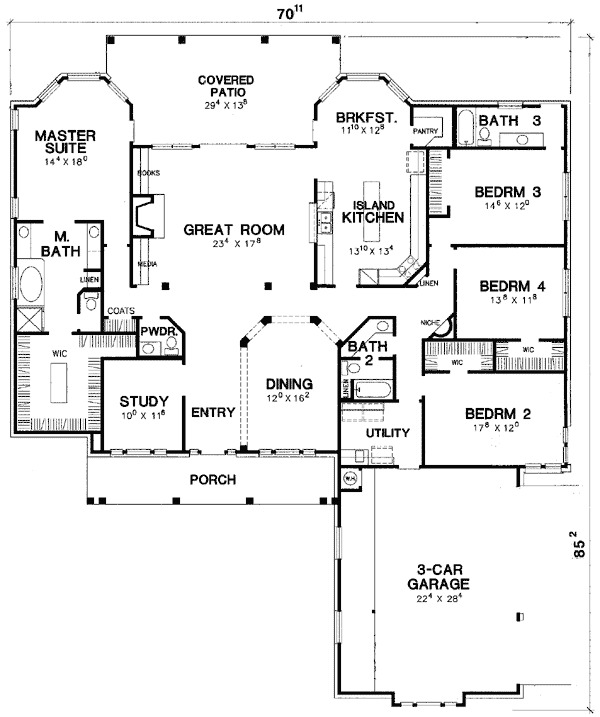

Floor Plan

Plan 31077D

Main Level
slide image 0

Plan 31077D

https://www.architecturaldesigns.com

1-800-854-7852

1-262-521-4596

Main Level
floor plan image Main Level
Plan Details
  • This 4 bedroom hill country house plan has a split bedroom layout maximizing privacy for the owner's of the house. A bayed sitting area in the master suite lets in natural light and afford access to the covered patio.
  • From the foyer you'll enjoy views extending all the way through to the patio. Flanking the foyer you'll find the study and dining room.
  • The kitchen has a pass-through counter to the great room and easy access to both the breakfast and dining rooms. A roomy walk-in pantry is a nice touch.
  • A display niche dresses up the hallway as you turn to enter go to bedrooms 3 and 4.
  • IMPORTANT NOTE: Due to state regulations, the CAD version may not be sold to residents of Alabama, Louisiana, New Mexico, Tennessee and Texas.  If residing in any of the aforementioned states, the PDF version does not come with a release to make plan modifications. Please contact us for more information.
What's Included

  • Foundation plan
  • Fully dimensioned floor plan
  • Four elevations (front, rear, left & right)
  • Electrical plan
  • Building cross section
  • Roof framing
  • Ceiling framing
  • Cabinet elevations

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
$1,995
What's included?
Plan Set
PDF - Single-Build
$1,995
Foundation
Slab
+$0
Options
Optional Add-Ons
+$0
Best Price Guarantee
Cost-to-Build Report
Still deciding? Calculate the cost to build this house in your area.
Order a Cost-to-Build Report
Modify This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Modify This Plan

Square Footage Breakdown

Total Heated Area

3,034 sq. ft.

1st Floor

3,034 sq. ft.

Basement Unfinished

3,034 sq. ft.

Porch, Front

185 sq. ft.

Covered Patio

356 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

3

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Optional Foundations:

Basement, Crawl

Request a different foundation

Exterior Walls

Exterior Walls

2x4

Request a different wall type

Dimensions

Width

70' 11"

Depth

85' 2"

Max Ridge Height

25' 0"

Garage

Type

Attached

Area

677 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

7 on 12

Framing Type

Stick

Architectural Style

Country

Hill Country

Traditional

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Library/Study
